Magnet in housing, diameter 10 mm, with screw socket M3 - neodymium
Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Accessories
External diameter
10 [mm]
Height
4,5 [mm]
Overall height together with sleeve
11,5 [mm]
Thread type
threaded bush, M3
Magnet type
Neodymium
Maximal hoisting capacity
3 [kg]
Coating
Nickel-plated (NiCuNi)
Maximum working temperature
≤ 80 [°C]
Weight
3,8 [g]
Performance parameters

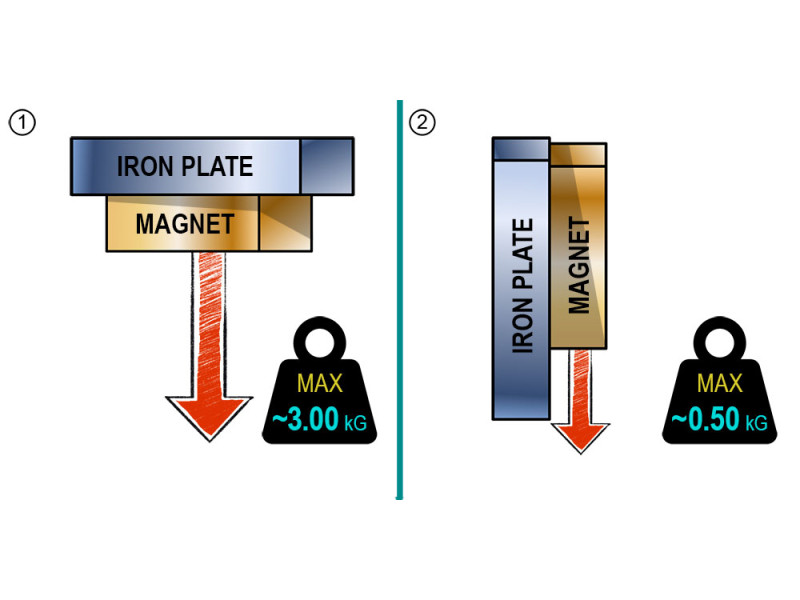

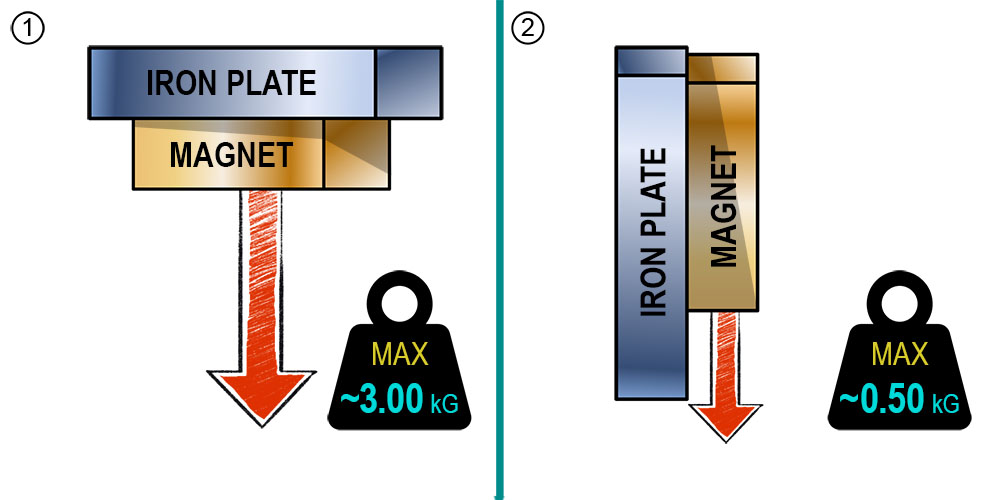

The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.
Neodymium pot magnet with screw socket D10x4,5xM3x11,5N
This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.
Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. In the housing is screw socket with internal thread for attaching hooks or eye bolts. Due to the casing, the magnet is single-sided. It has been protected against corrosion by nickel plating. The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface. You can attached magnet to surfaces made of ferromagnetic materials.
