Magnet in housing, diameter 40 mm, with screw socket M6 – neodymium

Magnet in housing, diameter 40 mm, with screw socket M6 – neodymiumMagnet in housing, diameter 40 mm, with screw socket M6 – neodymium€3.88

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €3.88 €4.77
2 pcs. €3.29 €4.05
14 pcs. €2.92 €3.59
50 pcs. €2.44 €3.00
Quantity
Available Quantity: 81 pcs.

Ask a question


Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Accessories
Performance parameters

External diameter

40 [mm]

Height

8,5 [mm]

Overall height together with sleeve

15,5 [mm]

Thread type

threaded bush, M6

Magnet type

Neodymium

Maximal hoisting capacity

60 [kg]

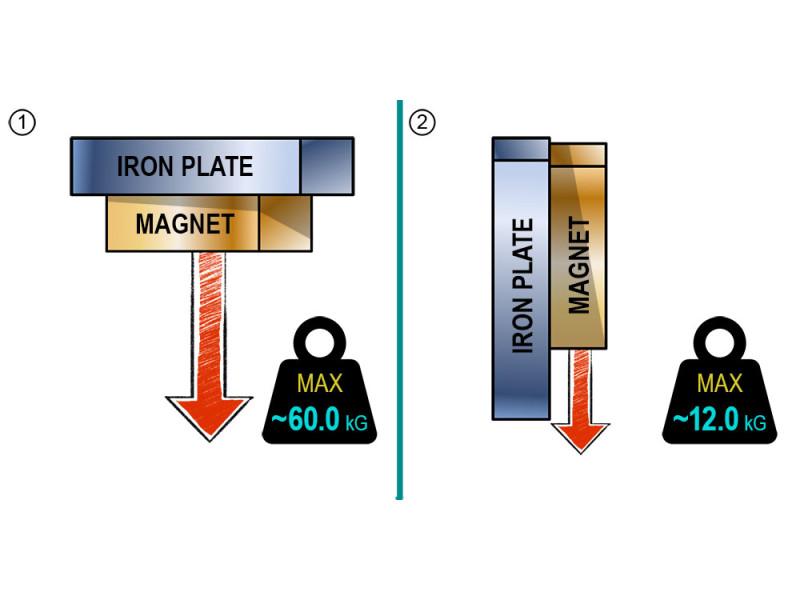

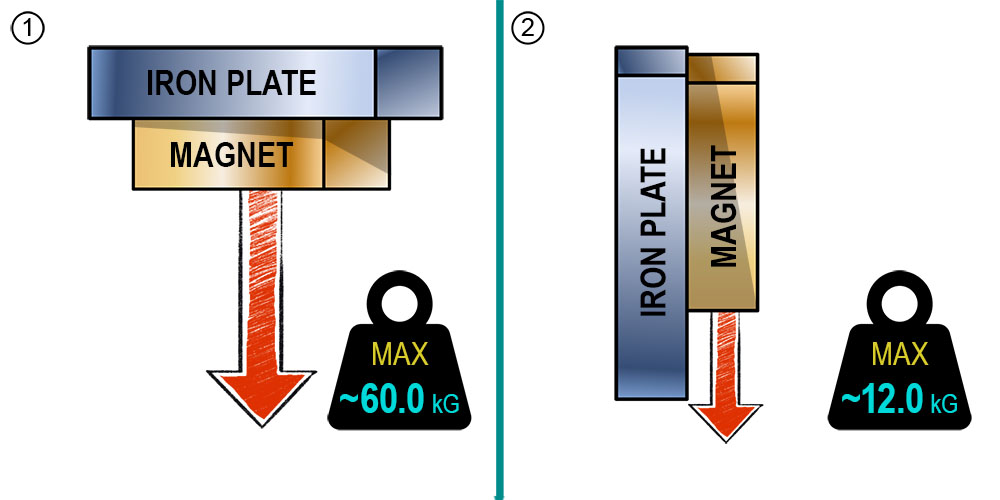

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

Weight

84,5 [g]


Neodymium pot magnet with screw socket D40x8,5xM6x15,5N


This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. In the housing is screw socket with internal thread for attaching hooks or eye bolts. Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.

um40x8,5xm6wewnx15,5n
