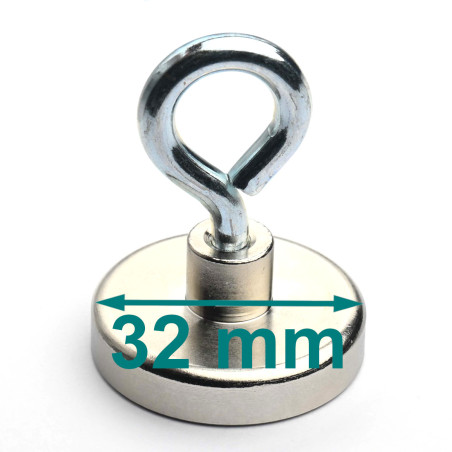

Magnet in housing with eye hook, diameter 32 mm, with screw socket M5 – neodymium

Magnet in housing with eye hook, diameter 32 mm, with screw socket M5 – neodymiumMagnet in housing with eye hook, diameter 32 mm, with screw socket M5 – neodymium€4.95

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €4.95 €6.09
Product unavailable

Ask a question


Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Accessories
Performance parameters

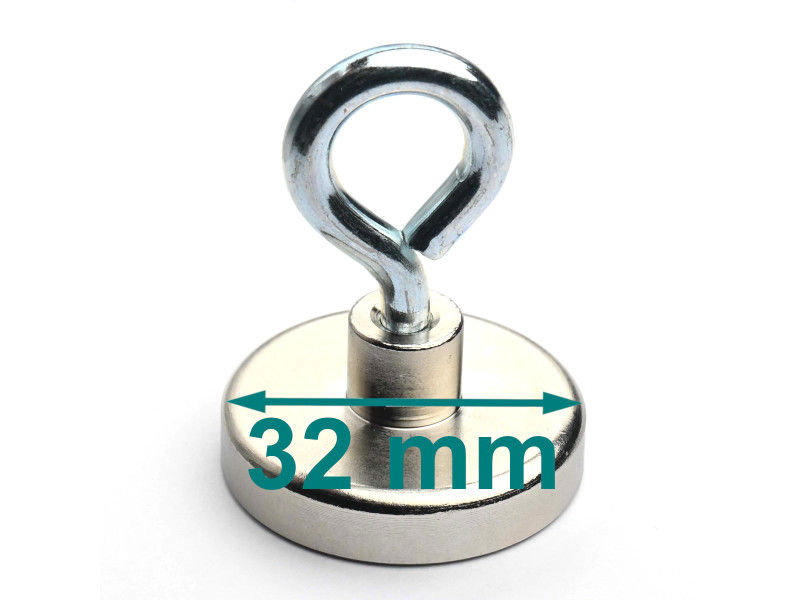

External diameter

32 [mm]

Height

7 [mm]

Overall height together with sleeve

15,5 [mm]

Thread type

threaded bush, M5

Magnet type

Neodymium

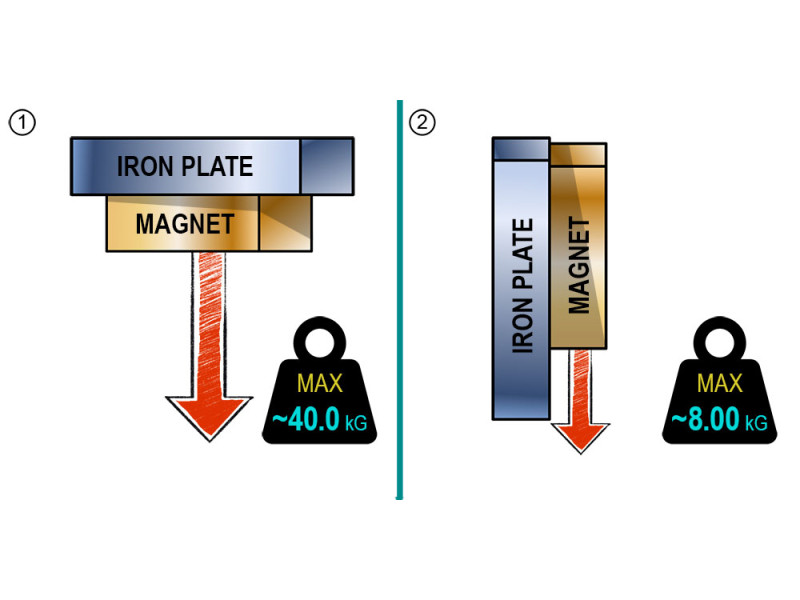

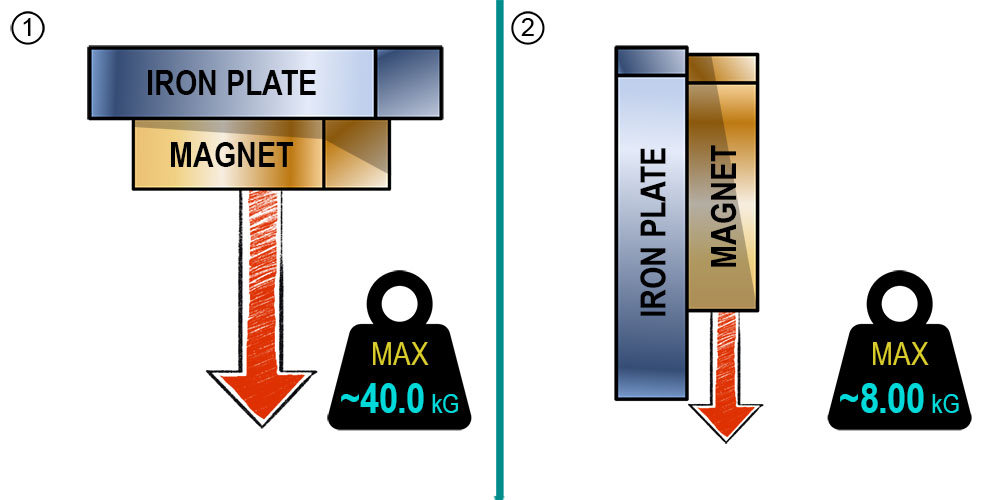

Maximal hoisting capacity

40 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

Weight

45,9 [g]

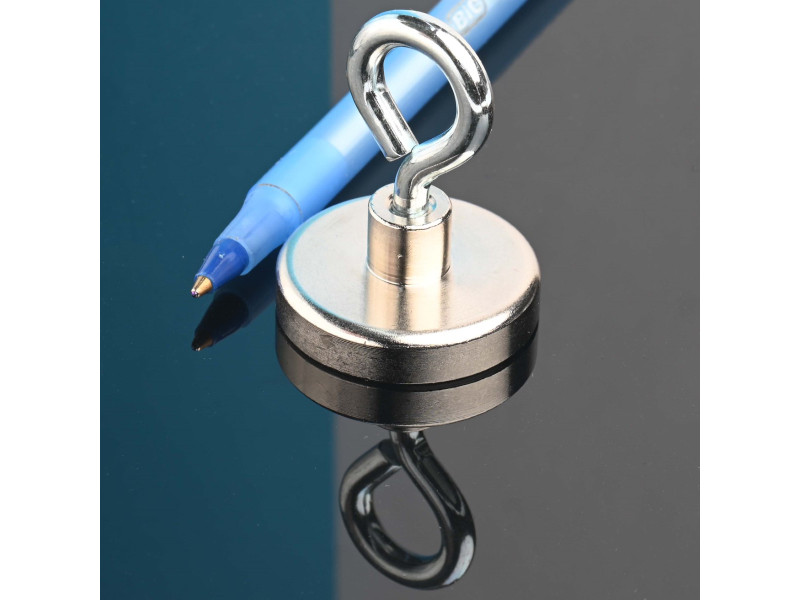

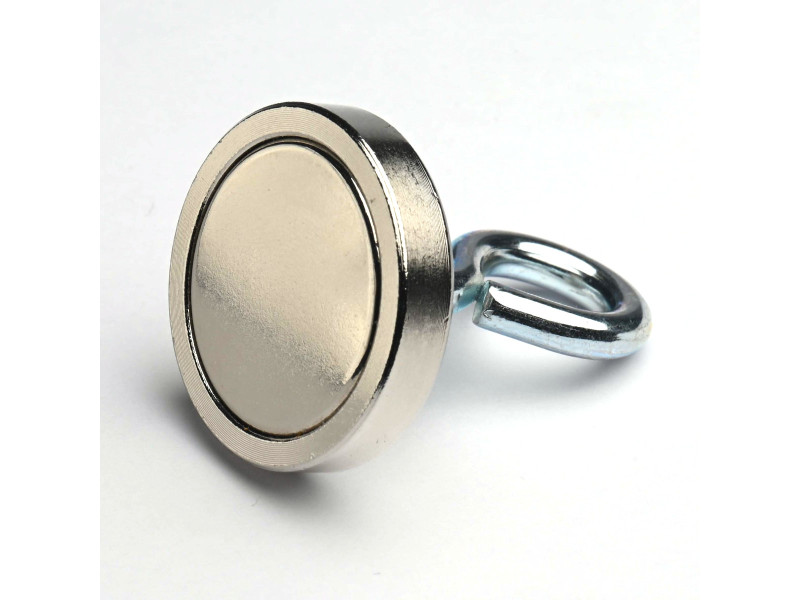

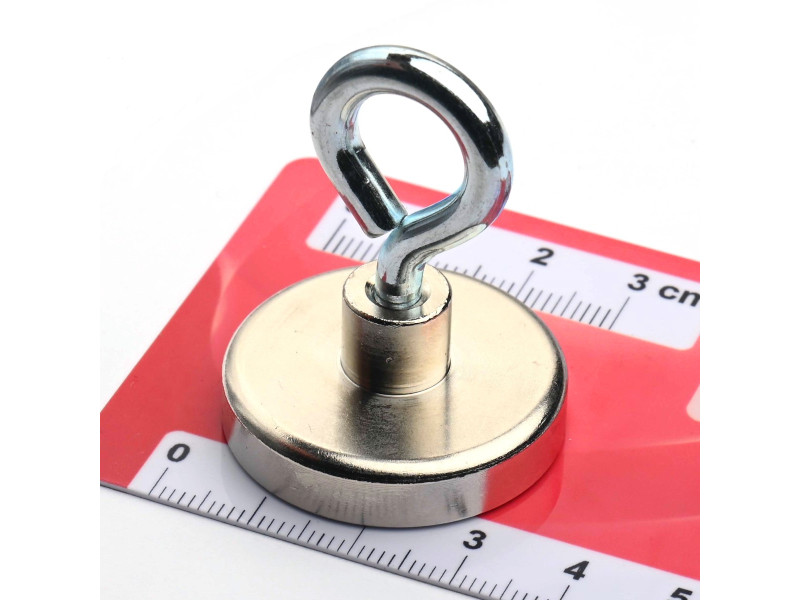

Neodymium pot magnet with eyelet D32x7xM5x41N


This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. In the housing is screw socket with internal thread for attaching hooks or eye bolts. Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.

UMU32X7UCHO41N
