Manufacturer
Enes Magnesy
External diameter
210 [mm]
Length
405 [mm]
overall length together with thread
405 [mm]
Thread type
external
Thread length
35 [mm]
M16
Magnet type
Ferrite
Maximum working temperature
250 [°C]
Housing
stainless steel, AISI 304 / EN 1.4301, approved for contact with food
Range
max. 85 [mm]
Weight
49 [kg]
Performance parameters

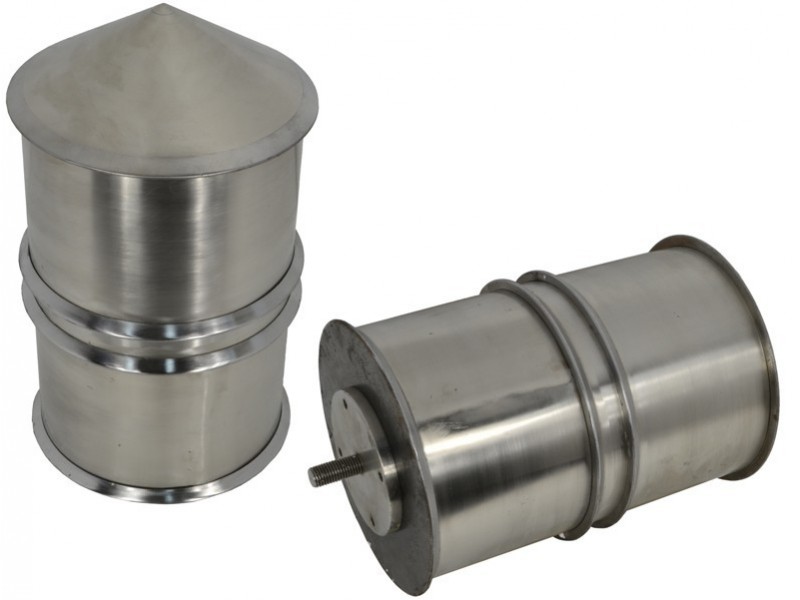

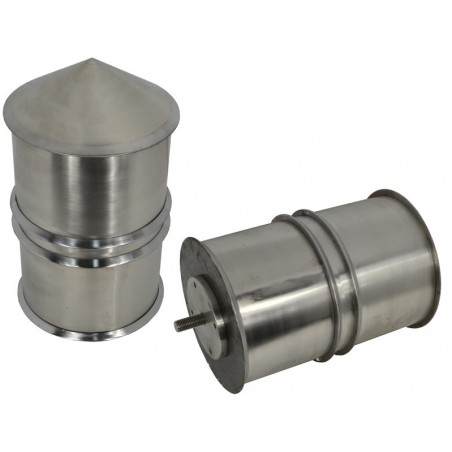

Bullet magnets serve for catching magnetically soft elements (iron filings, bolts, etc.) from both loose and liquid materials. They are intended for work in silos and pipelines. Moreover, they may be useful in food industry (as a version closed in acid-proof steel housing apart from magnet legs, which are made from mild steel), as well as in plastics processing, ceramic and many other industries.
A magnetic cone made of acid-proof steel contains a magnetic system assembled with ferrite magnets. It is a surface of the four magnet legs incorporated into the cone, found in its bottom, top and central parts, which is magnetically active.
On commission we are ready to provide conical magnetic separators with dimensions chosen by Clients. Magnetic parameters, range of activity and dimensions are adjusted according to Client needs and expectations.
Magnetic field in the center of surface of the upper magnetic pole is ~0,360 [T].
Magnetic field in the center of surface of the central magnetic poles (max.) is ~0,460 [T].
Magnetic field in the center of surface of the lower magnetic pole is ~0,280 [T].
In the magnetic cone sintered ferrite magnets were used. The maximum working temperature for the magnetic cones with ferrite magnets is approx. 250o[C].
Weight of cone is: ~49,0 [kg]
SMS210X370_M16X40F
