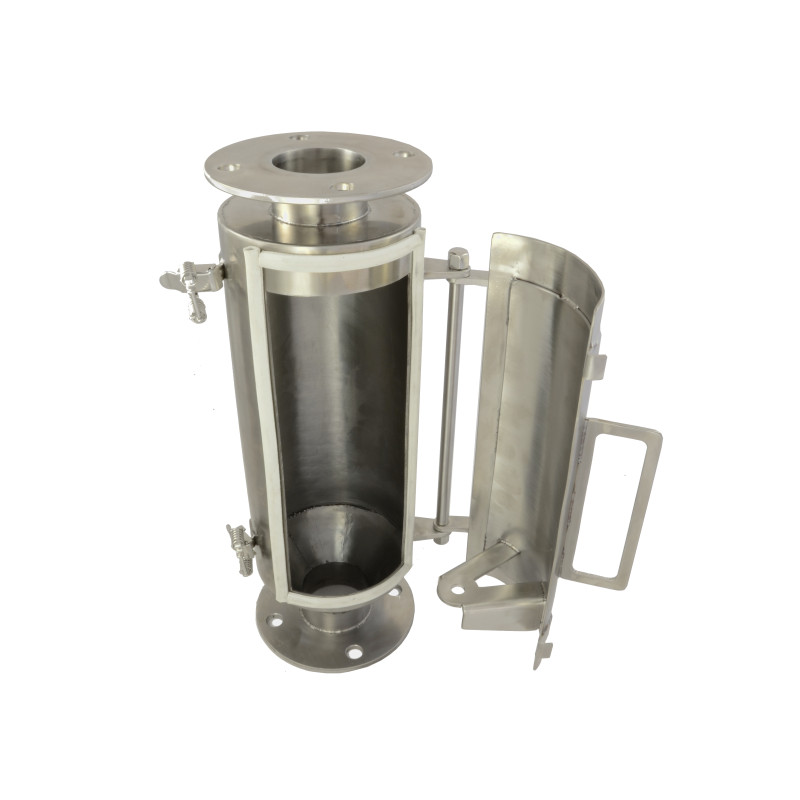

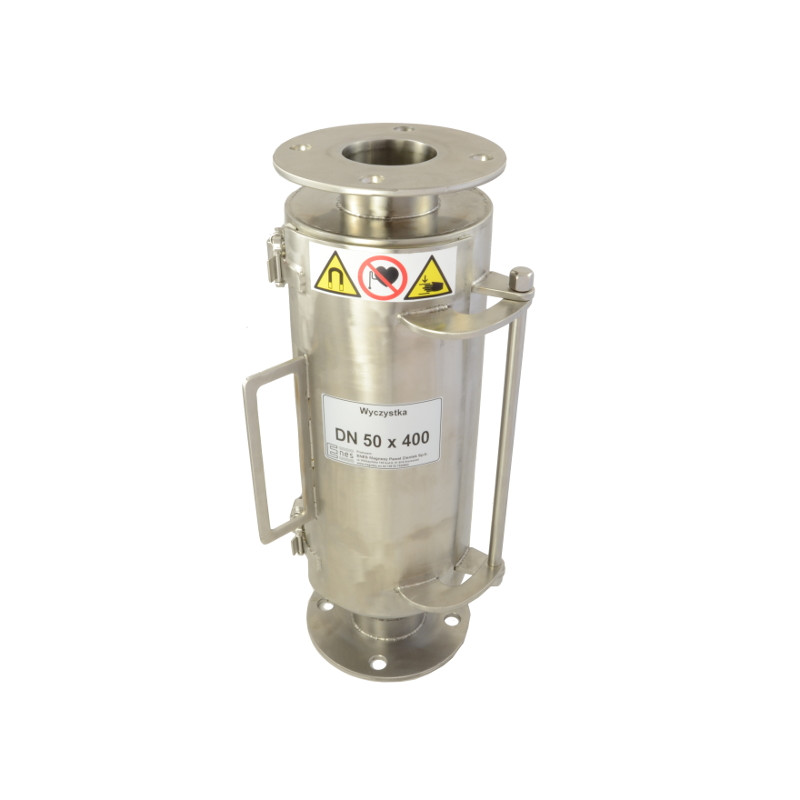

Cleaning hatch DN50x400
Lowest price from 30 days before the promotion: €1112.99 Net (€1368.98 Gross)
Manufacturer
Enes Magnesy
Internal diameter
50 [mm]
Height
400 [mm]
Weight
4.5 [kg]
Performance parameters
Cleaning hatch DN50x400
The cleaning hatch is a component that forms part of the pipeline in which the magnetic cone is to operate.
The cleaning hatch is fitted with a socket featuring a Ø10 hole for mounting the cone. This cleaning port is designed for Ø63 cones:
1. Conical (tubular) magnetic separator 63 x 200 / 220 / M10 / N-KO
2. Conical (tubular) magnetic separator 63 x 176 / 206 / M10 / N
The nominal flange diameters of the cleaning hatch correspond to the nominal flange diameters of DN50. The height of the cleaning hatch is 400 mm. The entire unit is made of AISI 304 (EN 1.4301) acid-resistant steel and is approved for contact with food.
The weight of the cleaning hatch is: ~4.4 [kg]
The weight of the cleaning hatch is: ~4.4 [kg]
Magnetic cones are used to capture soft magnetic particles (iron filings, screws, etc.) from both bulk and liquid materials. They are designed for use in silos and pipelines. They can be used in the food industry (version 1 – made with a stainless steel housing), as well as in plastics processing, ceramics and many other sectors.
On special request, we manufacture cones and flanges in various sizes and with different mounting options
(e.g. JACOB standards, Tri-Clamp, etc.) to suit our customers’ needs.
WYCZYSTKADN50X400
2 Items
Specific References
- EAN13
- 5906236809040
