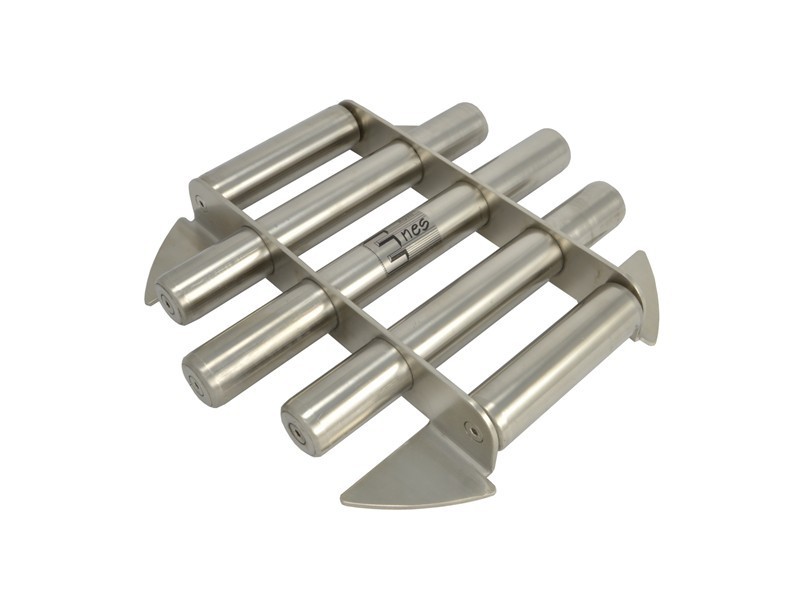

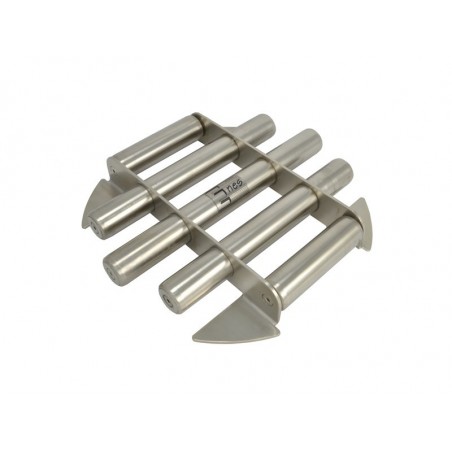

One-level magnetic grate for funnel phi 340 / N52

Of	Price Net	Price Gross
1 pcs.	€1239.29	€1524.33

Product unavailable

Made-to-order product

Ask a question

Description

Manufacturer: Enes Magnesy
External diameter: 340 [mm]
Height: 50 [mm]
Magnet type: Neodymium
Maximum magnetic field over the middle poles: 0,91 [T]
Flow surface: 430,8 [cm²]
Number of magnetic bars: 5
Maximum working temperature: ≤ 60 [°C]
Housing: stainless steel, AISI 304 / EN 1.4301, approved for contact with food
One-level: yes
Weight: 6 [kg]

Separation magnetic grates are used for catching magnetically soft elements (iron filings, bolts, etc.) from loose materials (powders, granulated products, grains). They may be of use in food industry (as a version closed in acid-proof steel AISI / EN 1.4301, as well as in plastics processing, ceramic an many other branches of industry.

Magnetic grate made of acid-proof steel contains a magnetic system assembled with neodymium magnets. It is a surface of the three incorporated into the separator magnetic filter bars of 32 mm in diameter which is magnetically active.

This product is not waterproof. It should not be used in contact with water (or other water-based liquids) or in environments with high humidity.

On commission we are ready to provide magnetic separators with dimensions chosen by Clients.
Magnetic parameters, range of activity and dimensions are adjusted according to Client needs and expectations.

Magnetic field over midpoles on surface of protection tube of the magnetic filter bar is min. 0,910 [T].

In the magnetic grate sintered neodymium magnets were used.
Max. working temperature for the magnetic grates with neodymium magnets is approx. 60o[C].

Caution! A careless handling can cause serious injury to hands !

Weight of grate is: ~6,0 [kg]

The table below shows our full range of hopper grates with a 60º feed angle.
(other dimensions available on request):

Type of grate....	External diameter D [mm]	Diameter (on height of bar axis) d [mm]	Grate height [mm]	Number of bars [pcs.]	Magnetic induction on the surface of bar [T]	Max. work temperature [ºC]	Weight [kg]
fi 130/100/N52	130	100	33	3 x ø18	0,650	60	0,5
fi 160/125/N52	160	125	50	2 x ø18 1 x ø25	0,650 0,820	60	0,8
fi 190/150/N52	190	150	50	2 x ø25 1 x ø32	0,850 0,900	60	1,5
fi 240/200/N52	240	200	50	3 x ø32	0,910	60	2,7
fi 280/240/N52	280	240	50	4 x ø32	0,910	60	3,8
fi 340/290/N52	340	290	50	5 x ø32	0,910	60	6,0
fi 390/350/N52	390	350	50	6 x ø32
