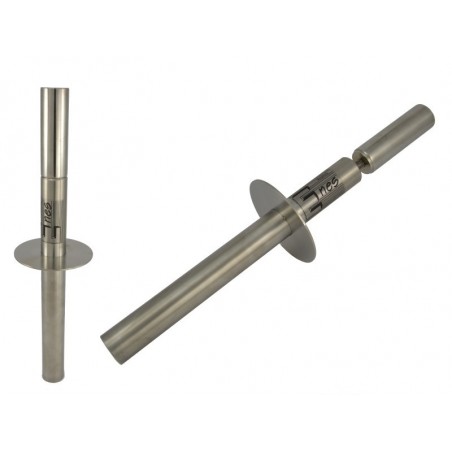

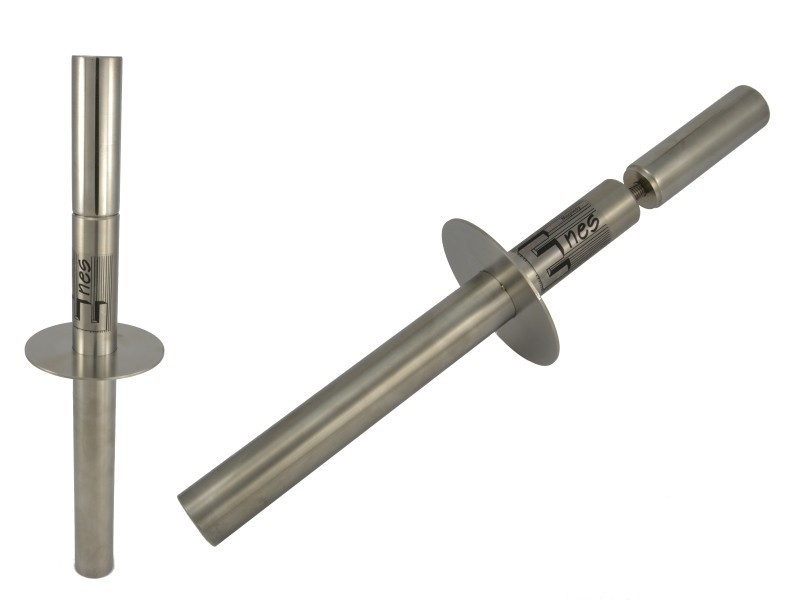

Magnetic filter bar with facilitated cleaning 32 x 400/200 / N52

Magnetic filter bar with facilitated cleaning 32 x 400/200 / N52

Magnetic filter bars with facilited cleaning are used to move, measure out or catch small magnetic soft parts (shavings, screws, nails, etc).
They may be used in metal and automobile workshops, factories, warehouses or stores, so wherever there is with small steel parts to deal.

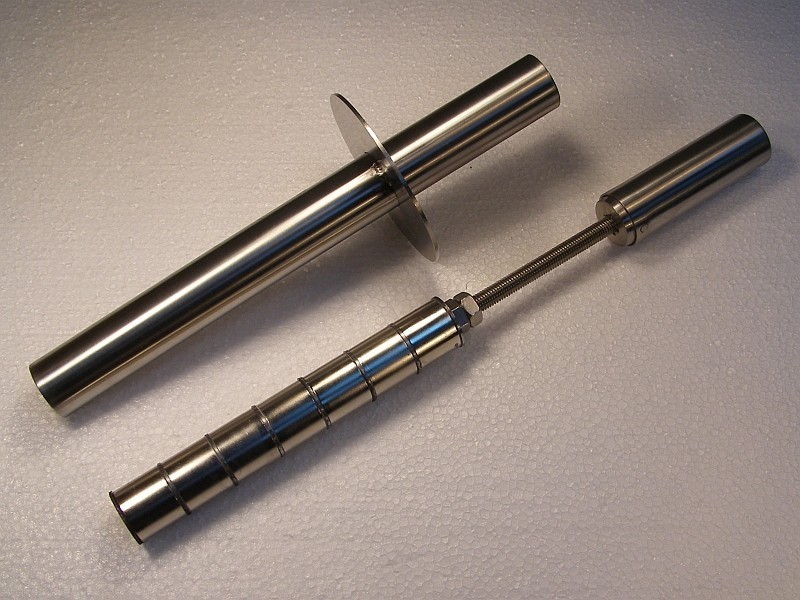

Enabling and releasing the magnetic field is a result of lowering or lifting the magnetic element in a bar case with diameter of 32 mm.
The magnetic filter bar is closed in a housing made of (AISI 304 / EN 1.4301) acid-proof steel. In this way the magnet is not exposed to impacts.

In the magnetic filter bar sintered neodymium magnets were used.
The maximum working temperature for magnetic filter bars involving neodymium magnets is 60o[C].
Magnetic field on surface of the magnetic pole (max.) is ~8000 Gs +/-5 % = 0,800 [T].

Weight: 1,9 [kg]
