Manufacturer
Enes Magnesy
External diameter
25 [mm]
Length
200 [mm]
Magnet type
Neodymium
Maximum magnetic field over the middle poles
0,25 [T], 2500 [Gs] +/- 5%
Maximum working temperature
≤ 80 [°C]
Housing
stainless steel, AISI 304 / EN 1.4301, approved for contact with food
handling mode
manual use
with an easy cleaning
yes
Weight
310 [g]
Performance parameters
Magnetic induction is measured with a teslameter with a hall effect flat probe.
Description

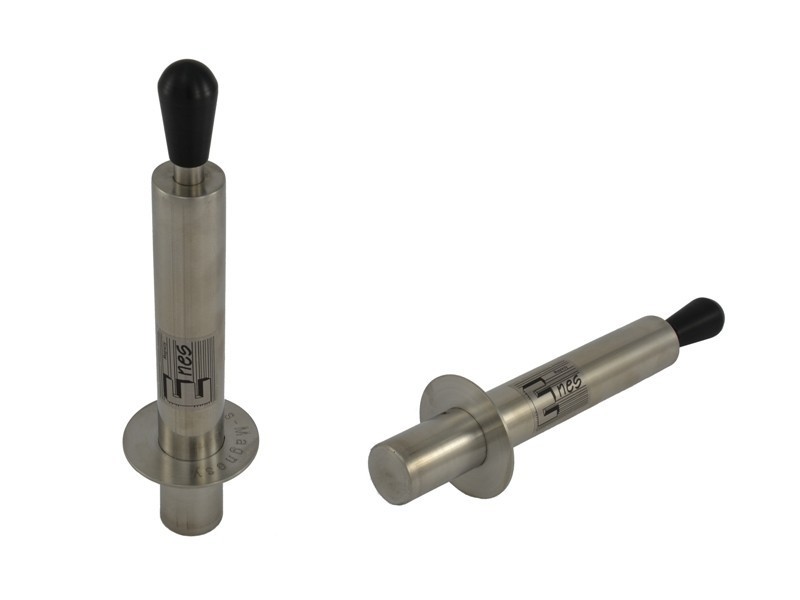

The precision magnetic probe may be used as a probe for sampling, quality control of pellets, powders and liquids as well as in the food industry (control of sauces, juices, chocolate, etc). It is made of acid-proof steel (AISI 304 / EN 1.4301). Inside NdFeB magnets are used. A cleaning is made by pulling the handle up so that ferromagnetic material is stuck to the ring and after pulling the handle falls off by itself.
Other parameters:
- maximum working temperature: 80 [°C]
- maximum magnetic field on housing surface: 2500 [Gs]
- weigh: ~0,31 [kg].
On commission we are ready to manufacture magnetic sampling probes of any size or increased working temperature.
Description
The precision magnetic probe may be used as a probe for sampling, quality control of pellets, powders and liquids as well as in the food industry (control of sauces, juices, chocolate, etc). It is made of acid-proof steel (AISI 304 / EN 1.4301). Inside NdFeB magnets are used. A cleaning is made by pulling the handle up so that ferromagnetic material is stuck to the ring and after pulling the handle falls off by itself.
Other parameters:
- maximum working temperature: 80 [°C]
- maximum magnetic field on housing surface: 2500 [Gs]
- weigh: ~0,31 [kg].
On commission we are ready to manufacture magnetic sampling probes of any size or increased working temperature.
