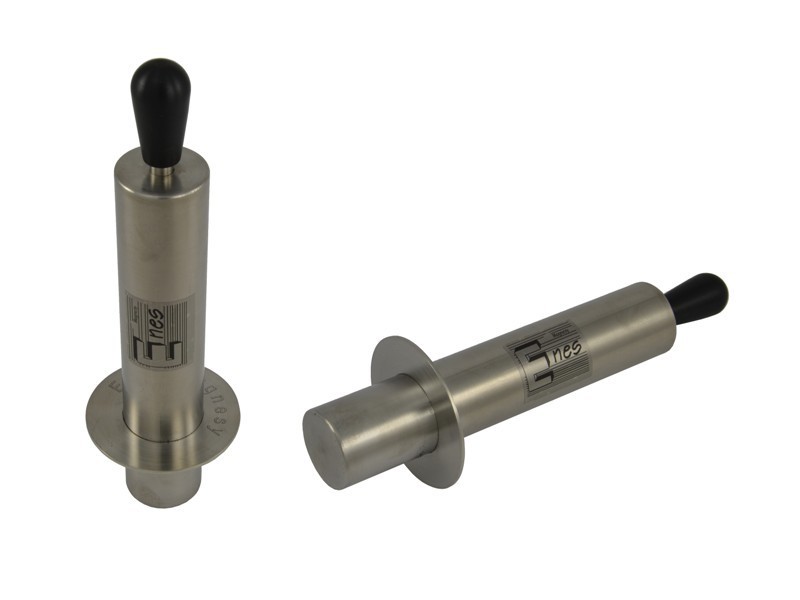

Magnetic sampling probe 32 x 200 / N

Magnetic sampling probe 32 x 200 / NMagnetic sampling probe 32 x 200 / N€64.70

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €64.70 €79.58
Quantity
Available Quantity: 3 pcs.

Ask a question
Performance parameters

Manufacturer

Enes Magnesy

External diameter

32 [mm]

Length

200 [mm]

Magnet type

Neodymium

Maximum magnetic field over the middle poles

0,3 [T], 3000 [Gs] +/- 5%

Magnetic induction is measured with a teslameter with a hall effect flat probe.

Maximum working temperature

≤ 80 [°C]

Housing

stainless steel, AISI 304 / EN 1.4301, approved for contact with food

handling mode

manual use

with an easy cleaning

yes

Weight

420 [g]

The precision magnetic probe may be used as a probe for sampling, quality control of pellets, powders and liquids as well as in the food industry (control of sauces, juices, chocolate, etc). It is made of acid-proof steel (AISI 304 / EN 1.4301). Inside NdFeB magnets are used. A cleaning is made by pulling the handle up so that ferromagnetic material is stuck to the ring and after pulling the handle falls off by itself.

Other parameters:
-  maximum working temperature: 80 [°C]
-  maximum magnetic field on housing surface: 3000 [Gs]
-  weigh: ~0,42 [kg].

On commission we are ready to manufacture magnetic sampling probes of any size or increased working temperature.

Akcesoria

The precision magnetic probe may be used as a probe for sampling, quality control of pellets, powders and liquids as well as in the food industry (control of sauces, juices, chocolate, etc). It is made of acid-proof steel (AISI 304 / EN 1.4301). Inside NdFeB magnets are used. A cleaning is made by pulling the handle up so that ferromagnetic material is stuck to the ring and after pulling the handle falls off by itself.

Other parameters:
-  maximum working temperature: 80 [°C]
-  maximum magnetic field on housing surface: 3000 [Gs]
-  weigh: ~0,42 [kg].

On commission we are ready to manufacture magnetic sampling probes of any size or increased working temperature.
