- New
Manufacturer
Enes Magnesy
External diameter
32 [mm]
Length
200 [mm]
Magnet type
Neodymium
Maximum magnetic field over the middle poles
0,4 [T], 4000 [Gs] +/- 5%
Maximum working temperature
≤ 60 [°C]
Housing
stainless steel, AISI 304 / EN 1.4301, approved for contact with food
Handling mode
manual use
With an easy cleaning
yes
Weight
420 [g]
Performance parameters
Magnetic induction is measured with a teslameter with a hall effect flat probe.

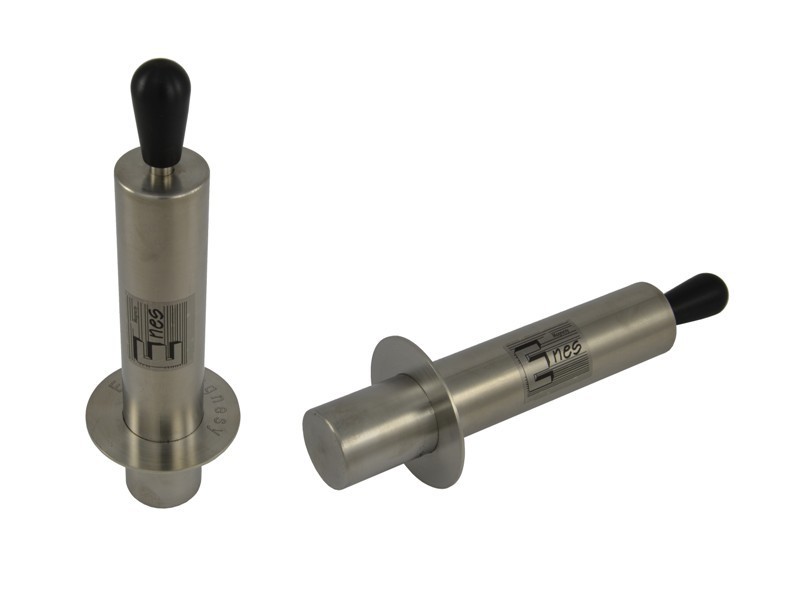

Magnetic sampling probe 32 x 200 / N52
The precision magnetic probe may be used as a probe for sampling, quality control of pellets, powders and liquids as well as in the food industry (control of sauces, juices, chocolate, etc). It is made of acid-proof steel (AISI 304 / EN 1.4301). Inside NdFeB magnets are used. A cleaning is made by pulling the handle up so that ferromagnetic material is stuck to the ring and after pulling the handle falls off by itself.
The precision magnetic probe may be used as a probe for sampling, quality control of pellets, powders and liquids as well as in the food industry (control of sauces, juices, chocolate, etc). It is made of acid-proof steel (AISI 304 / EN 1.4301). Inside NdFeB magnets are used. A cleaning is made by pulling the handle up so that ferromagnetic material is stuck to the ring and after pulling the handle falls off by itself.
Other parameters:
- maximum working temperature: 60 [°C]
- maximum magnetic field on housing surface: 4000 [Gs]
- weigh: ~0,42 [kg].
On commission we are ready to manufacture magnetic sampling probes of any size or increased working temperature.
ZMP32X160N52
5 Items
Specific References
- EAN13
- 5906236812231
