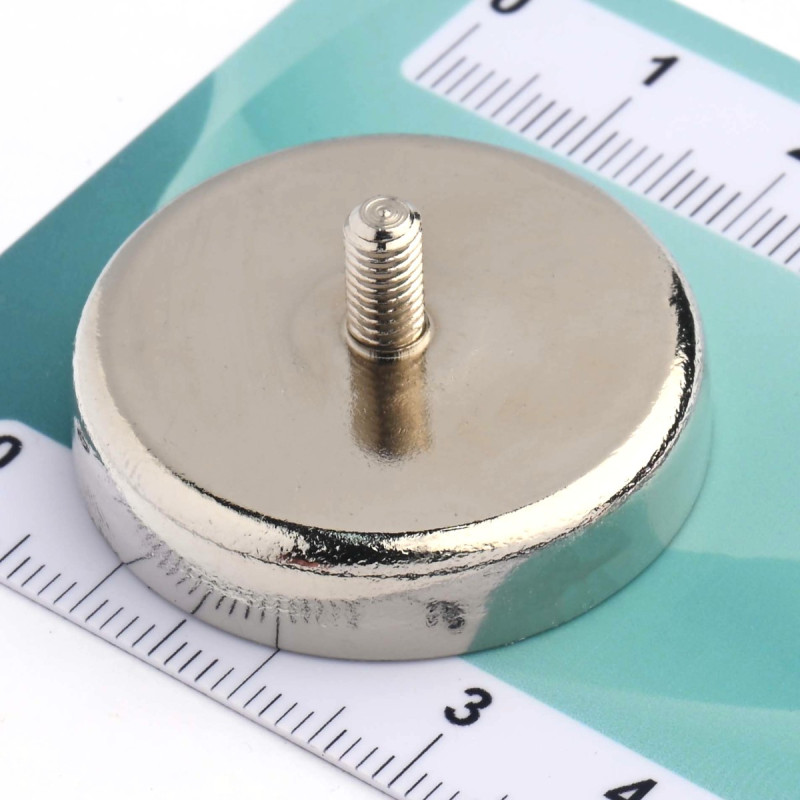

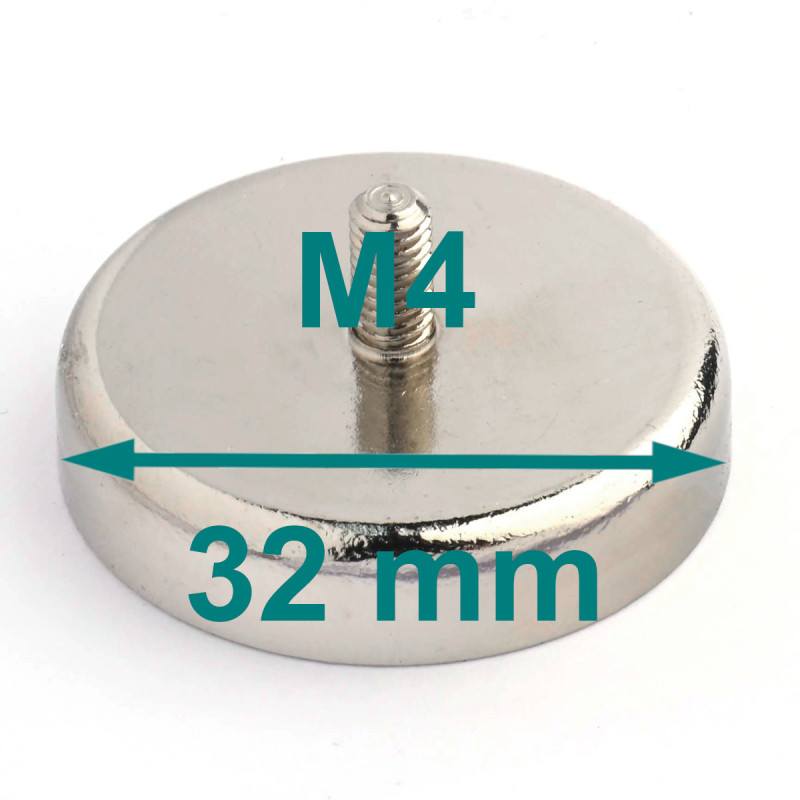

External diameter
32 [mm]
Height
7 [mm]
Height with threaded
15 [mm]
Thread type
external, M4
Magnet type
Ferrite
Maximal hoisting capacity
~9,4 [kg]
Coating
Nickel-plated (NiCuNi)
Maximum working temperature
110 [°C]
Weight
30 [g]
Performance parameters
The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

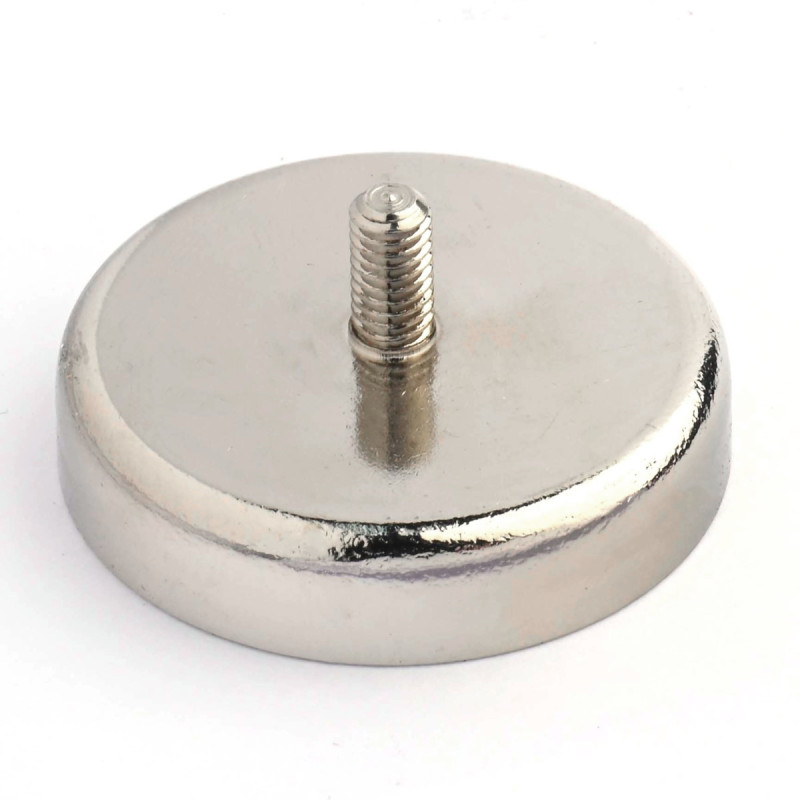

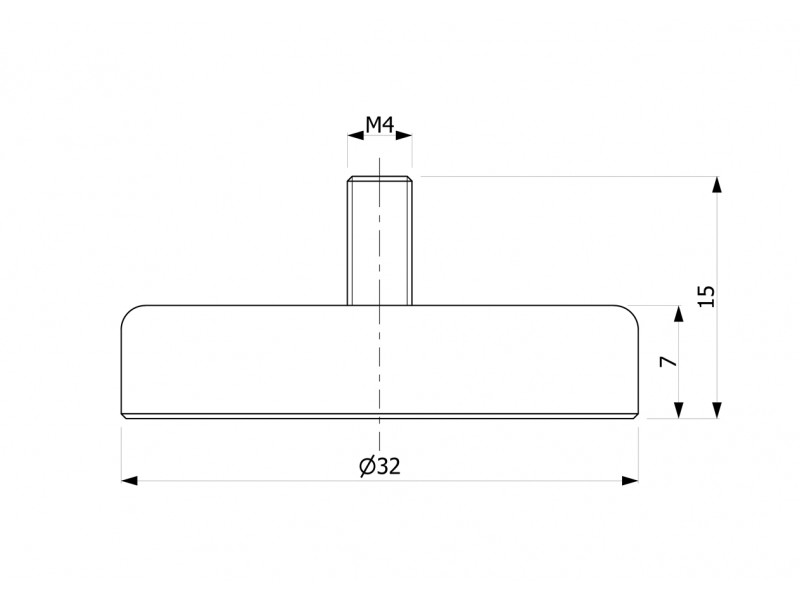

Ferrite pot magnet with threaded stud D32x7xM4x15F

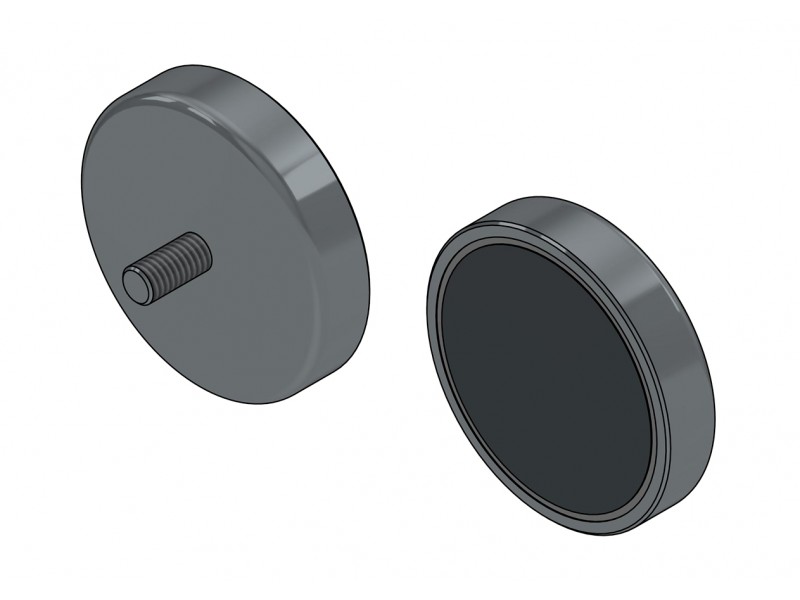

This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

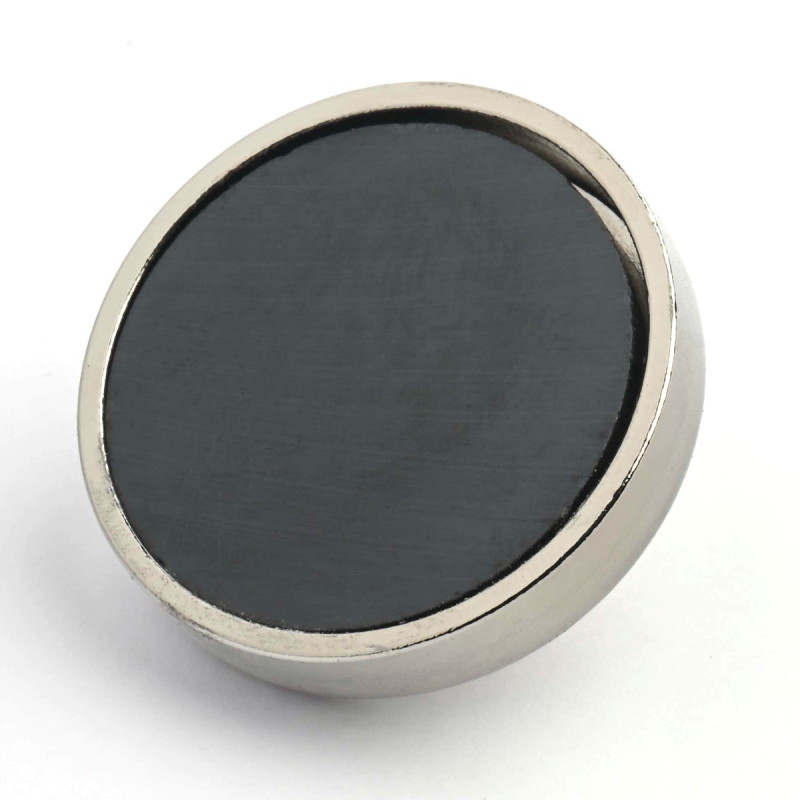

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing. The magnet is glued into a steel housing, so it is more protected against impacts. There is an external thread in the housing for fixing in the mounting holes.
Due to the casing, the magnet is single-sided. Ferrite magnets are well resistant to corrosion and do not require additional protection. Housing protected by nickel plating. The maximum operating temperature is no more than 110 degrees Celsius.
Ferrite magnets stick to metal surface (ferromagnetic materials).
um32x7xm4zx15f
293 Items
Specific References
- EAN13
- 5906236808524
