- Out-of-Stock
Length
280 [mm]
Width
256 [mm]
Height
140 [mm]
Maximum working temperature
≤ 80 [°C]
Magnetic field switcher
yes
Power supply
sieciowe, 230 V AC
Weight
3 [kg]
Performance parameters

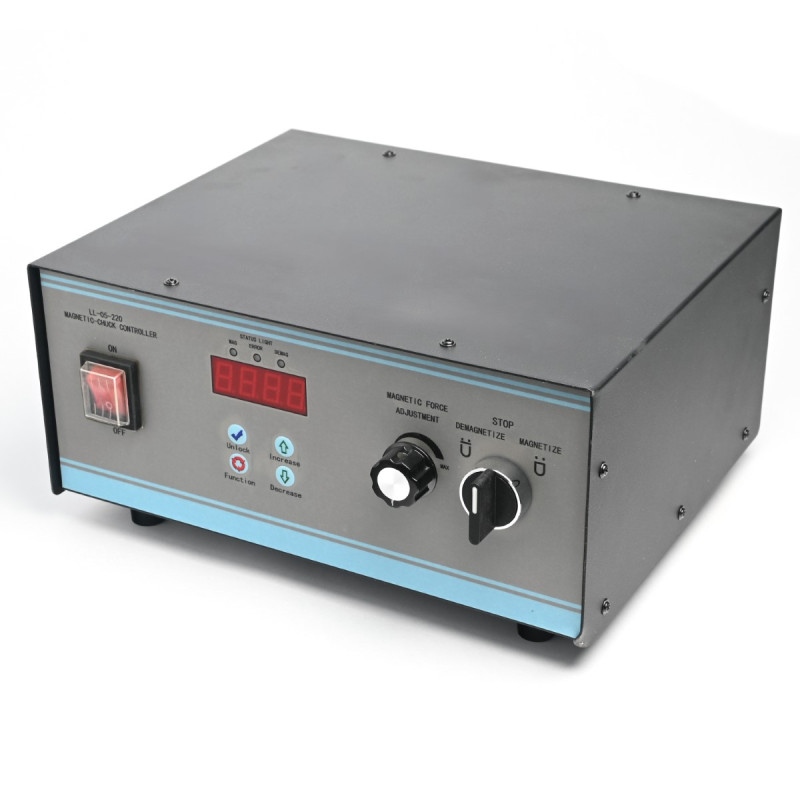

The LL-05-220 controller is used to control X11 and X91 electromagnetic tables. The user does not need to adjust any internal parts.
Basic parameters:
- Smooth adjustment of magnetising force (output voltage adjustment in the range of 0-130 V);
- Overload and short-circuit protection function;
- Input voltage AC 230±15%, maximum output voltage DC130V, no additional voltage converter required;
- Maximum output current: 5A
STER_LL05220
Specific References
- EAN13
- 5906236813023
