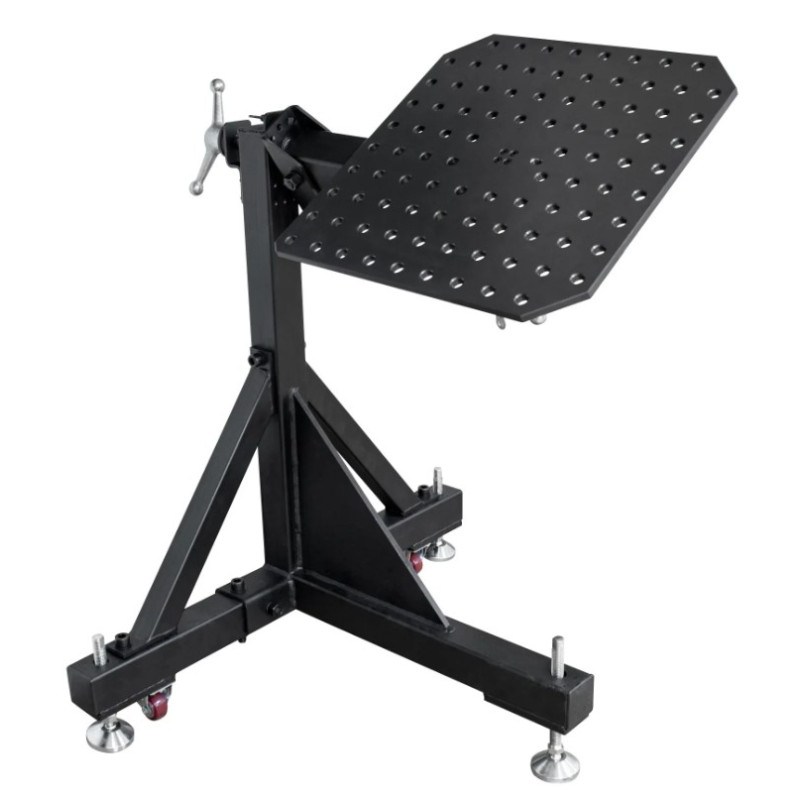

Manual welding manipulator TU65050 Stronghandtools
Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Manufacturer
Stronghandtools
Handling mode
manual use
Weight
103 [kg]
Tabletop size [mm]
508 x 508
Table height range [mm]
1015
Performance parameters

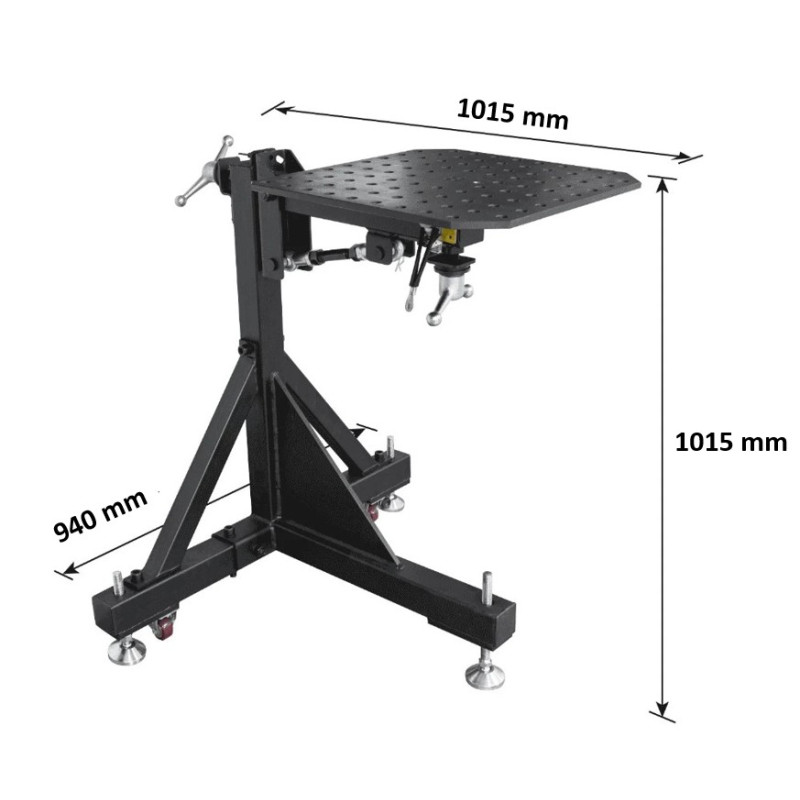

Manual welding manipulator TU65050 Stronghandtools

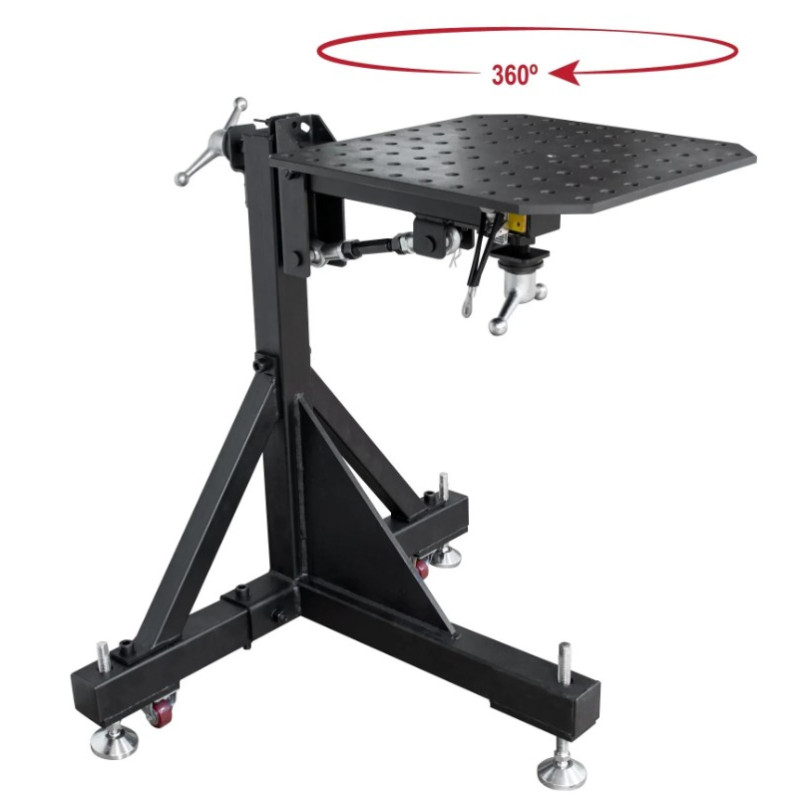

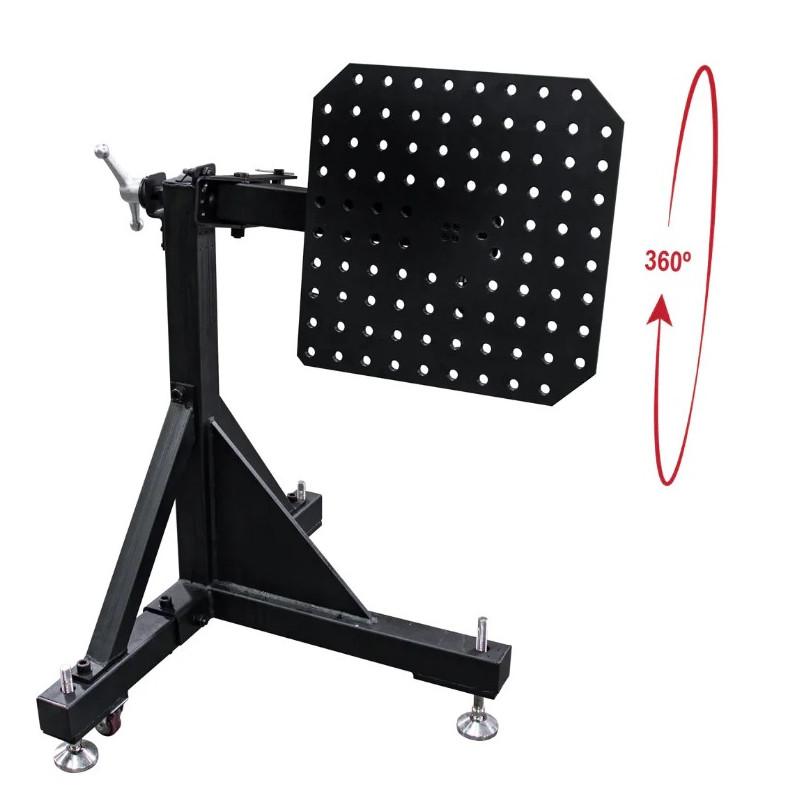

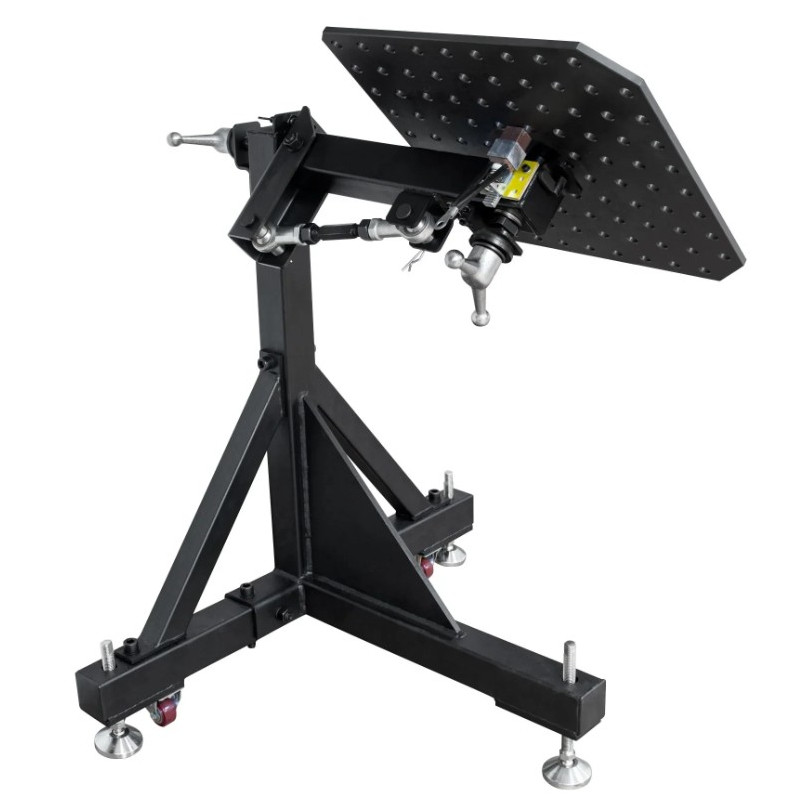

The manipulator uses two rotating axis and one tilting axis to position your work in the ideal spot. For best results, always position the center of gravity of the workpiece in line with the two rotating axis to achieve low resistance repositioning.

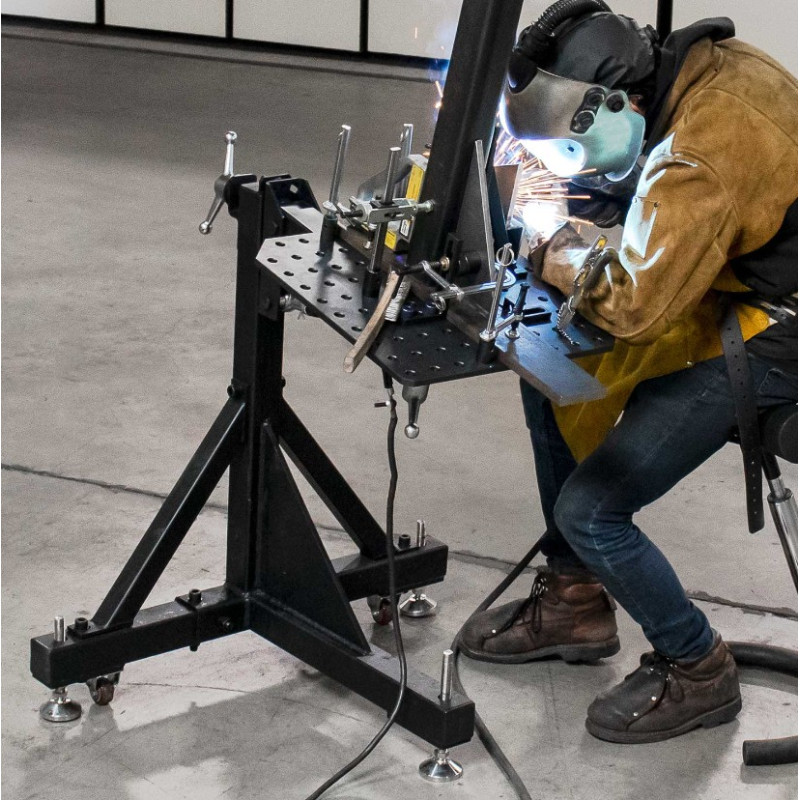

- Access difficult joints without putting yourself in an awkward position.
- Position the joint for the fastest technique.
- Go from vertical up or overhead to a flat or downhill weld.
- Get the job finished with less mental and physical fatigue.
- Fast repositioning. No need to un-clamp.
Features manipulator TU65050
 |
Spring-loaded carbon brush grounds rotating plate to stationary grounding point. |
 |

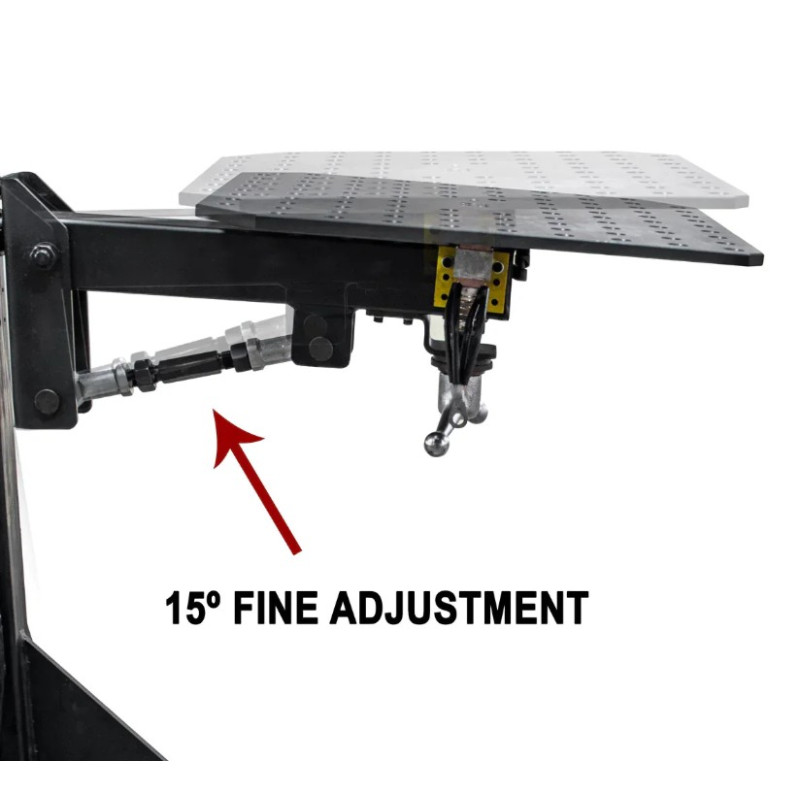

Three Locking Positions - 0º and 30º on both sides |
 |
Two large handles for quick and easy adjustment of rotary axis. |
 |
Large leveling pads with wrench flats. |
 |
Two casters for quick repositioning of manipulator. |
 |
Fixturing kit (TUK6300) available. |
Accuracy of the manipulator TU65050
| Hole Diameter: | 16 mm |
| Hole Spacing: | 50 mm |
| Table Flatness: | 0.3 mm per 1,000 mm |
| Plate Thickness: | 16.002 ± 0.102 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Nitriding depth | 0.01 – 0.02 mm |
| Coefficient of Friction: | 0,37 |
| Table height: | 1015 mm |
| Static load capacity: | 50 kg |
| Gross weight: | 103 kg |
MANSPAWTU65050
4 Items
Specific References
Delivery time: 10-14 working days
