Rhino Cart 1200x750 mm Stronghandtools
Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Manufacturer
Stronghandtools
Handling mode
manual use
Weight
243 [kg]
Tabletop size [mm]
1200 x 750
Table height range [mm]
910
Performance parameters

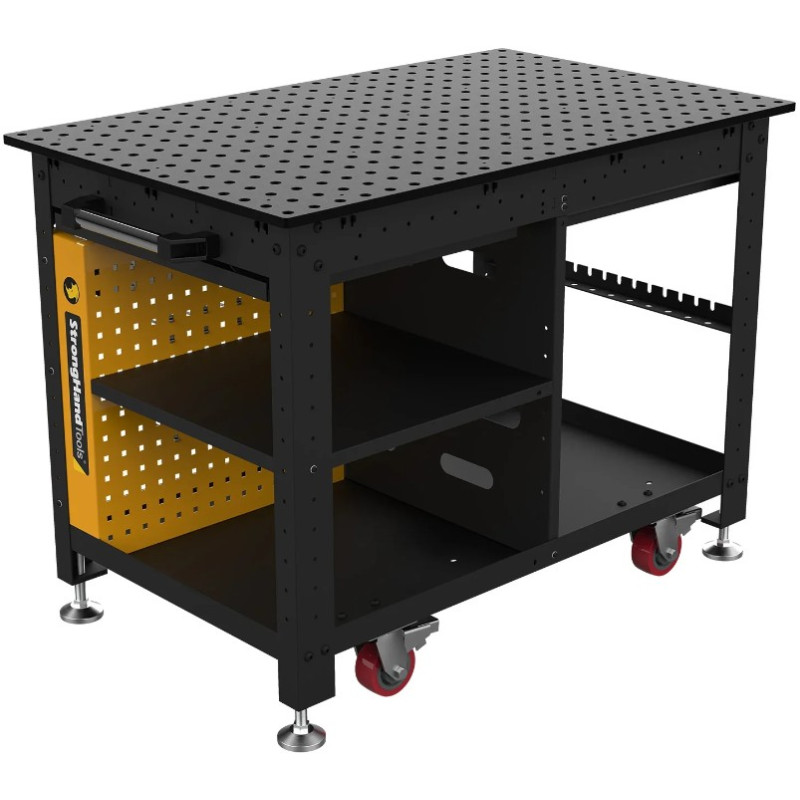

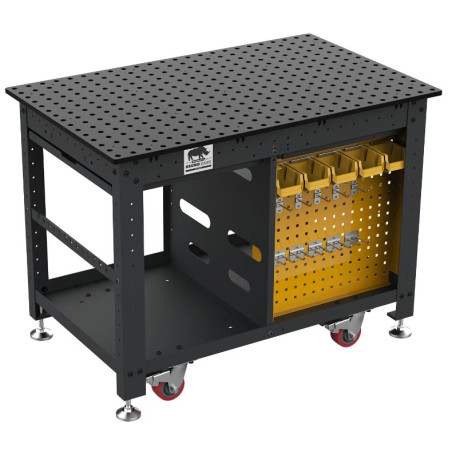

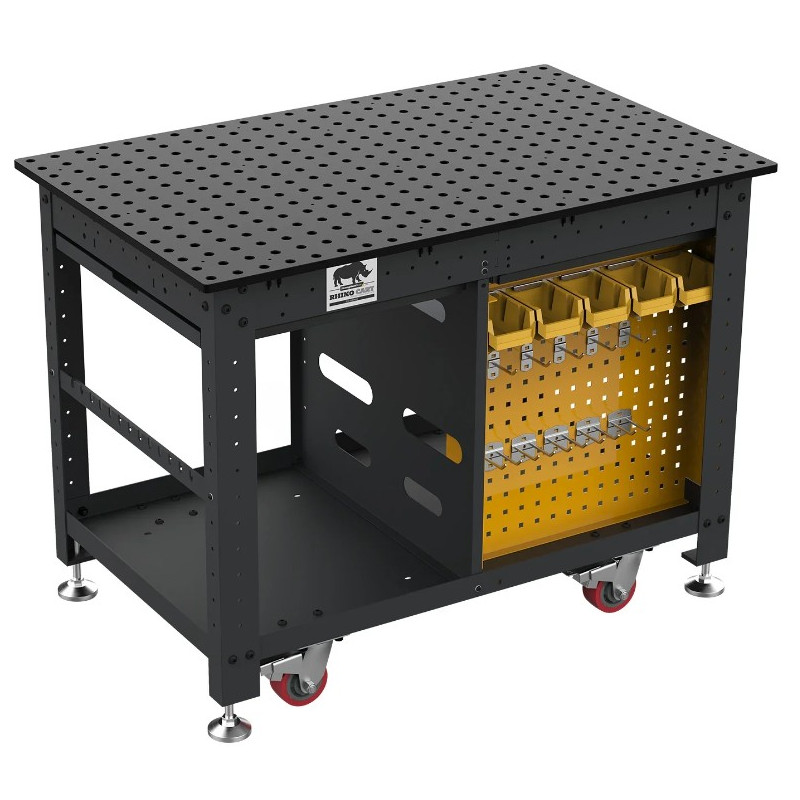

Rhino Cart 1200x750 mm Stronghandtools

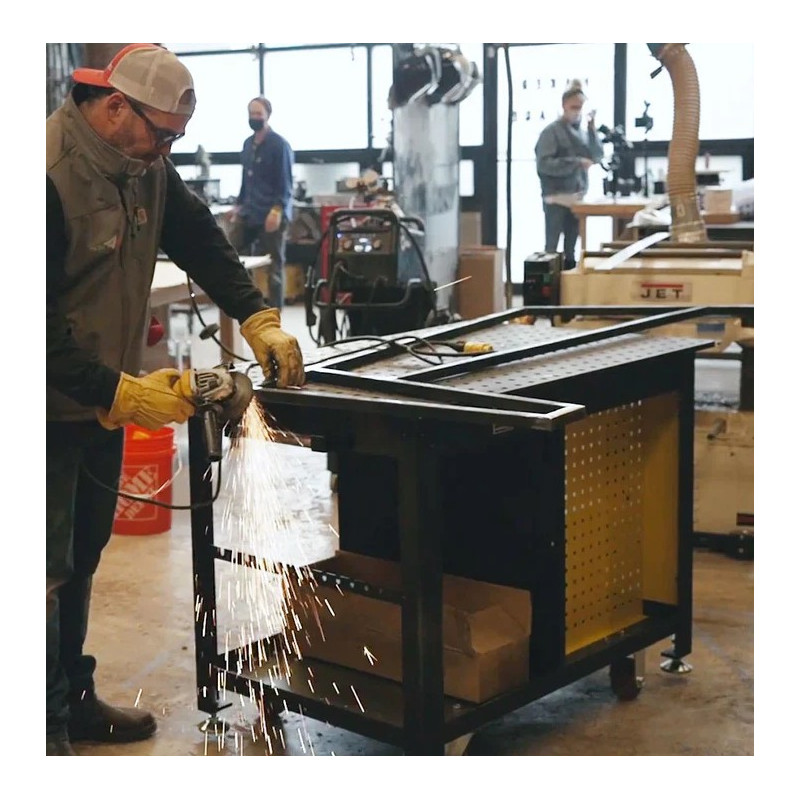

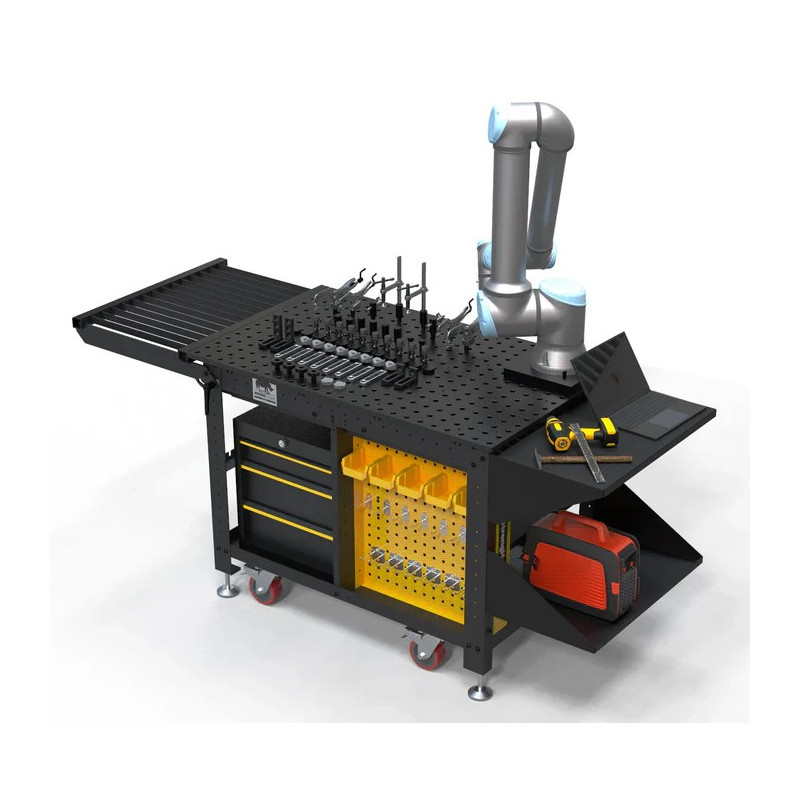

Rhino mobile workstations offer unique functionality by combining the quality of welding tables with the mobility of a trolley. Rhino stations and scissor lifts are equipped with a replaceable, durable worktop that fits all 16 mm diameter fasteners, providing the best compact mobile workstations. Clamping and positioning at any point on the reversible, flat, nitrided (heat-treated) worktop ensures precision in all operations.
Features Rhino Carts
 |

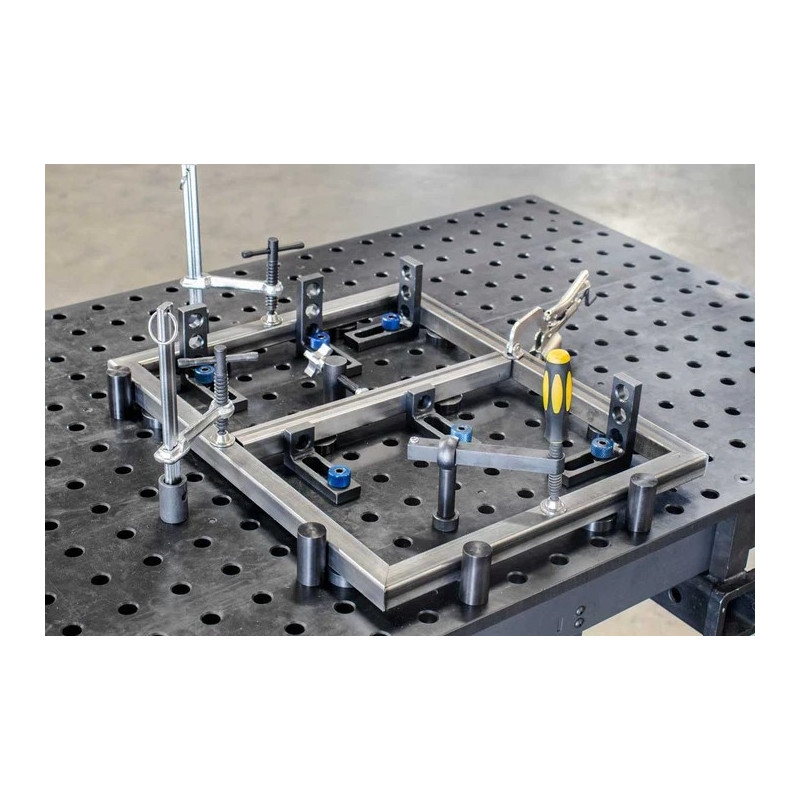

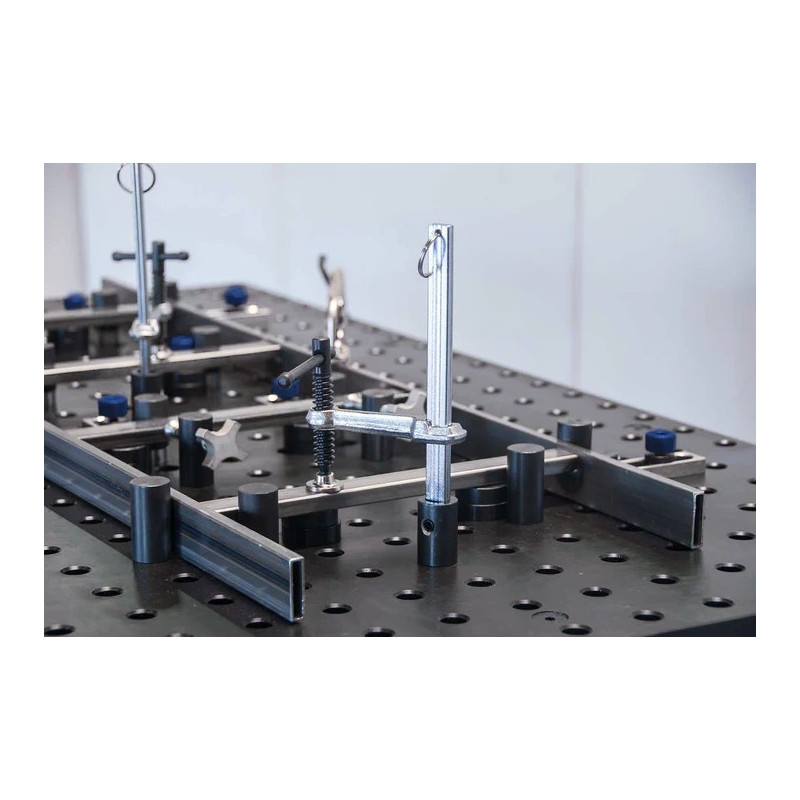

CNC Hole Pattern Accurately position parts in CNC precision bored 16 mm diameter holes in 50x50 mm spacing pattern. |
 |
Table Accuracy Table Flatness: 0.3 mm per 1,000 mm
Hole Spacing: 50 mm
Hole Diameter: 16 mm
Plate Thickness: 16 mm |
 |
Reversible Tabletop Nitrided and black oxide table plate is reversible. Weld spatter, rust and scratch resistant. |
 |

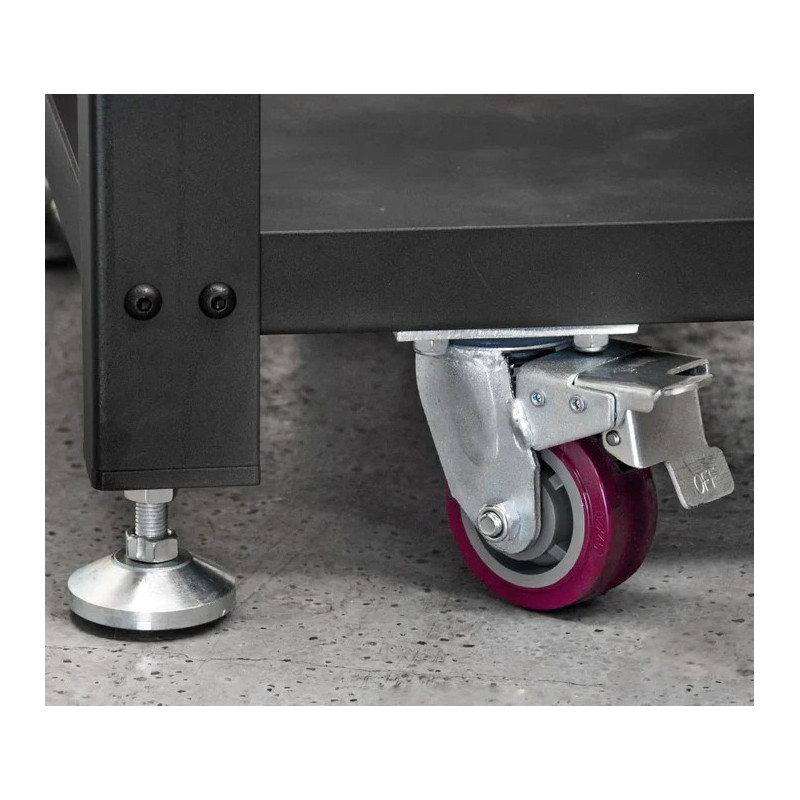

Locking Casters Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use. |
 |

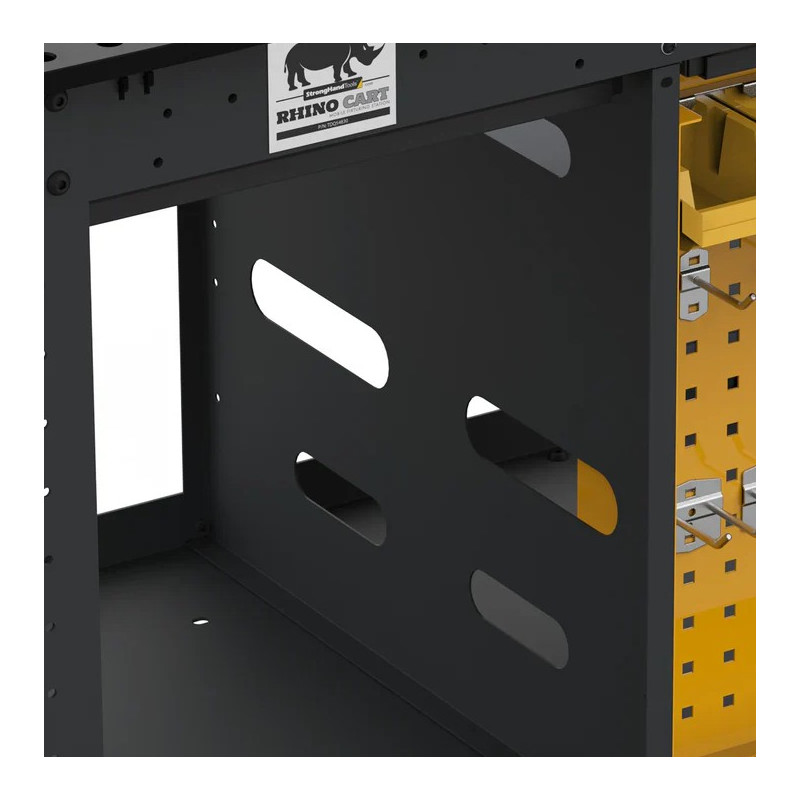

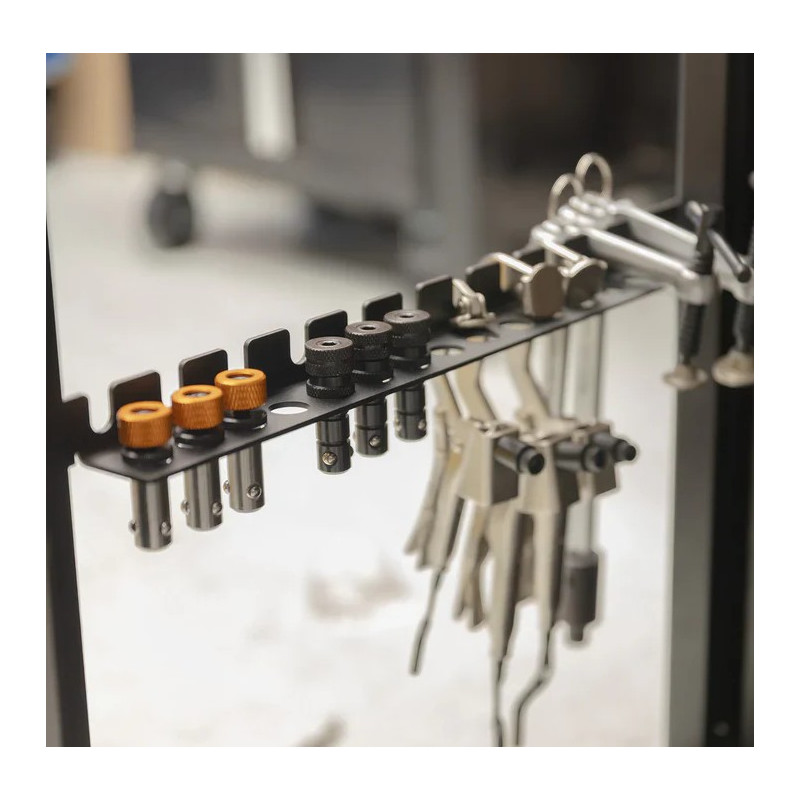

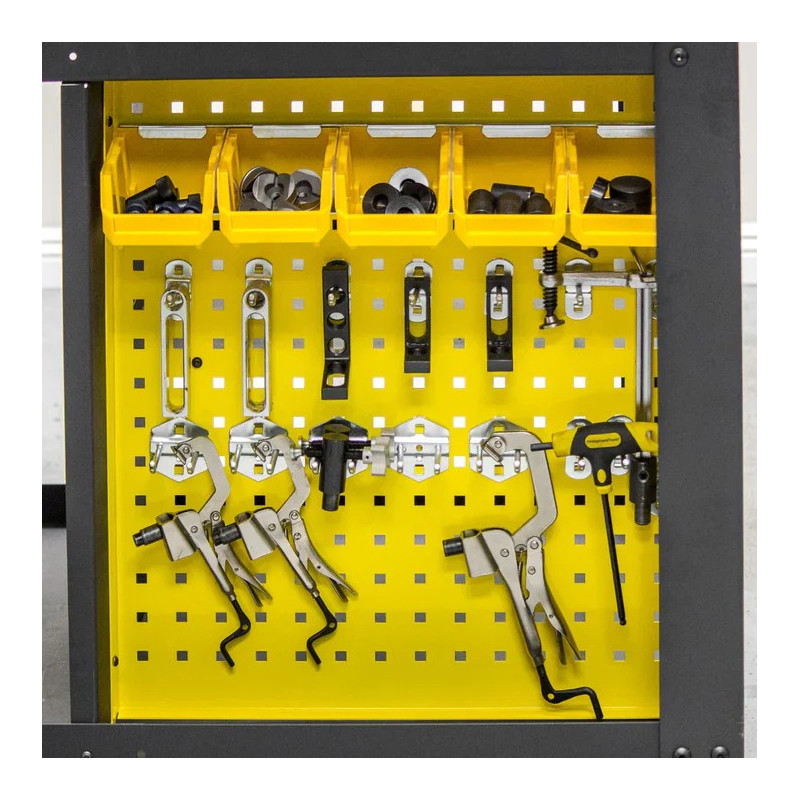

Storage and organisation Shelves, racks and a perforated panel allow you to store, organise and keep your clamps and accessories close at hand. |
 |

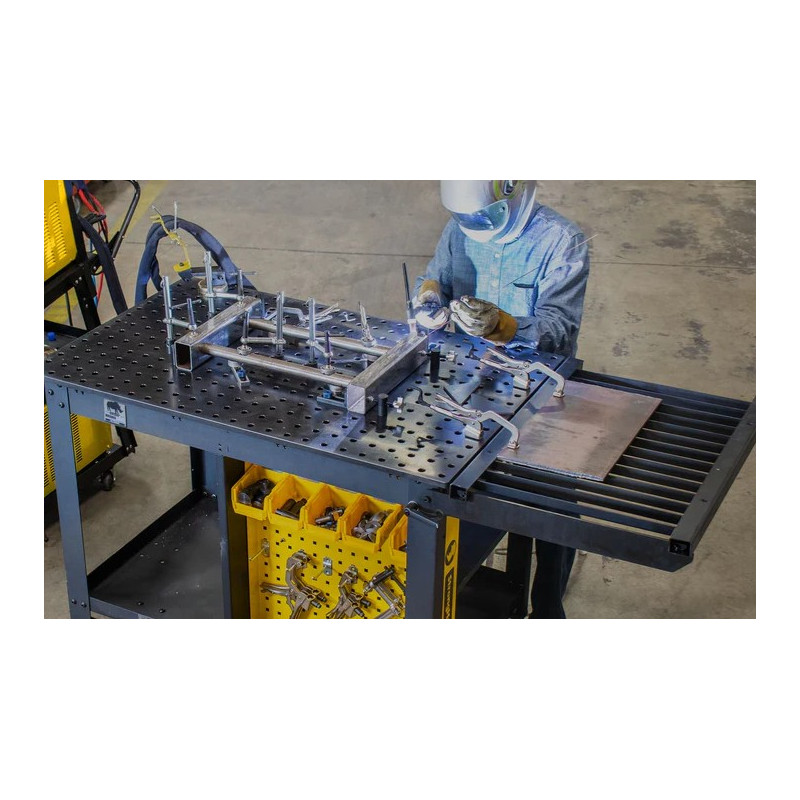

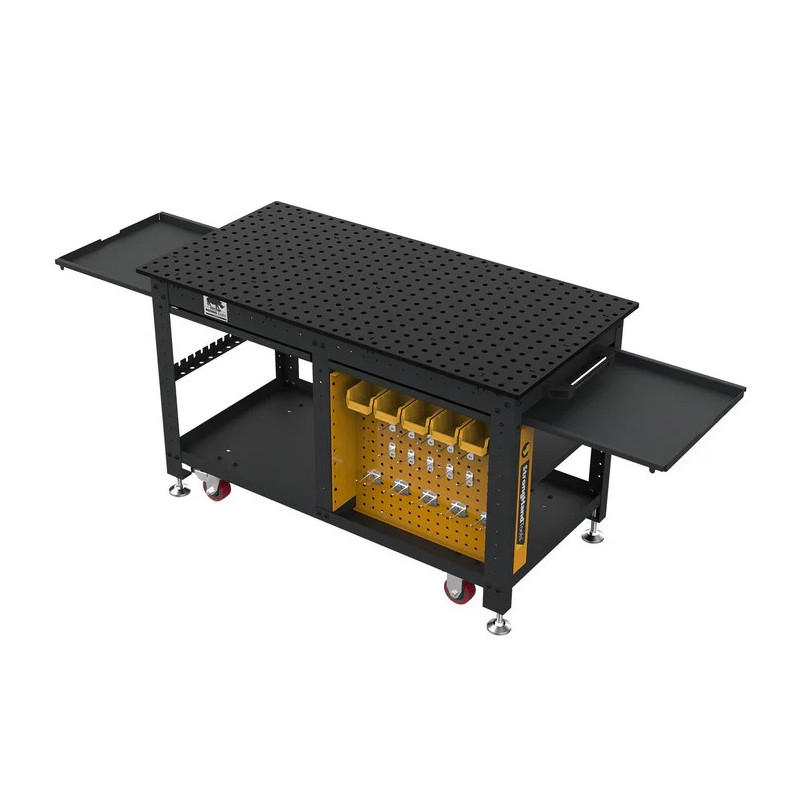

Optional Accessories (sold separately) Attach the fold-up Plasma Cutting Tray or Hitch Mount Plate to your Rhino Cart Mobile Fixturing Station to cut, clamp, fixture and weld on one convenient workstation. |
 |

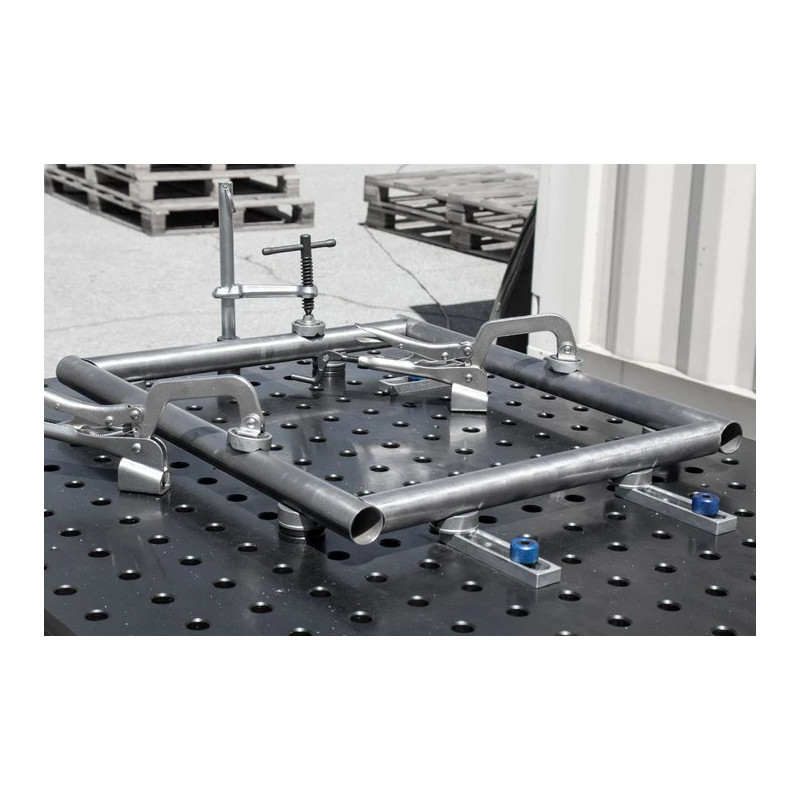

Compatible with 16 mm table mounts The tabletop is compatible with all BuildPro clamps, components, and modular mounting kits, except for sliding channel clamps, sliding channel bases, gap filler kits, and T-Slot adapters. |
Accuracy of the Rhino Cart
| Hole Diameter: | 16 mm |
| Hole Spacing: | 50 mm |
| Table Flatness: | 0.3 mm per 1,000 mm |
| Plate Thickness: | 16.002 ± 0.102 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Nitriding depth | 0.01 – 0.02 mm |
| Coefficient of Friction: | 0,37 |
| Table height: | 910 mm |
| Static load capacity: | 680 kg |
| Gross weight: | 243 kg |
TD6-1275Q-F3
3 Items
Specific References
Delivery time: 10-14 working days
