Manufacturer
Stronghandtools
Handling mode
manual use
Weight
228 [kg]
Tabletop size [mm]
1200 x 750
Table height range [mm]
548 - 970
Performance parameters

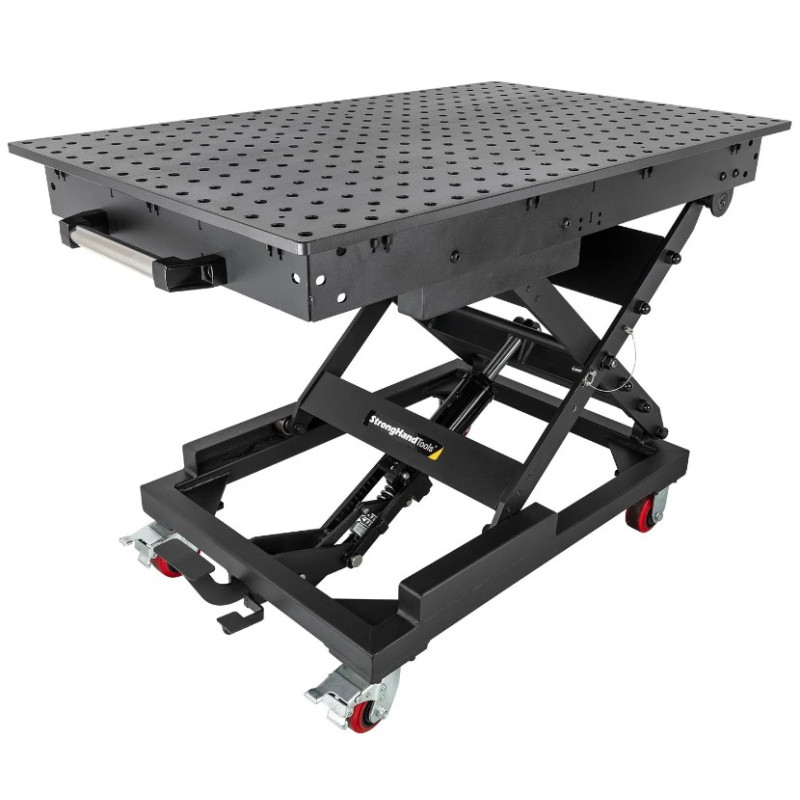

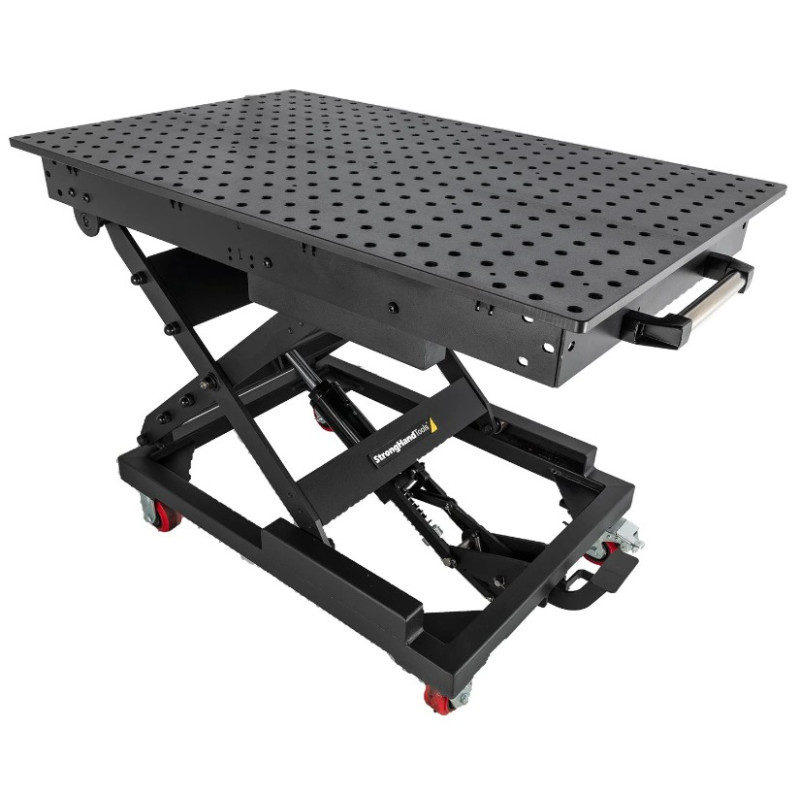

Rhino Scissor Lift 1200x750 mm Stronghandtools

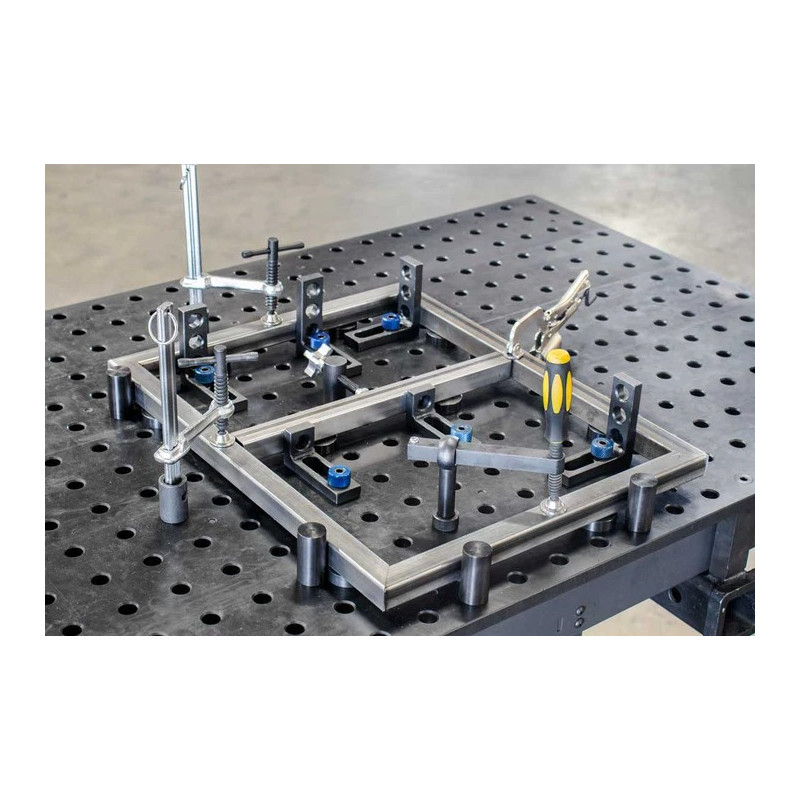

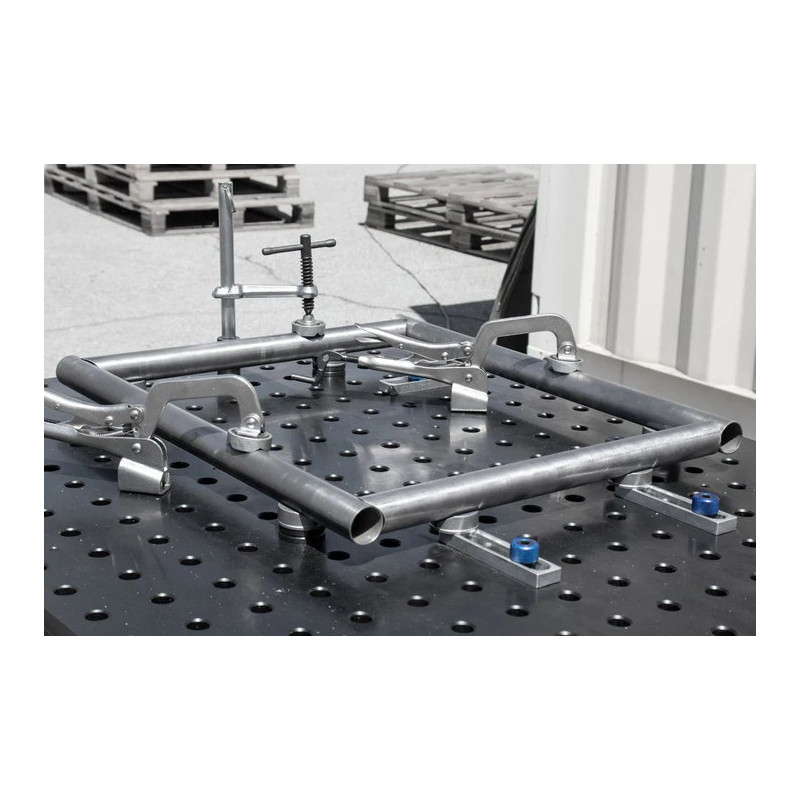

Rhino mobile workstations offer unique functionality by combining the quality of welding tables with the mobility of a trolley. Rhino stations and scissor lifts are equipped with a replaceable, durable worktop that fits all 16 mm diameter fasteners, providing the best compact mobile workstations. Clamping and positioning at any point on the reversible, flat, nitrided (heat-treated) worktop ensures precision in all operations.

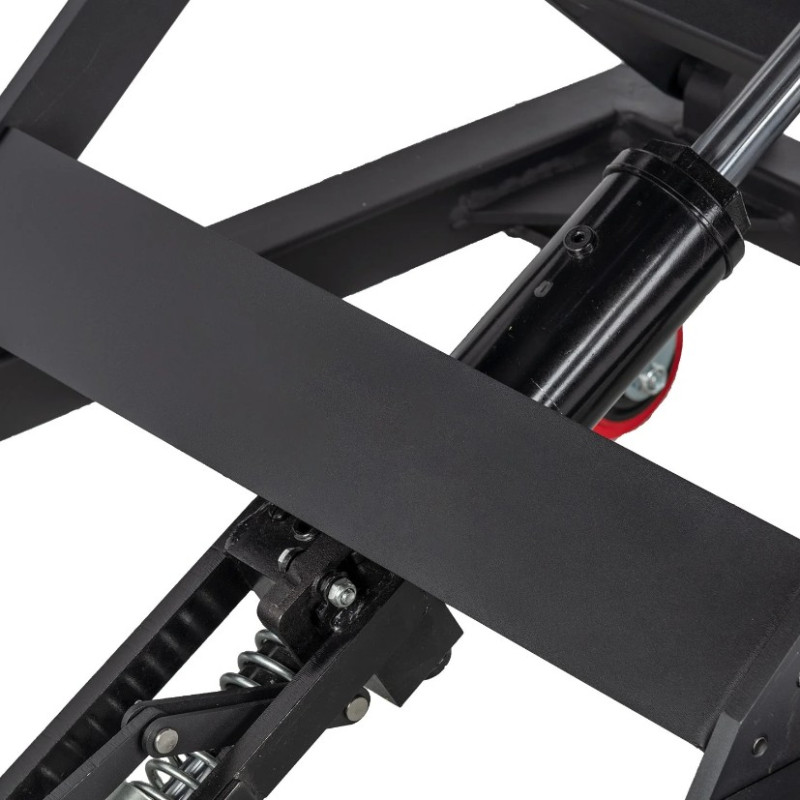

The Rhino scissor lift has an improved frame design that provides greater rigidity and stability.
The Rhino scissor lift has an improved frame design that provides greater rigidity and stability.
Features Rhino Scissor Lift
 |

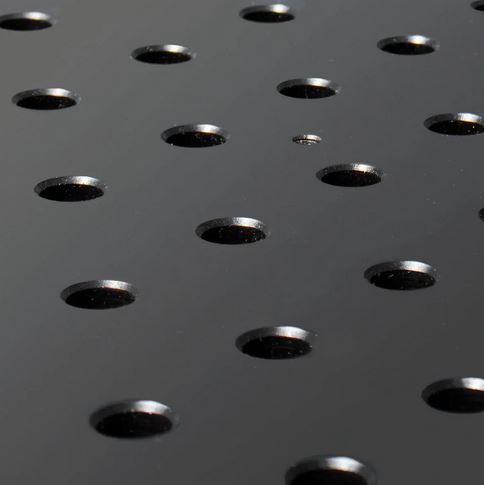

CNC Hole Pattern Accurately position parts in CNC precision bored 16 mm diameter holes in 50x50 mm spacing pattern. |
 |
Table Accuracy Table Flatness: 0.3 mm per 1,000 mm
Hole Spacing: 50 mm
Hole Diameter: 16 mm
Plate Thickness: 16 mm |
 |

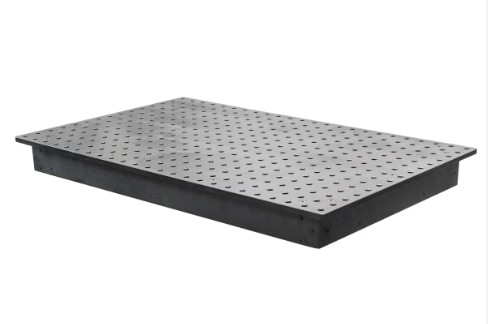

Reversible Tabletop Nitrided and black oxide table plate is reversible. Weld spatter, rust and scratch resistant. |
 |

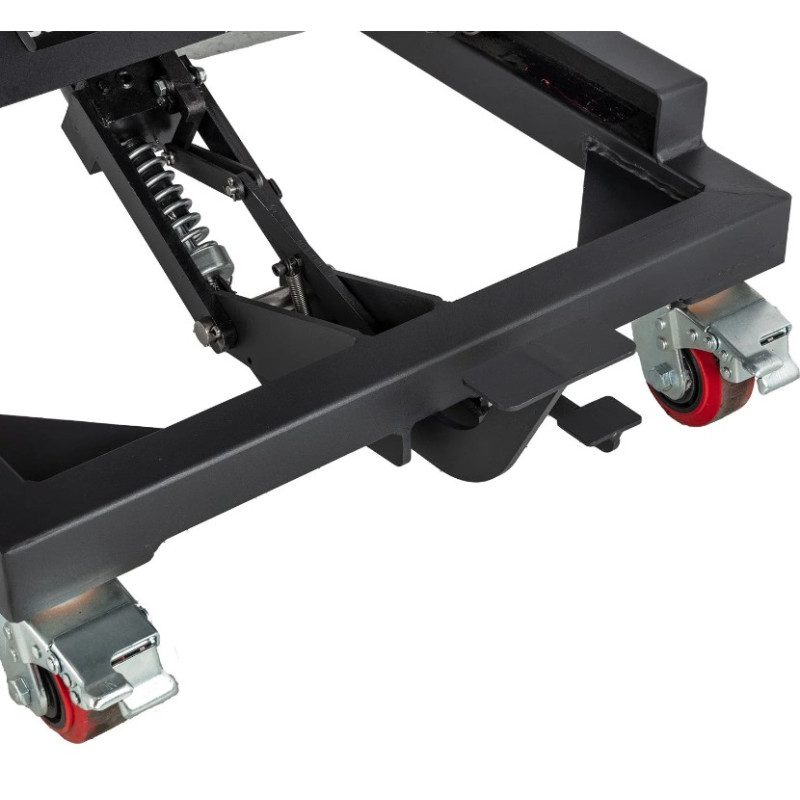

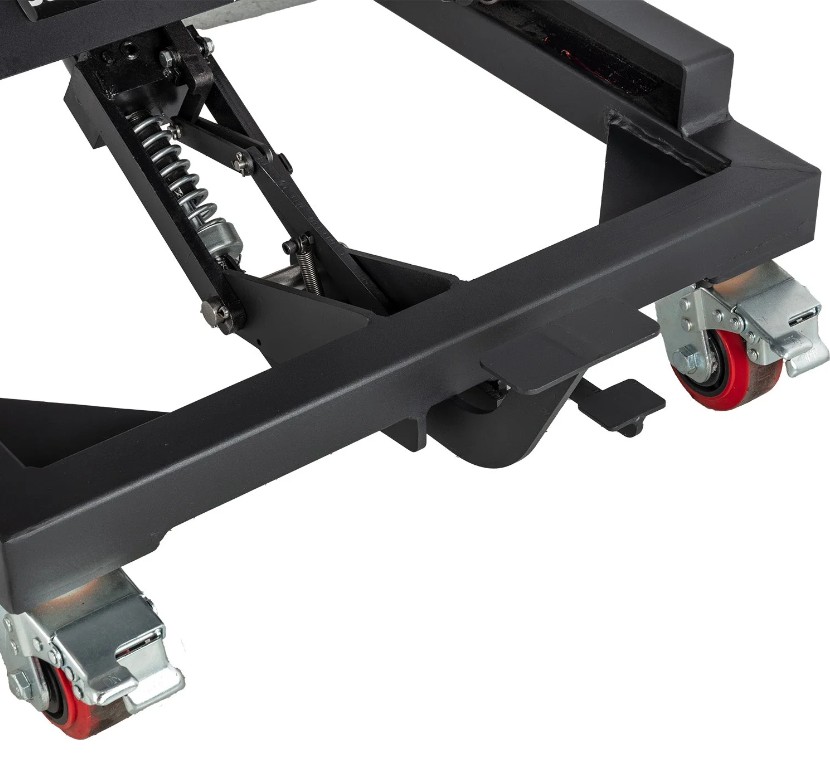

Locking Casters The steel legs are equipped with 2x locking castors + 2x swivel castors for mobile or stationary use. |
 |

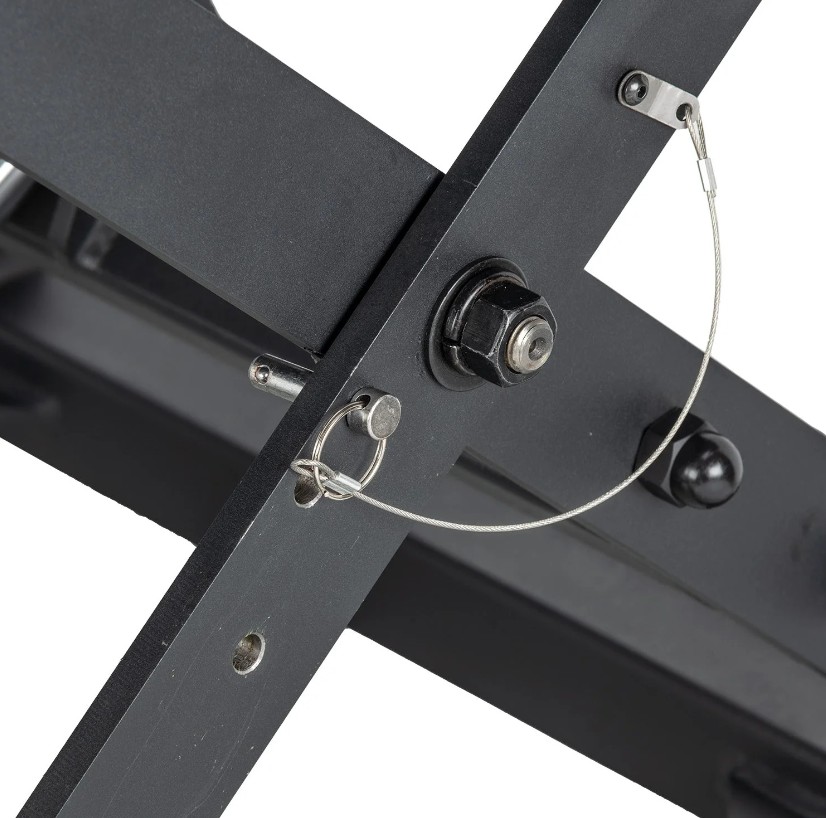

Safety The table is equipped with a pin that prevents it from folding. |
 |

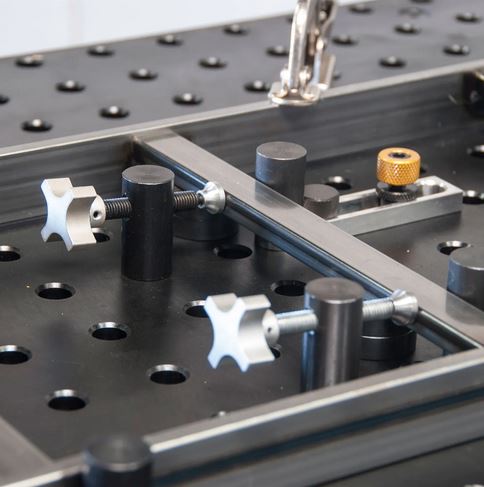

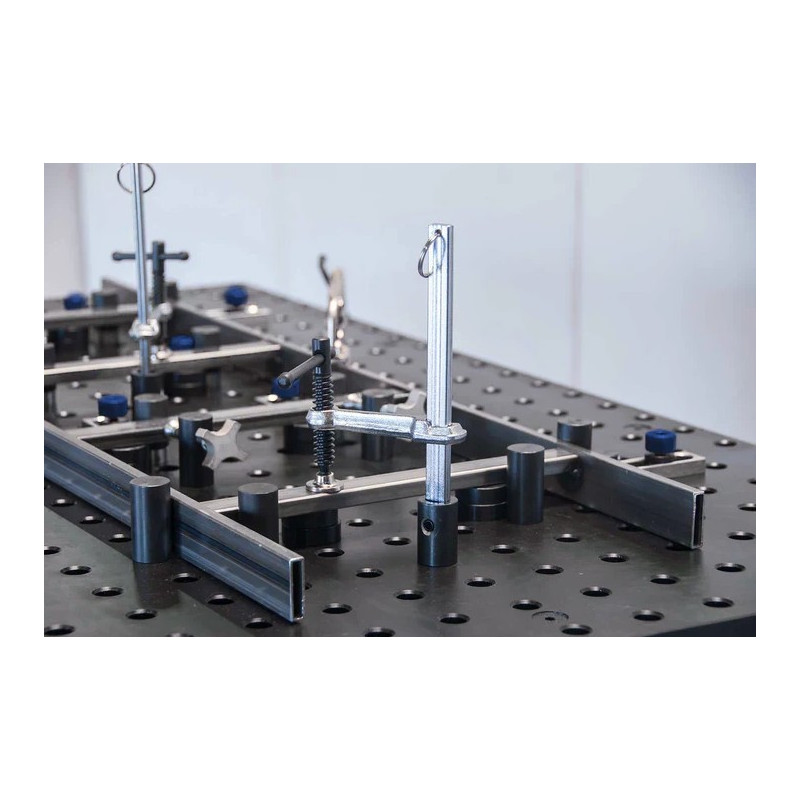

Compatible with 16 mm table mounts The tabletop is compatible with all BuildPro clamps, components, and modular mounting kits, except for sliding channel clamps, sliding channel bases, gap filler kits, and T-Slot adapters. |
Accuracy of the Rhino Scissor Lift
| Hole Diameter: | 16 mm |
| Hole Spacing: | 50 mm |
| Table Flatness: | 0.3 mm per 1,000 mm |
| Plate Thickness: | 16.002 ± 0.102 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Nitriding depth | 0.01 – 0.02 mm |
| Coefficient of Friction: | 0,37 |
| Table height: | 548 - 970 mm |
| Static load capacity: | 300 kg |
| Gross weight: | 228 kg |
TDSL12075
3 Items
Specific References
Delivery time: 10-14 working days
