Welding table Alpha 16, 3000 x 1500 mm Stronghandtools

Of	Price Net	Price Gross
1 pcs.	€5850.00	€7195.50

Quantity

Available Quantity: 3 pcs.

Delivery time: 10-14 working days

Ask a question

Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Description

Manufacturer: Stronghandtools
Handling mode: manual use
Weight: 957 [kg]
Tabletop size [mm]: 3000 x 1500
Table height range [mm]: 745 ~ 1090

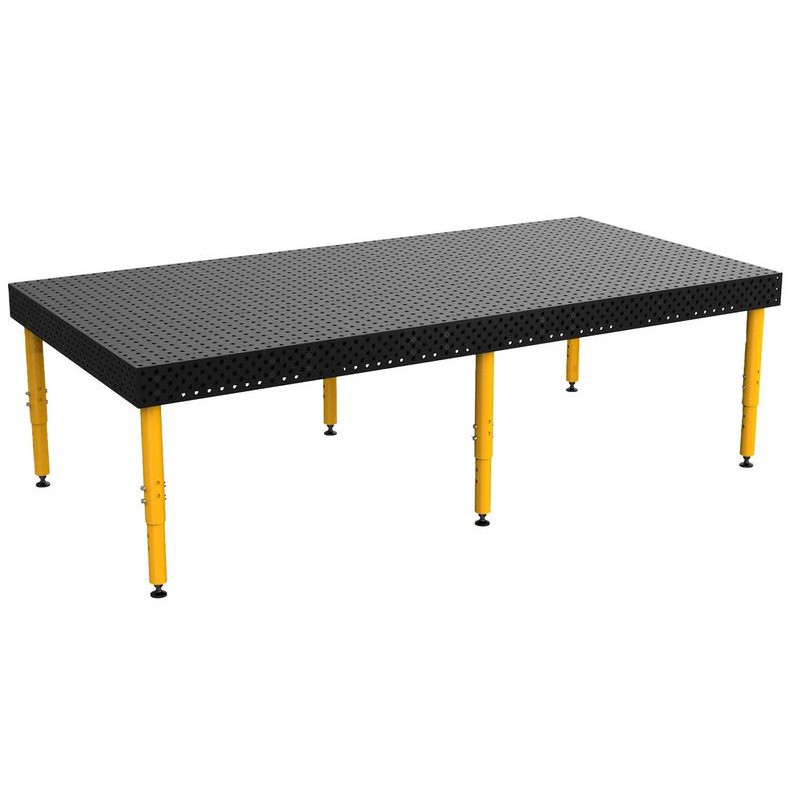

Welding table Alpha 16, 3000 x 1500 mm Stronghandtools

Introducing the Alpha series of welding tables from Strong Hand Tools. These tables feature a highly durable construction and precision craftsmanship. The Alpha family of tables consists of panel systems combined with patented, reversible and interchangeable top and side plates, making them more versatile.

The only modular welding table with very high strength and adjustable, self-positioning, reversible table plates. It offers unlimited possibilities for clamping elements for welding and machining. Precise setting, positioning and clamping of elements ensures higher quality and convenience of welding.

The Alpha 16 series welding tables were designed in response to customer demand for an affordable, durable, metric welding table. The Alpha 16 series features 5 sides with 16 mm diameter holes, providing greater versatility and expandability than ever before. It meets industry-leading requirements for flatness, squareness and dimensional accuracy.

Precision ground steel plates, with CNC machined IZI16 mm holes in a 50 x 50 mm grid pattern for locating, positioning and mounting BuildPro clamps & accessories

Plates can be reconfigured to expand the width of the table for larger projects.

Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces

Features of Alpha 16 tables

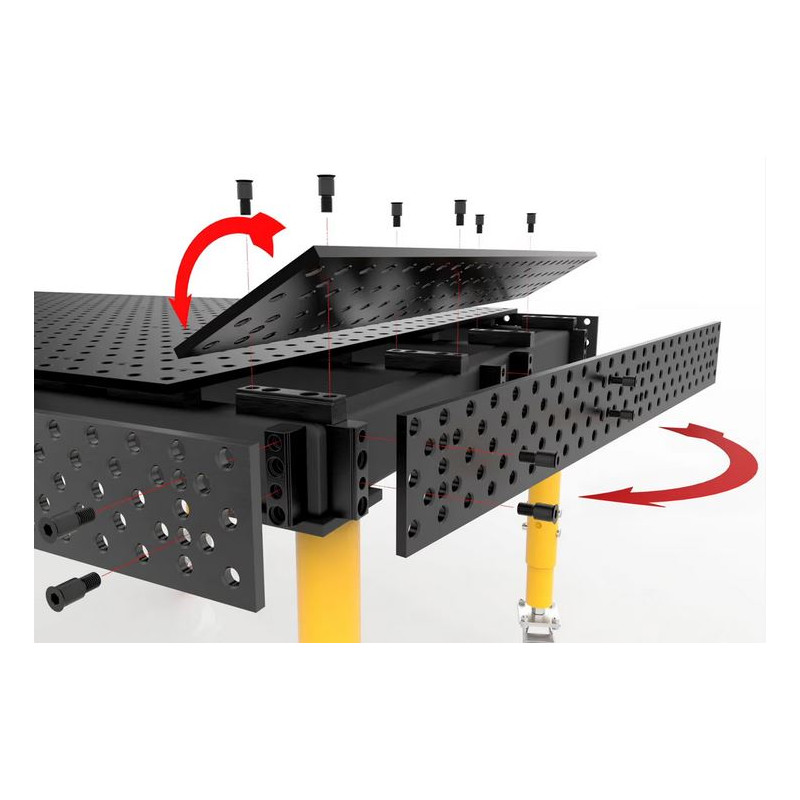

REVERSIBLE Self-Locating Top & Side Plates

All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.

Alpha Table Accuracy

Table flatness: 0.3 mm / 1,000 mm

Hole spacing: 50 mm

Hole diameter: 16 mm

Plate thickness: 12 mm

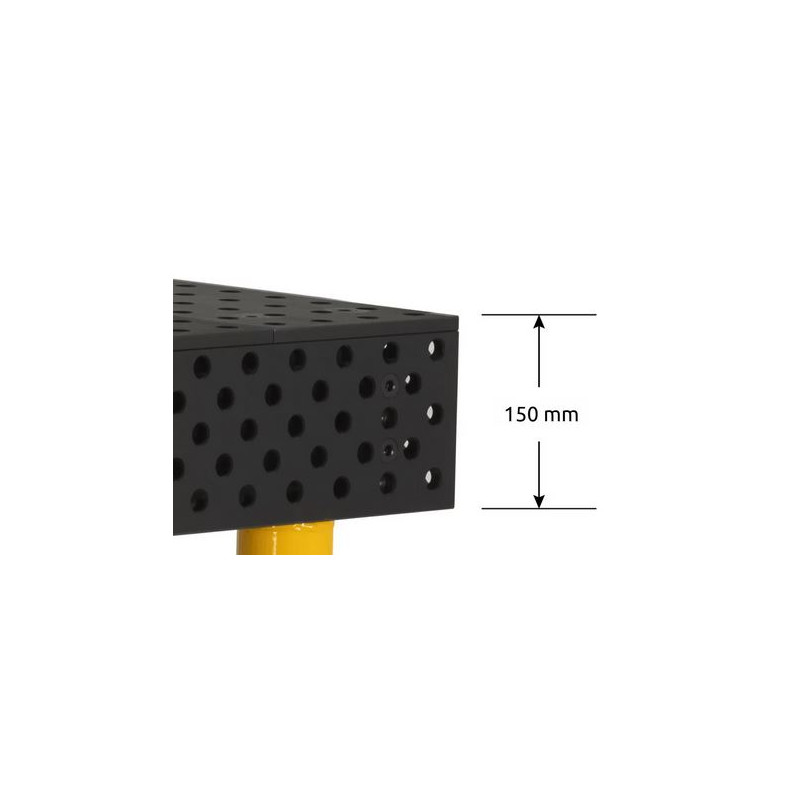

Alpha Tabletop Side Height

The new five-sided tables feature a 138 mm side plate combined with the top plate to create a 150 mm height.

Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.

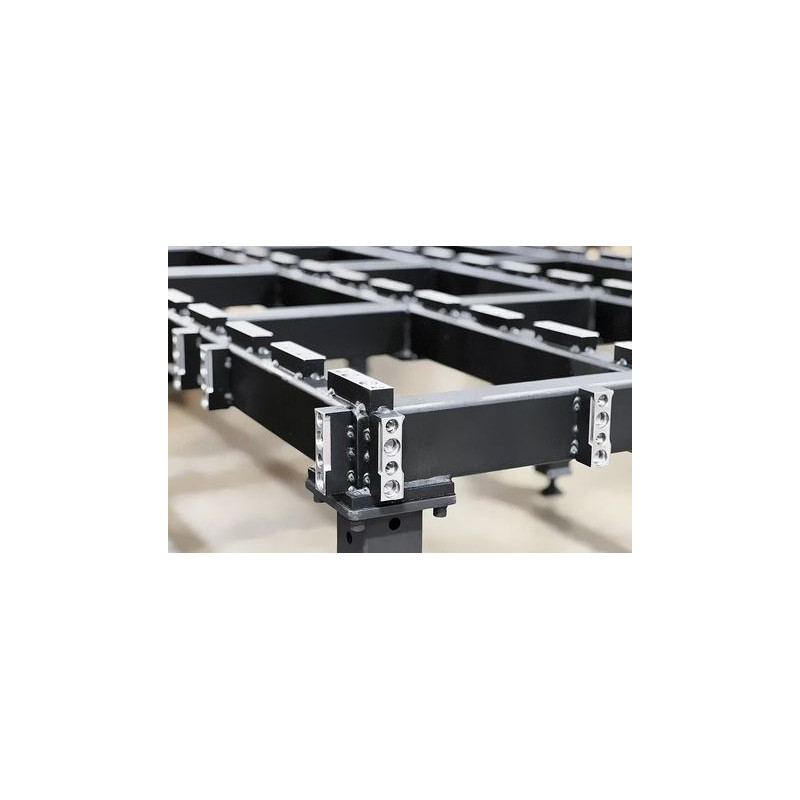

Plate Mounting Detail for Side Plates

Side Plates also use self locating bushing system.

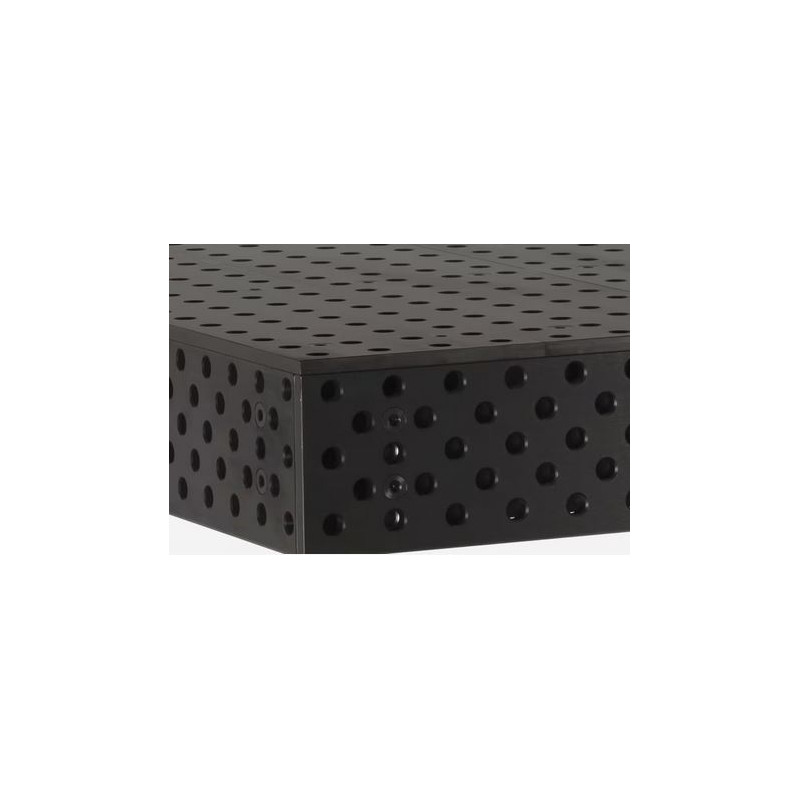

Nitrided (Heat-Treated) Tabletop

All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC(top) / 50-55 HRC(side), and finished with a nitrite coating with a case depth of 0.01 - 0.02 mm.

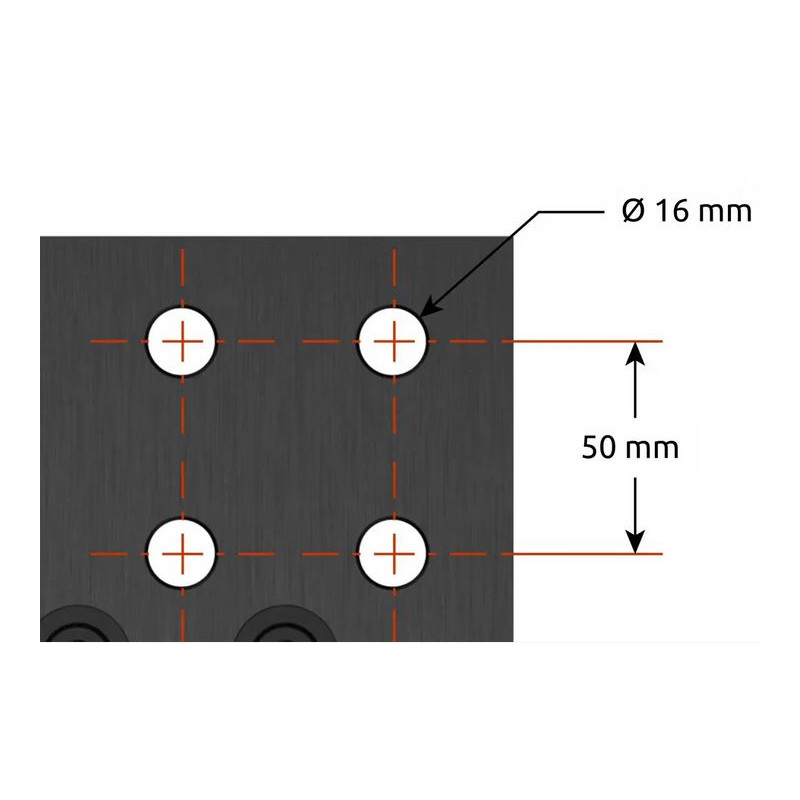

Hole system

Hole diameter: 16 +0.20/-0 mm

Hole spacing: 50 ±0.050 mm

Large chamfer at the top for easy insertion.

Chamfer also at the bottom to maximize the clamping force of the screw.

Table Accuracy

Hole Diameter:	16 mm
Hole Spacing:	50 mm
Table Flatness:	±0.125 mm per 600 x 600 mm
Plate Thickness:	12 ±0.12 mm
Tabletop Finish:	Nitrided (Heat-Treated)
Surface Hardness:	58-62 HRC
Coefficient of Friction:	0.37

Top Plate	Side Plate
Material: P20	Material: Q345B
Hardness: 58-62 HRC	Hardness: 50-55 HRC

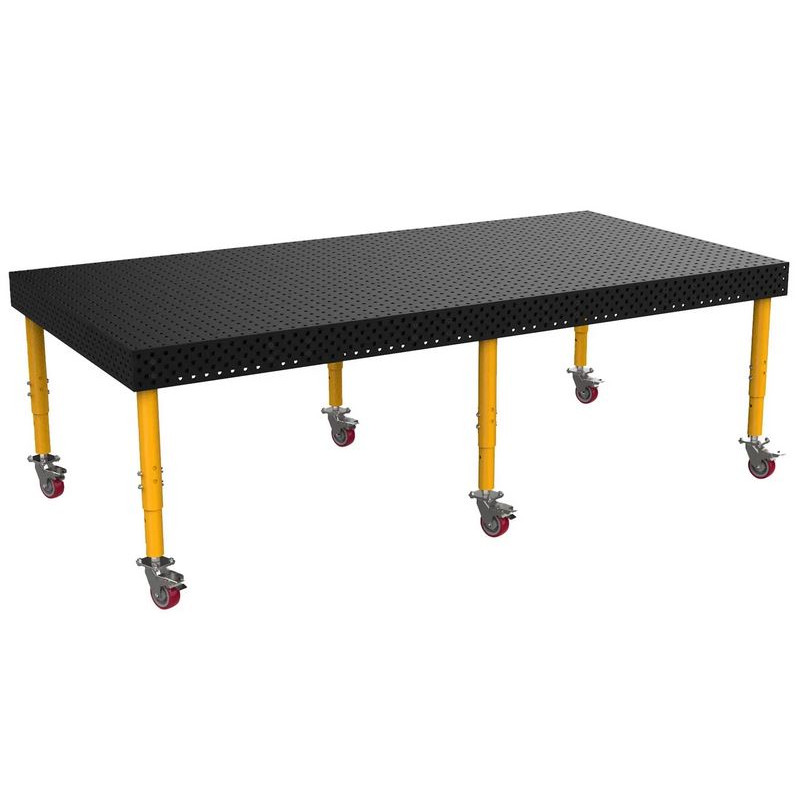

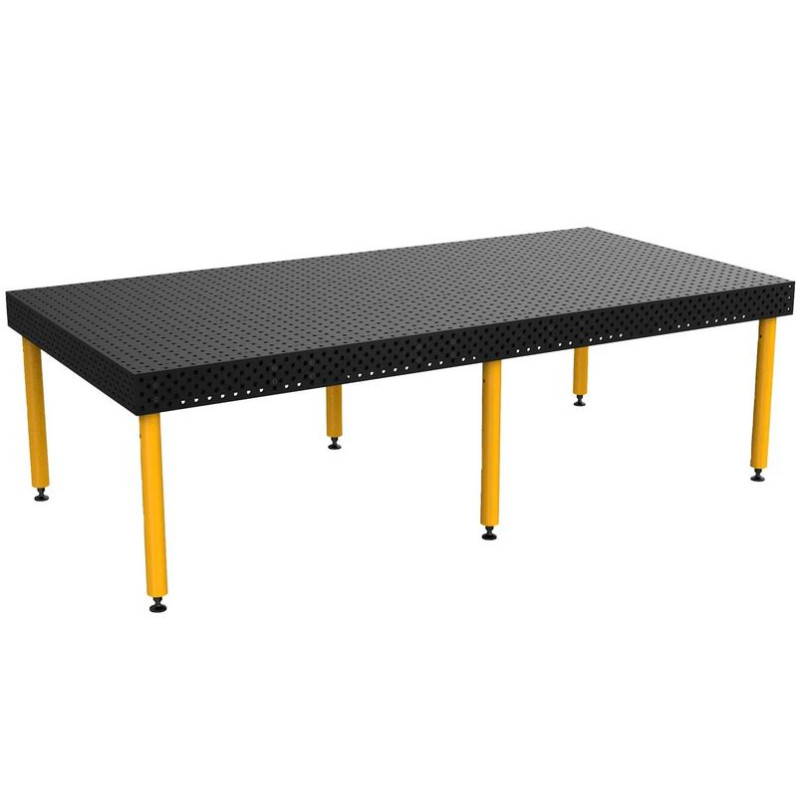

Leg versions


Diameter - 76 mm Height - 617 mm Thread - M20 Capacity per Leg - 680 kg	Diameter - 76 mm Height - 767 mm Thread - M20 Capacity per Leg - 680 kg	Diameter - 76 mm Height - 565-819 mm Thread - M20 Capacity per Leg - 680 kg	Diameter - 76 mm Height - 685-939 mm Thread - M20 Capacity per Leg - 300 kg
