Performance parameters

Manufacturer

Stronghandtools

Handling mode

manual use

Weight

1588 [kg]

Tabletop size [mm]

3000 x 1500

Table height range [mm]

600 ~ 1100

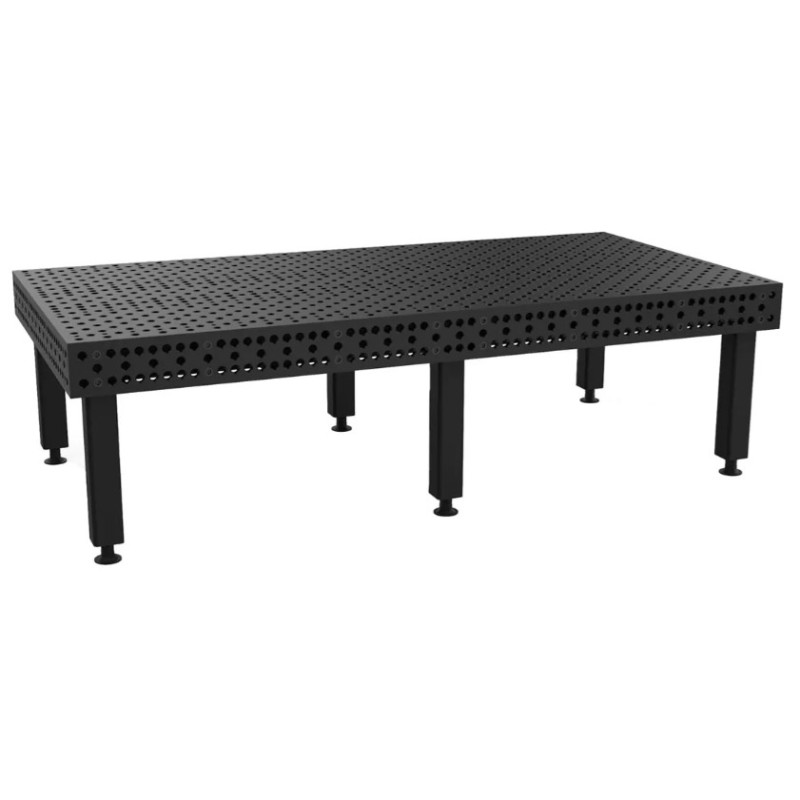

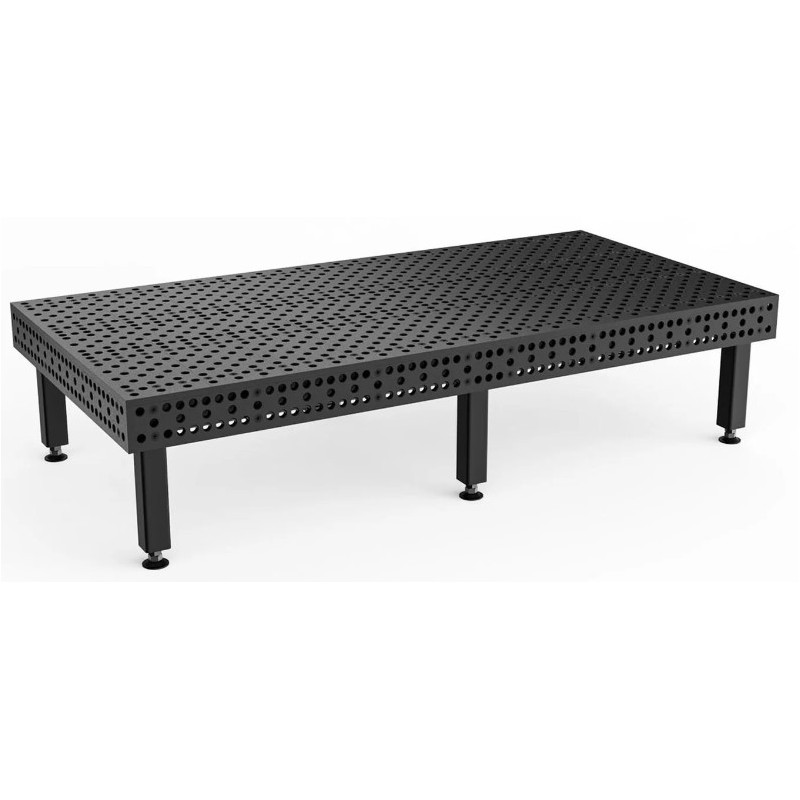

Welding table Alpha 28, 3000 x 1500 mm Stronghandtools

Introducing the Alpha series of welding tables from Strong Hand Tools. These tables feature a highly durable construction and precision craftsmanship.
The Alpha family of tables consists of panel systems combined with patented, reversible and interchangeable top and side plates, making them more versatile.

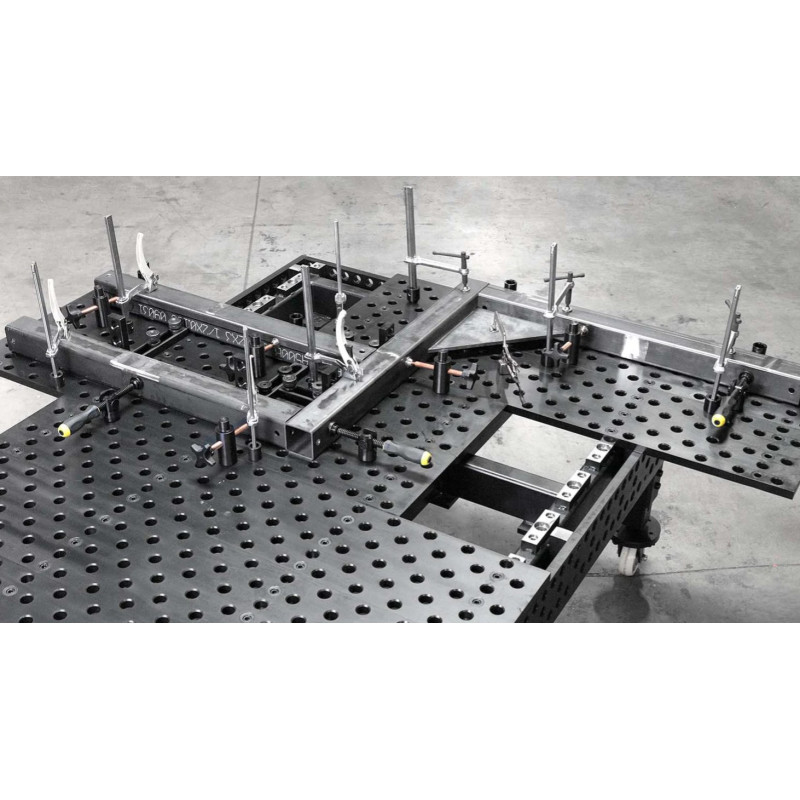

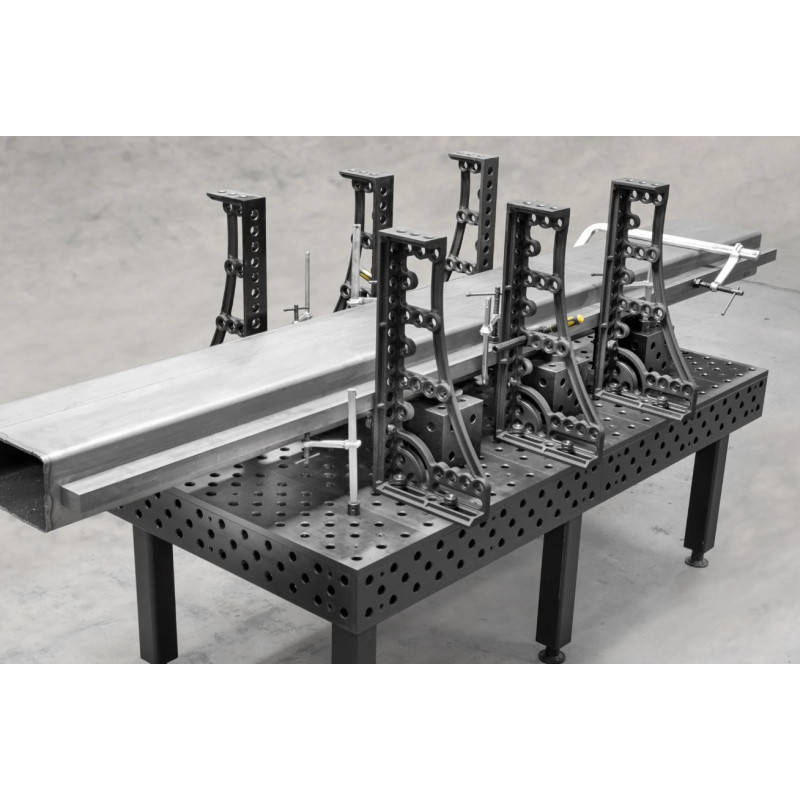

The only modular welding table with very high strength and adjustable, self-positioning, reversible table plates. It offers unlimited possibilities for clamping elements for welding and machining. Precise adjustment, positioning and clamping of elements ensures higher quality and convenience of welding.
The Alpha 28 series welding tables were designed in response to customer demand for an affordable, durable, metric welding table. The Alpha 28 series has 5 sides equipped with 28 mm diameter holes, providing greater versatility and expandability than ever before. It meets industry-leading requirements for flatness, squareness and dimensional accuracy.

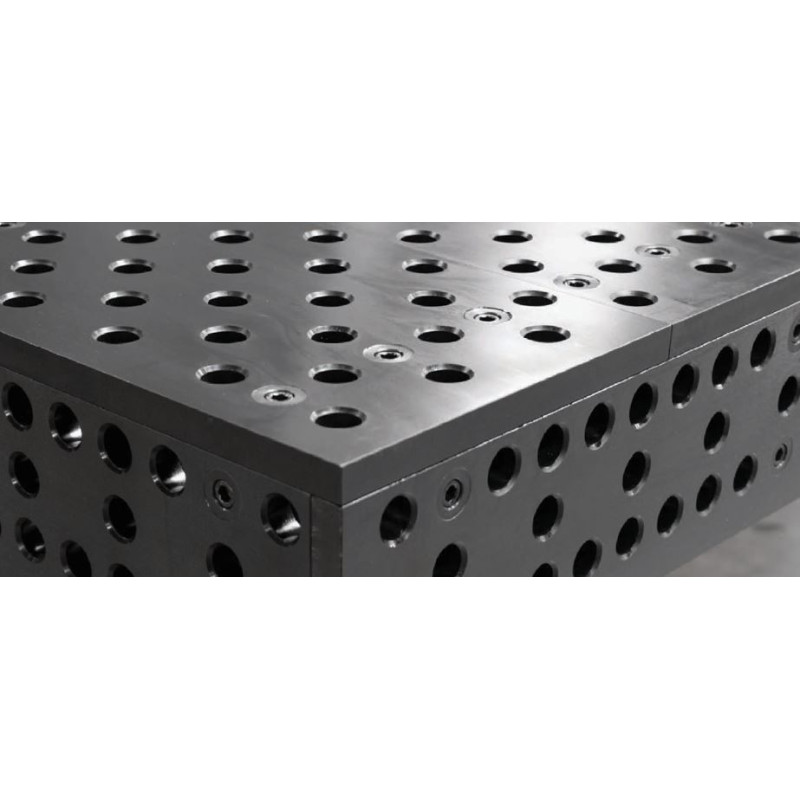

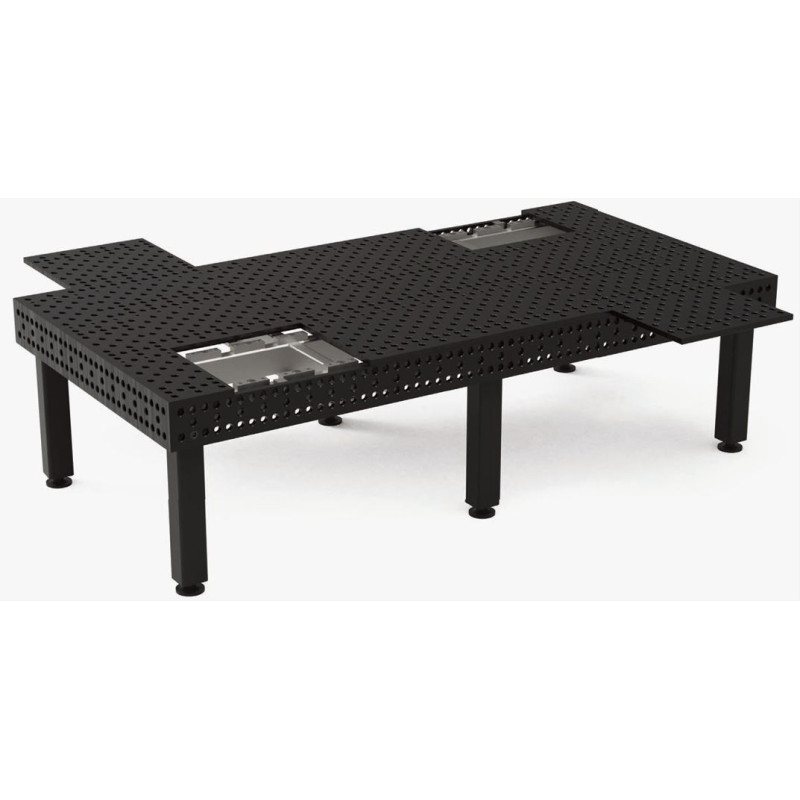

Table Top Plates are made from tough P20 low alloy tool steel for a 60.5 HRC hardness, then CNC machined for flatness QPQ Nitriding Treatment provides corrosion and weld spatter resistance, delivering excellent performance and wear resistance with a surface hardness of 58-62 HRC. Patented, self-locating Table Plates can be repositioned, then easily realigned to the original position. Reposition the table plates as needed to increase the width of the table for oversized or complex fixtures.


Each leg can be loaded up to 2,000 kg. 2X LIFE! Plates can be reversed to use both sides, which doubles the table lifespan.



Features of Alpha 28 tables

System Borehole

Hole Diameter: 28 +0.20/-0 mm
Hole Spacing: 100 ±0.050 mm

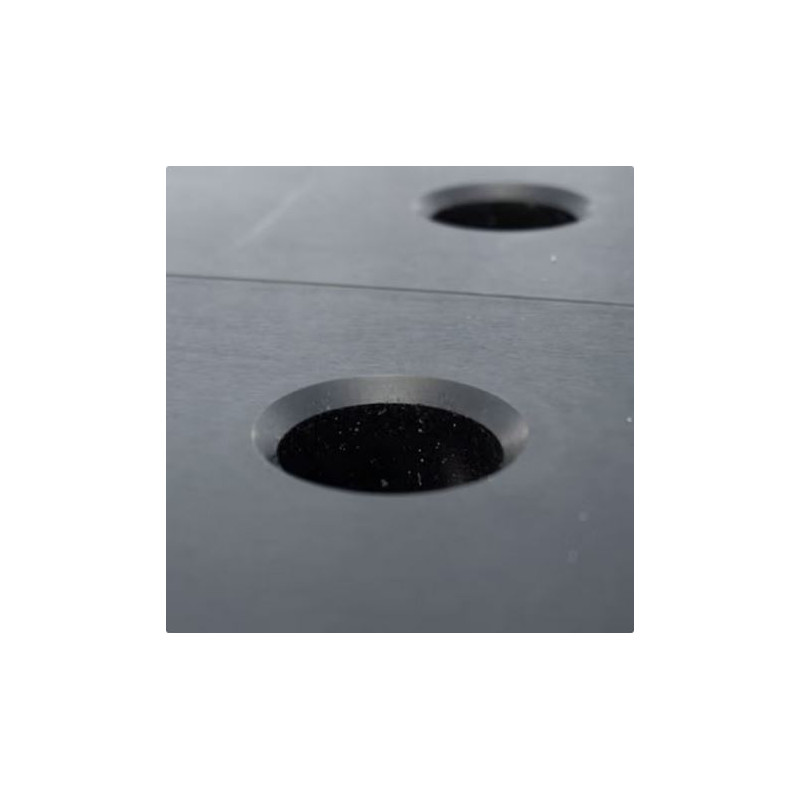

Large chamfer on top for easy insertion. Chamfer on underside as well to maximize bolt clamping force.



Material Thickness

Plate Thickness: 25 ±0.06 mm
Tabletop Finish: Nitrided (Heat-Treated)
Coefficient of Friction: 0.37



Table Surface

Table Flatness: ±0.125 mm per 600 x 600 mm
Material: P20
Surface Hardness: 58-62 HRC
Base Material Hardness: 25.1-29.6 HRC

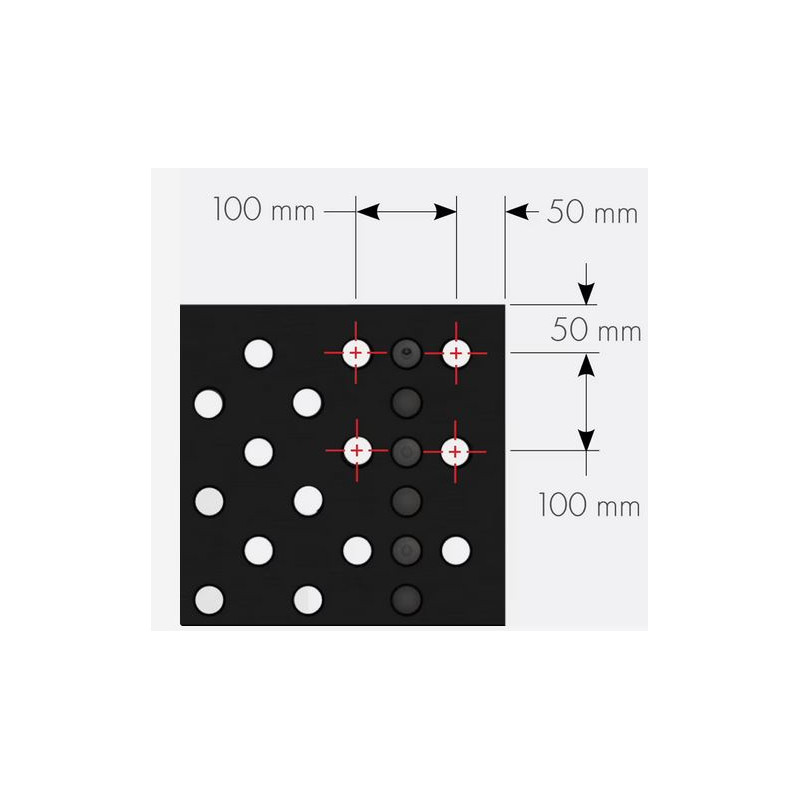

Borehole spacing 100 mm with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid.

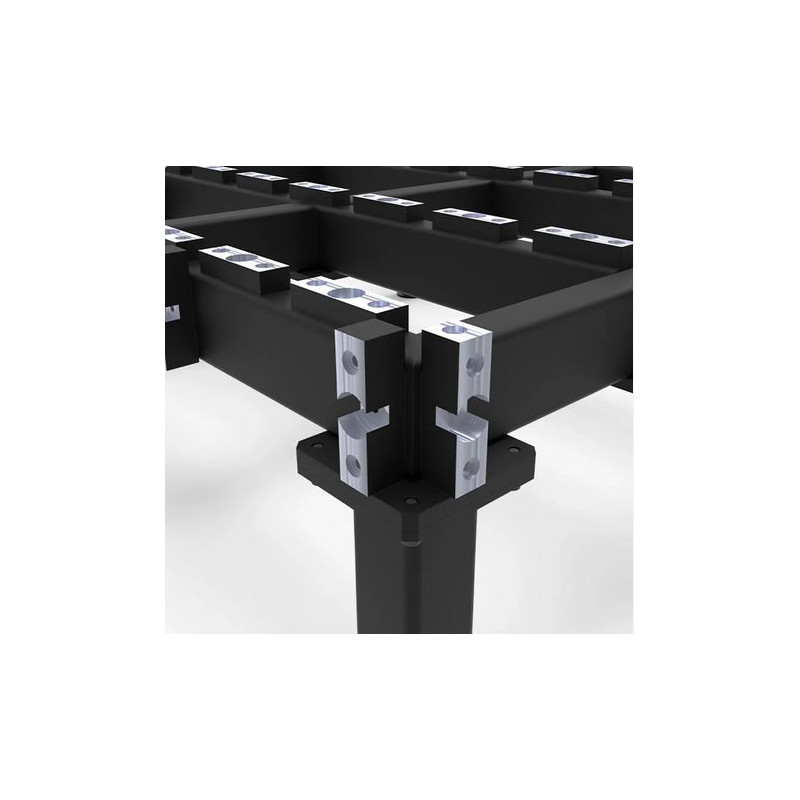

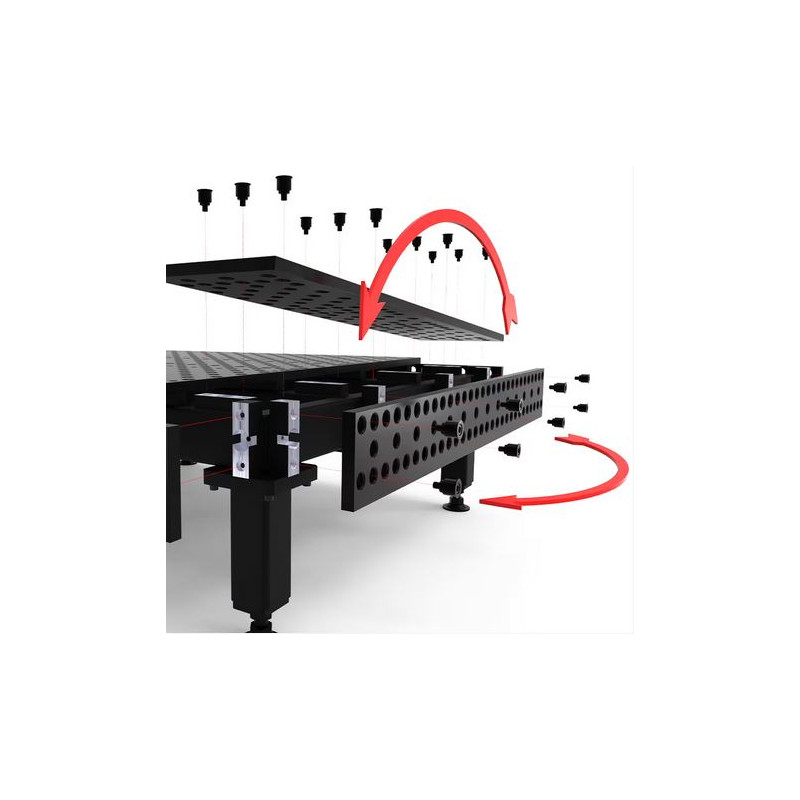

Self-Locating Plate System for Top and Side Plates

Locating features in the table frame and plate combine with our locator bushings for self alignment.



Table Side Panel

Material: Q35B
Hardness: 50-55 HRC

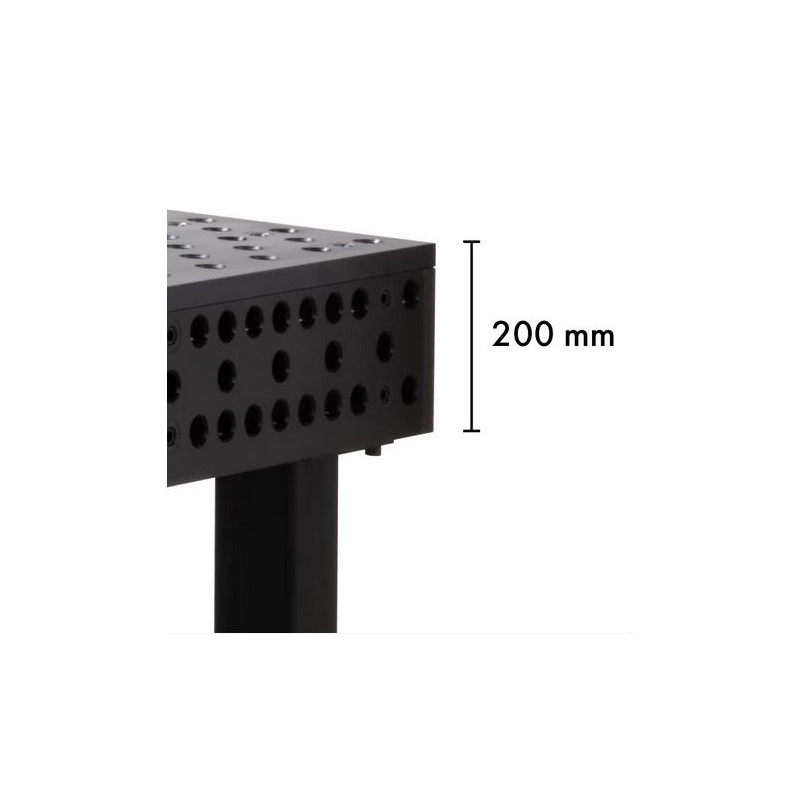

Tabletop: 200 mm high



Plate Mounting Detail for Side Plates

Side Plates also use self locating bushing system.

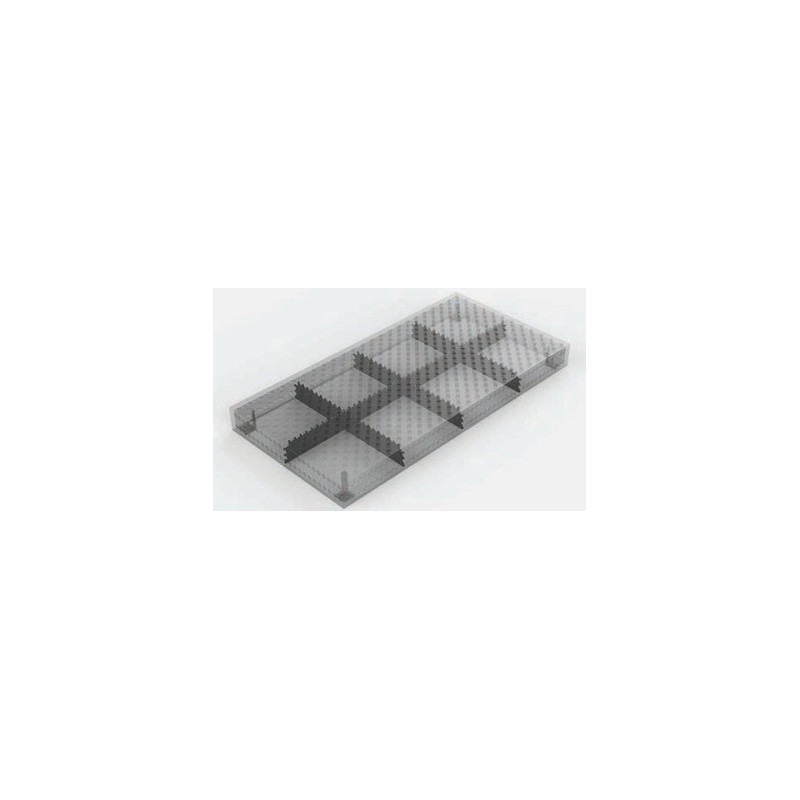

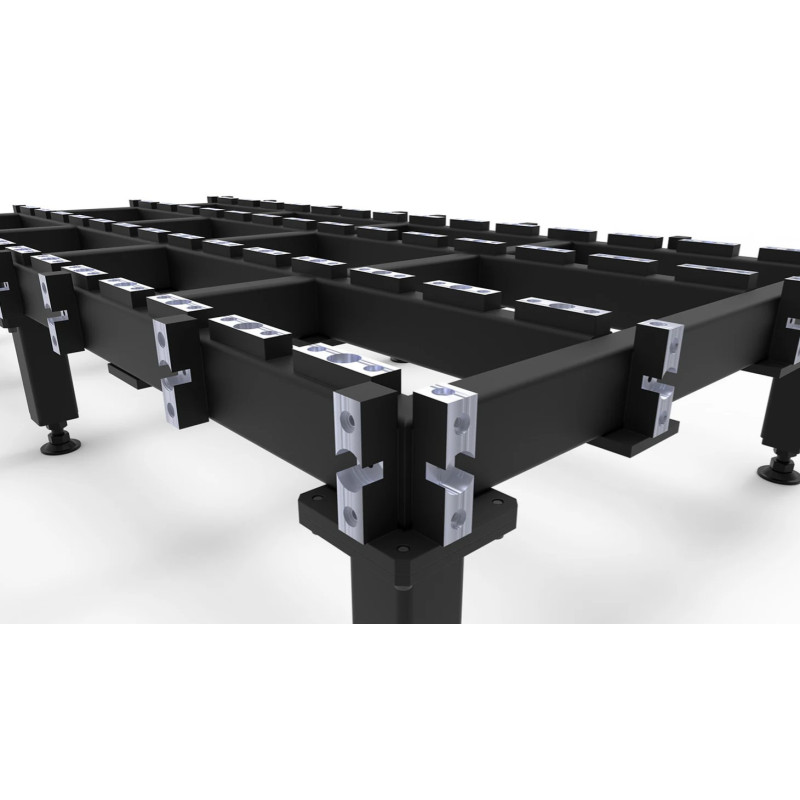

Stronger, More Rigid Frame

The tubular frame construction of the Alpha 28 table provides better flatness and torsional rigidity compared to frames made entirely of sheet metal. The rigid frame with modular plates in the Alpha 28 model means less unevenness and less twisting compared to welded structures. Welded structures made exclusively of sheet metal often lead to deformation and unevenness in the corners and in the centre.

Standard welded sheet metal construction

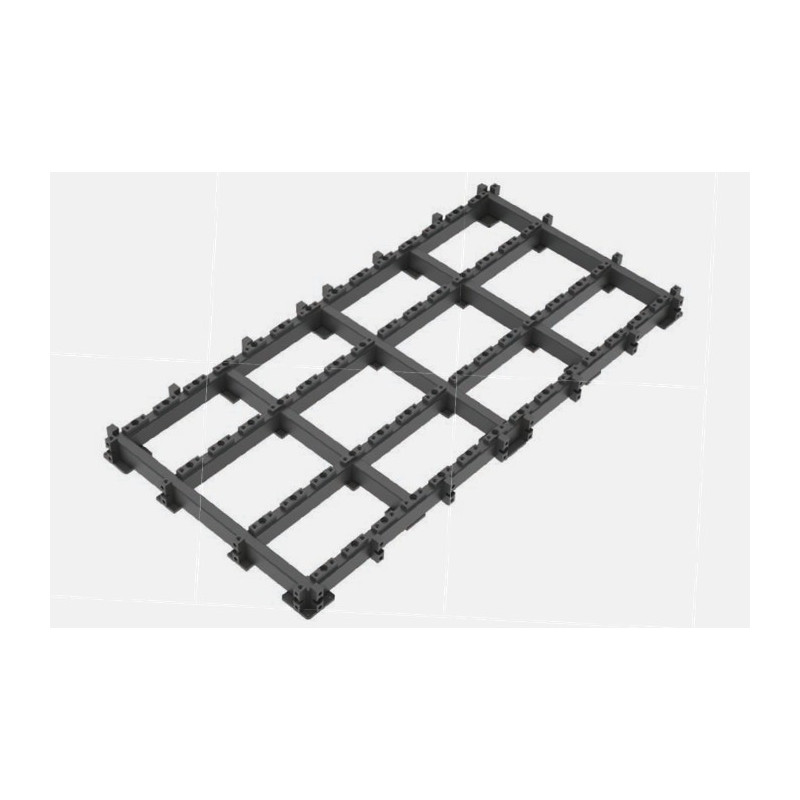

Tubular Frame Design Alpha 28

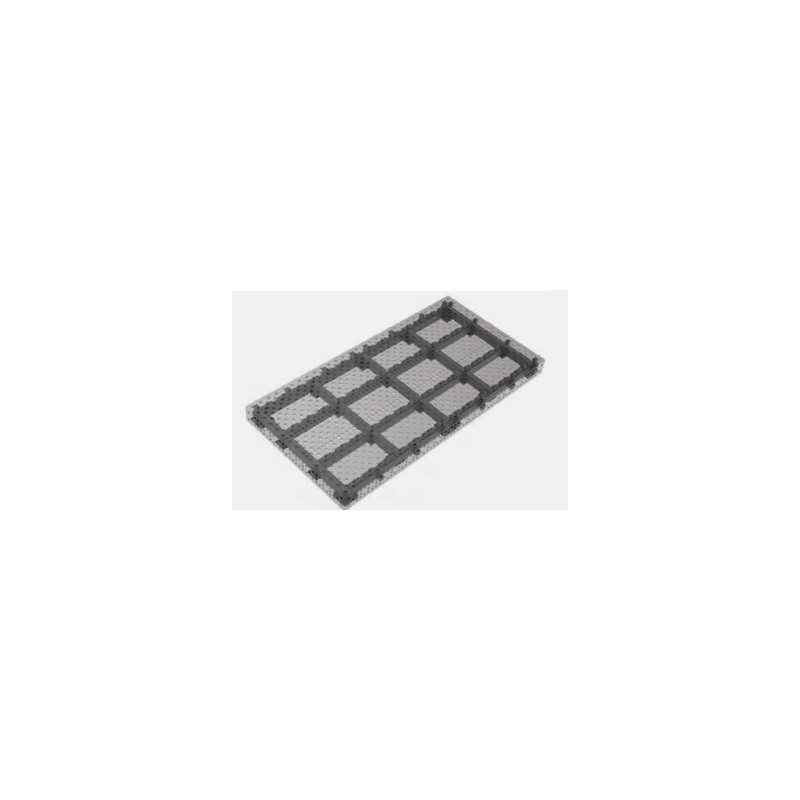

Ribbing – load capacity over 10 metric tonnes


Table Accuracy

Hole Diameter: 28 + .20/-0 mm
Hole Spacing: 100 ±0.05 mm
Table Flatness: ±0.125 mm per 600 x 600 mm
Plate Thickness: 25 ±0.06 mm
Tabletop Finish: Nitrided (Heat-Treated)
Surface Hardness: 58-62 HRC
Coefficient of Friction: 0.37

Top Plate Side Plate
Material: P20 Material: Q345B
Hardness: 58-62 HRC Hardness: 50-55 HRC

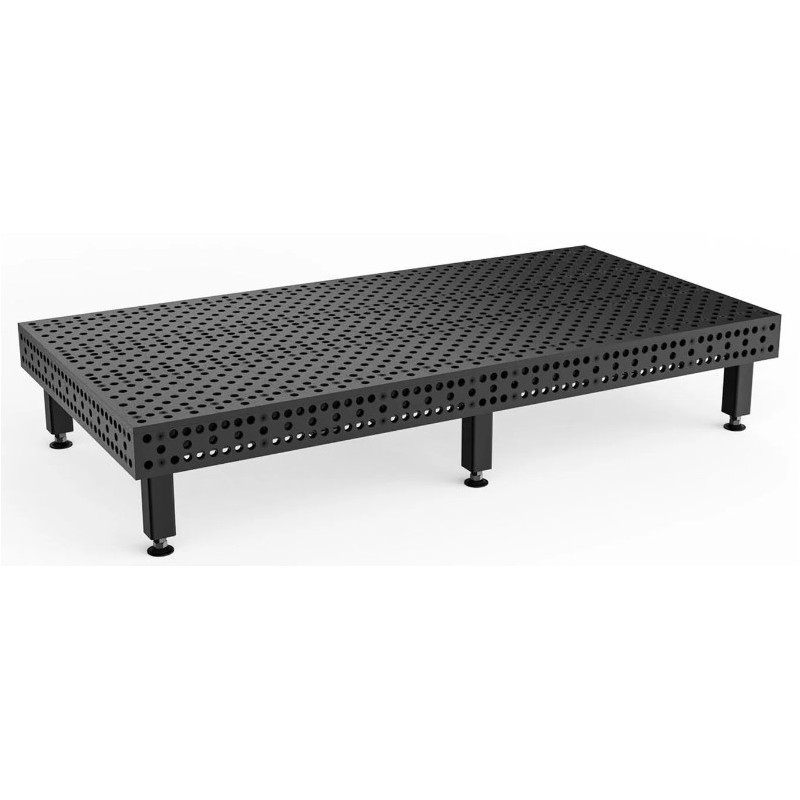

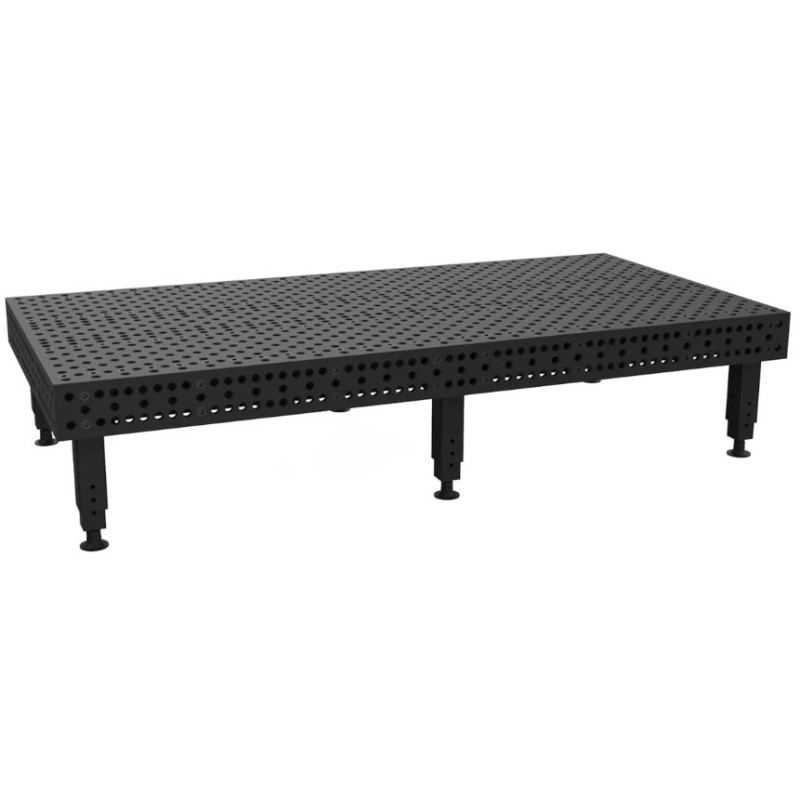

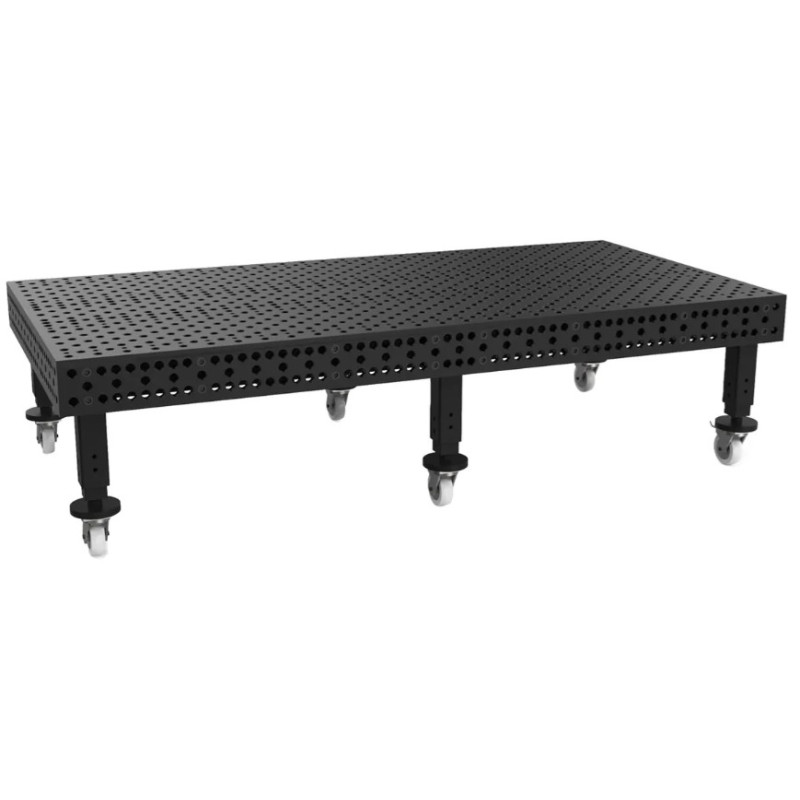

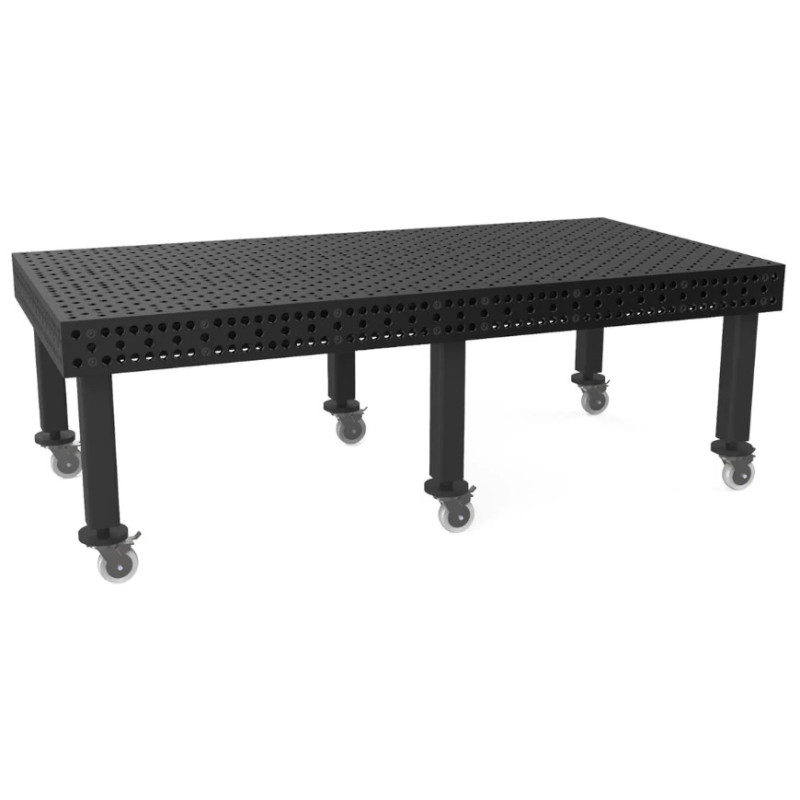

Leg versions


Hight - 400 mm
Hight - 500 mm
Hight - 650 mm
Hight - 550-750 mm
Hight - 650 mm
Hight - 550-900 mm

The price applies to a table equipped with fixed legs 650 mm in length.

To purchase a table with other leg versions, please contact us by email at shop@enesmagnets.pl


Quick and easy leg installation


Each leg comes with four M12 bolts and washers for mounting on the flanges at the bottom of the table frame.

Levelling feet with spindles at the bottom of the legs allow for precise adjustment and levelling.

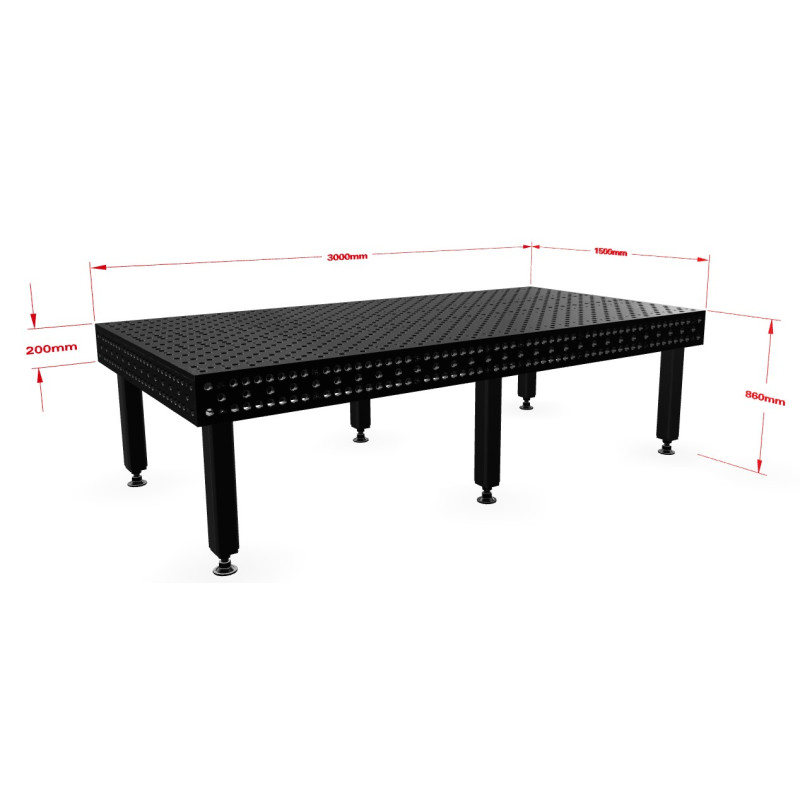

Tabletop size [mm] Leg length [mm] Table surface height [mm] Capacity [kg] Gross weight [kg]
3000 x 1500 400 600 6000 1580
3000 x 1500 500 700 6000 1585
3000 x 1500 650 850 6000 1588










Tabletop size [mm] Leg length [mm] Table surface height [mm] Capacity [kg] Gross weight [kg]
3000 x 1500 550-900 750 ~ 1100 6000 1650







Tabletop size [mm] Leg length [mm] Table surface height [mm] Capacity [kg] Gross weight [kg]
3000 x 1500 550-750 750 ~ 950 4800 1720







Tabletop size [mm] Leg length [mm] Table surface height [mm] Capacity [kg] Gross weight [kg]
3000 x 1500 650 850 4800 1656
