Manufacturer
Stronghandtools
Handling mode
manual use
Weight
247 [kg]
Tabletop size [mm]
1160 x 1150
Table height range [mm]
725 ~ 1100
Performance parameters

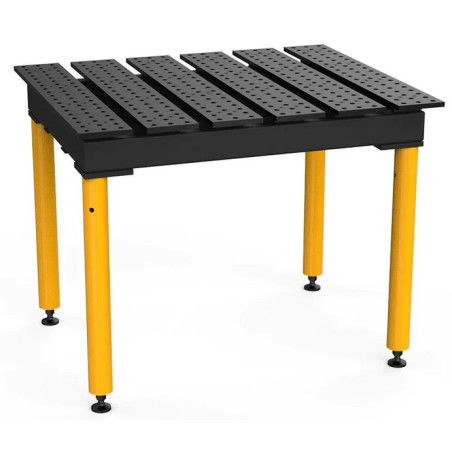

Welding table slotted MAX-nitrided, 1160 x 1150 mm Stronghandtools
Introducing the Max series of welding tables from Strong Hand Tools. These tables feature a highly durable construction and precision craftsmanship. The Max family of tables consists of panel systems combined with patented, reversible and interchangeable top plates, making them more versatile.
Our single-sided heavy-duty tables have holes on the top surface and are equipped with patented, self-positioning and reversible top plates. Precise setting, positioning and clamping of components ensures higher quality and convenience of welding. The tables have open slots between the top plates. These provide additional versatility by allowing clamping tools or pliers to be moved using T-Slot or Sliding Channel adapters on the open edges of the slots as clamping surfaces.
Max line welding tables are designed to meet customer demand for an affordable, durable, metric welding table. The tables meet industry-leading requirements for flatness, squareness and dimensional accuracy.

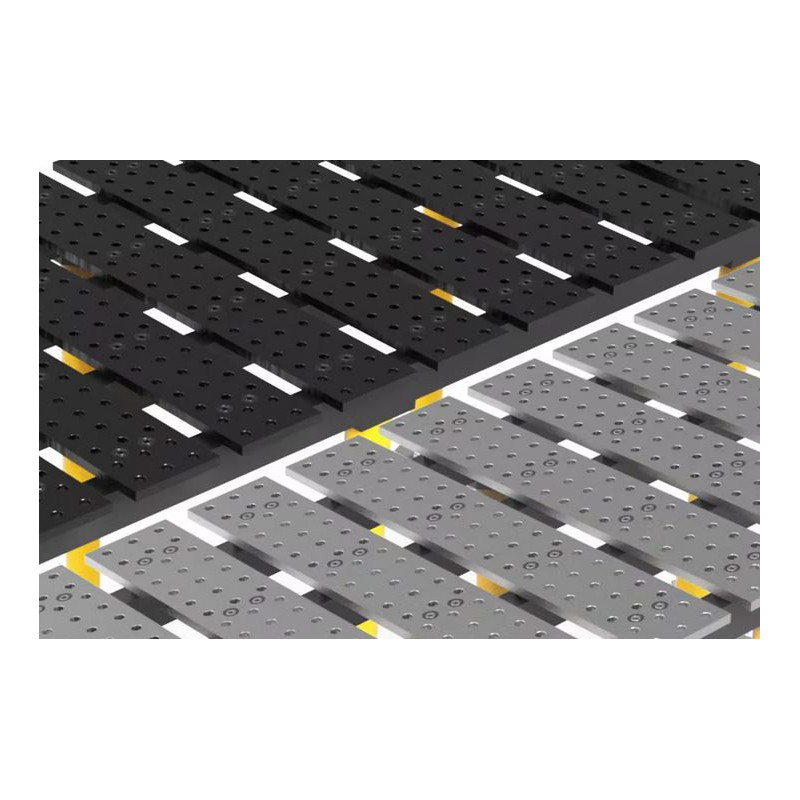

Max slotted tables are available with standard and nitrided top finishes.
Features of Max tables-slotted
 |

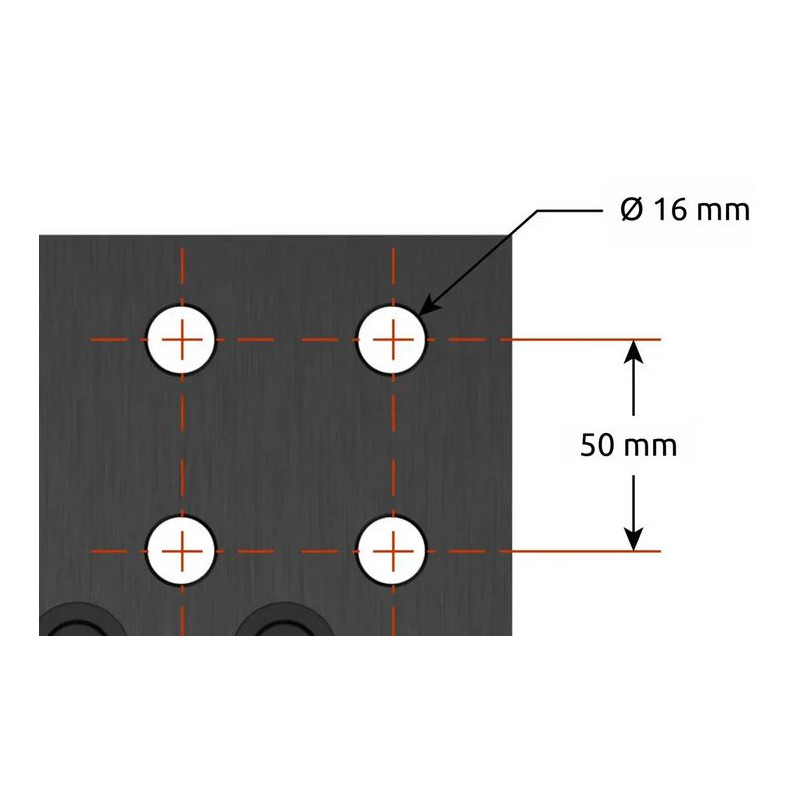

Hole system Hole diameter: 16+0.20/-0 mm Large chamfer at the top for easy insertion. |
 |
Table Accuracy Table Flatness: 0.3 mm per 1,000 mm
Hole Spacing: 50 mm
Hole Diameter: 16 mm
Plate Thickness: 16 mm |
 |

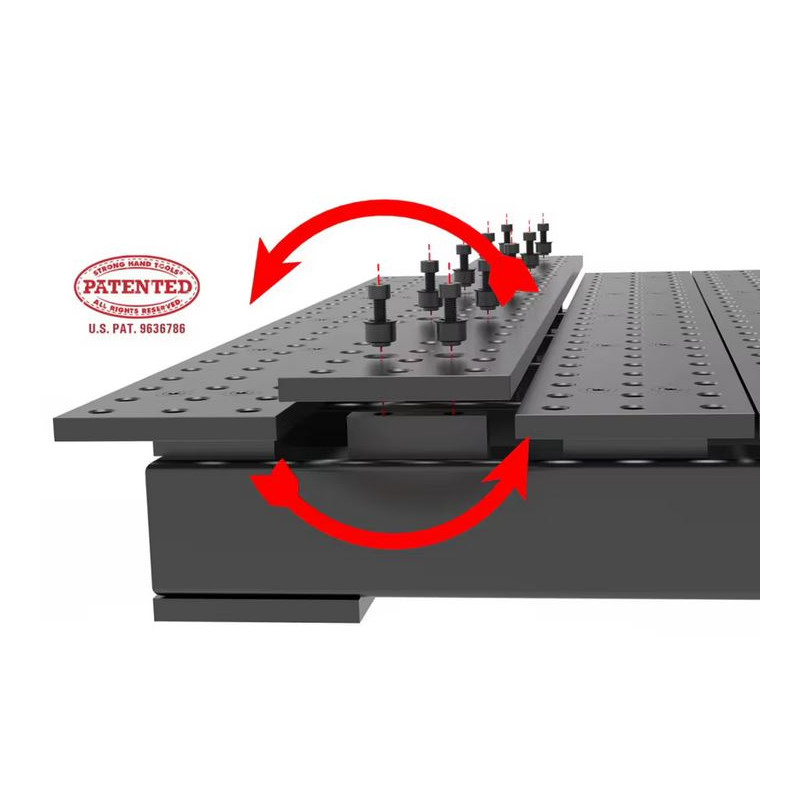

REVERSIBLE Self-Locating Plates Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates! 2X LIFE! The reversibility doubles the table lifespan. |
 |

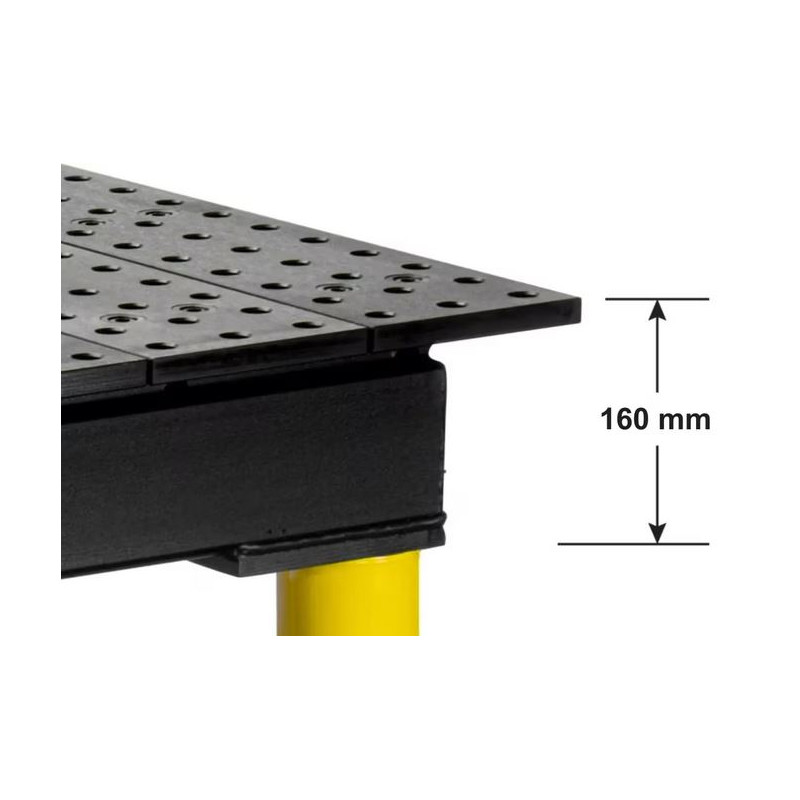

Tabletop Side Height 160 mm for both MAX and MAX Slotted tables |
 |
Standard (plain) / Nitrided Finish Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish. |
 |
Table gaps
All tables with gaps have 40 mm spacing between the boards.
|
Table Accuracy
| Hole Diameter: | 16 mm |
| Hole Spacing: | 50 mm |
| Table Flatness: | 0.3 mm per 1,000 mm |
| Plate Thickness: | 16 ±0.12 mm |
| Tabletop Finish: | Standard / Nitrided (Heat-Treated) |
| Surface Hardness: | 50-55 HRC / 58-62 HRC |
| Coefficient of Friction: | 0.37 |
| Nitriding depth | 0.01 – 0.02 mm |
Leg versions
 |
 |
 |
 |
| Diameter - 76 mm Height - 617 mm Thread - M20 Capacity per Leg - 680 kg |

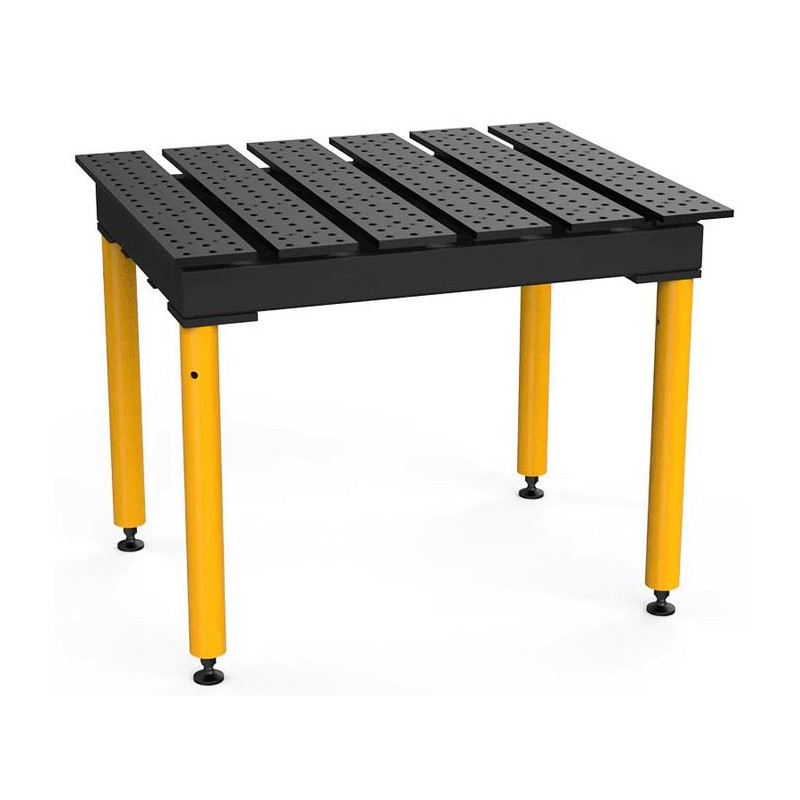

Diameter - 76 mm Height - 767 mm Thread - M20 Capacity per Leg - 680 kg |

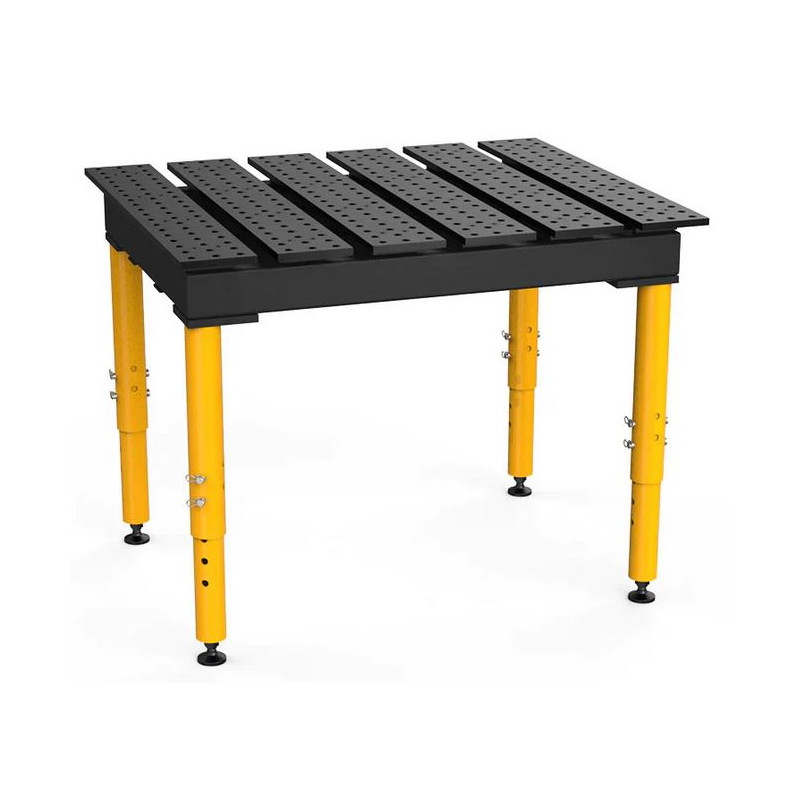

Diameter - 76 mm Height - 565-819 mm Thread - M20 Capacity per Leg - 680 kg |
Diameter - 76 mm Height - 685-939 mm Thread - M20 Capacity per Leg - 300 kg |
The price applies to a table equipped with 767 mm long legs.
To purchase a table with other leg versions, please contact us by email at shop@enesmagnets.pl
| Tabletop size [mm] | Leg length [mm] | Table surface height [mm] | Capacity per leg [kg] | Gross weight [kg] |
| 1160 x 1150 | 617 | 777 | 680 | 243 |
| 1160 x 1150 | 767 | 927 | 680 | 247 |
| Tabletop size [mm] | Leg length [mm] | Table surface height [mm] | Capacity per leg [kg] | Gross weight [kg] |
| 1160 x 1150 | 565-819 | 725 ~ 979 | 680 | 251 |
| Tabletop size [mm] | Leg length [mm] | Table surface height [mm] | Capacity per leg [kg] | Gross weight [kg] |
| 1160 x 1150 | 685-939 | 845 ~ 1100 | 300 | 266 |
TMQD61211SV
3 Items
Specific References
Delivery time: 10-14 working days
