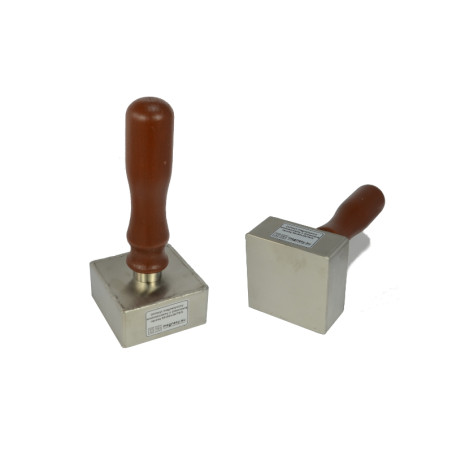

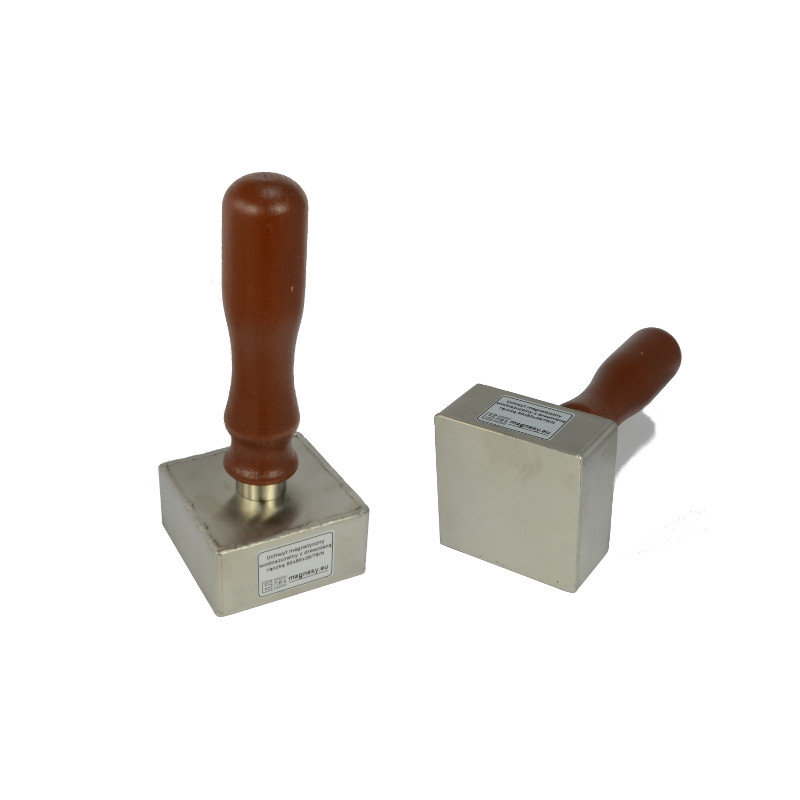

Holding magnet (waterproof) with wooden handle 80x80x38/78/N

Holding magnet with wooden handle 80x80x38/78/N

The maximum pull force: ~249[kg]

Holding magnets with wooden handle are used to catch magnetic soft parts (shavings, screws, nails, etc). They may be used in the food industry (version available with a handle made ​​of stainless steel) as well as recycling, ceramics and more.

This holding magnet is closed in a housing made of AISI 304/EN 1.4301 acid-proof steel. In this way the magnet is not exposed to impacts or directly contact with water.

The magnetic mount is waterproof.

In the holding magnet sintered neodymium magnets (NdFeB) with wide range of activity were used.

The maximum working temperature for holding magnets involving neodymium magnets is 80oC.

The pull force given refers to hoisting capacity measured in optimal conditions, by using as a backing plate a sheet made of low-carbon steel, 10 [mm] thick, of smooth surface and with the force acting perpendicularly, in room temperature.

Notice: the pull force given should be treated as only a comparative value. An actual pull force depends on the following factors:

• air gap (a distance) between holding magnet and an attracted element
• material, of which an attracted element is made (the higher carbon proportion in steel, the smaller pull force)
• surface of an attracted element (the smoother the surface, bigger the pull force)
• direction of acting of detaching force (the biggest pull force is obtained with perpendicular acting of detaching force)
• thickness of an attracted element (the element cannot be too thin, because in such case part of magnetic flux is not used for closing of a magnetic circuit)
• working temperature (in temperature of 80°[C] pull force can be lower of up to 20 per cent).

We generally recommend individual checking of the holding magnet in any specific working conditions.

Weight of the holding magnet: ~2,0 [kg]
