External diameter
12 [mm]
Height
8 [mm]
Thread type
internal, M4
Magnet type
Neodymium
Maximal hoisting capacity
~4 [kg]
Coating
Nickel-plated (NiCuNi)
Maximum working temperature
≤ 80 [°C]
Weight
6,4 [g]
Performance parameters
The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

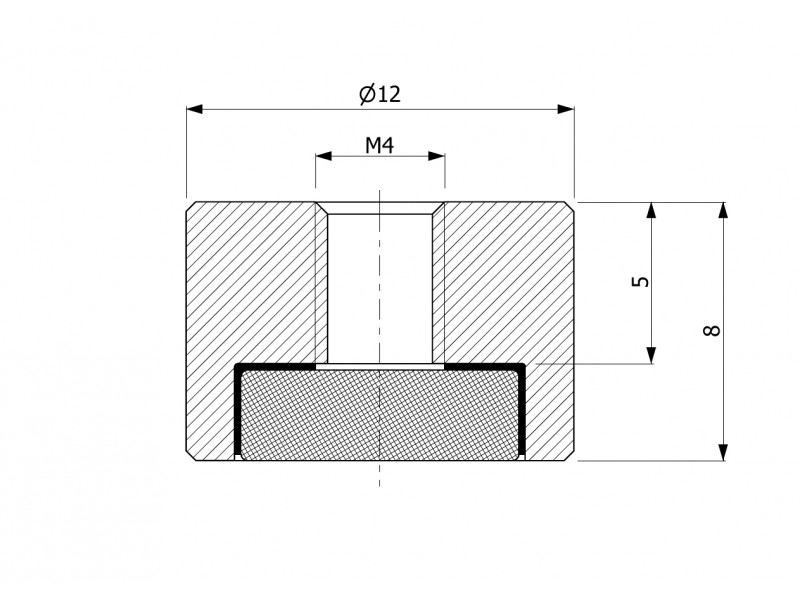

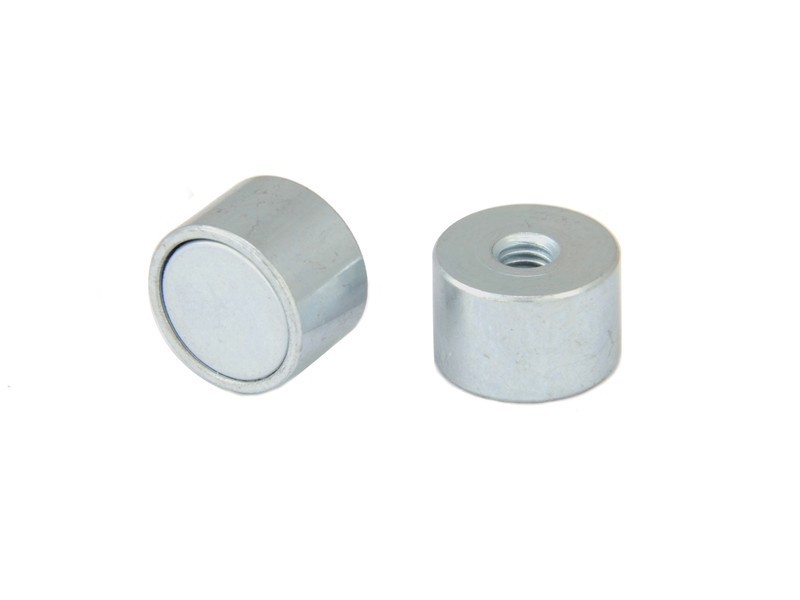

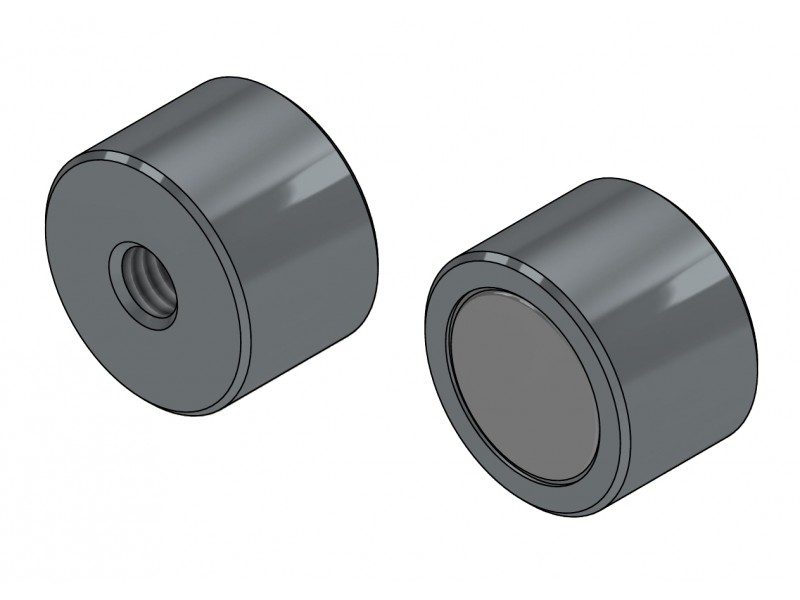

Neodymium pot magnet D12x8/M4/N
This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.
Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. There is an internal thread in the housing for attaching hooks or eye bolts. Direction of magnetization along the height. Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.
