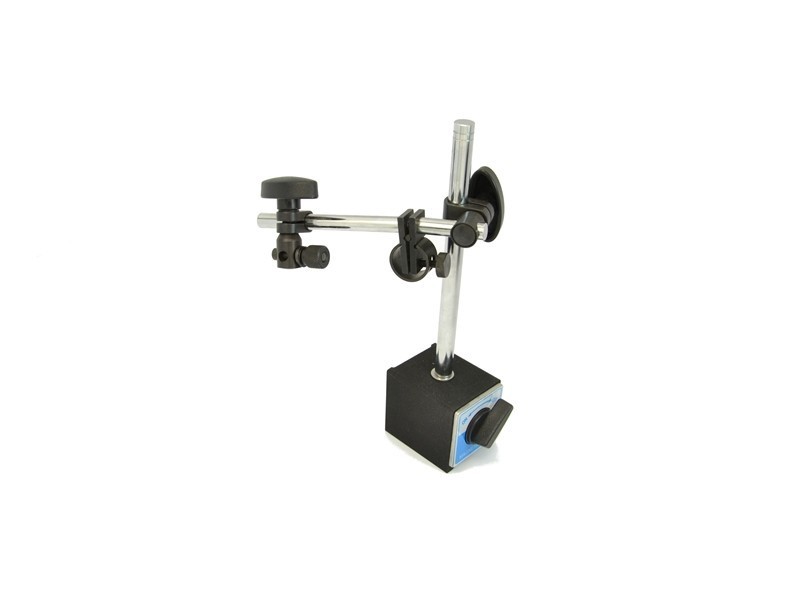

Magnetic stand SM-170
Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Length
60 [mm]
Width
50 [mm]
Height
55 [mm]
Thread type
internal, M8
Magnet type
Neodymium
Maximal hoisting capacity
~80 [kg]
Maximum working temperature
≤ 80 [°C]
With separable magnetic field
yes
Magnetic field switcher
yes, one for all planes
Range
175 + 150 mm (vertical+horizontal) [mm]
Weight
1.4 [kg]
Performance parameters
Magnetic tripod for dial indicators. Equipped with two swivel clamping lugs and a precision gauge on a horizontal arm. Magnetic base with switch with dimensions
(L x W x H): 60 x 50 x 55 mm, it has two fixing options: the bottom surface is suitable for mounting on flat and round components, while the side surface is suitable for fixing to flat components.
Pulling force of the magnetic base: max. 780 N (*.
(* - the load capacity of a tripod depends on several factors: thickness and roughness of the sheet metal (max. load capacity for sheet metal over 10 mm), type of material (e.g. steel, cast iron) and non-magnetic gap (thickness of paint coating, dirt, etc.).
STAT-MAG170P
