Length
175 [mm]
Width
90 [mm]
Height
40 [mm]
Accessory
transversal (flat) probe
Measured magnetic field
magnets, DC and AC magnetic field
Measure range
0-3000 mT
Power supply
Battery AA x4
Performance parameters

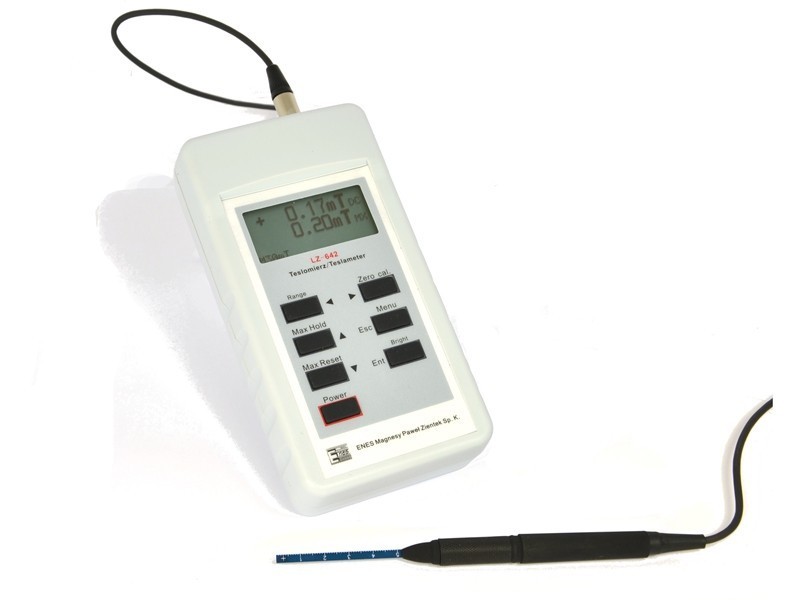

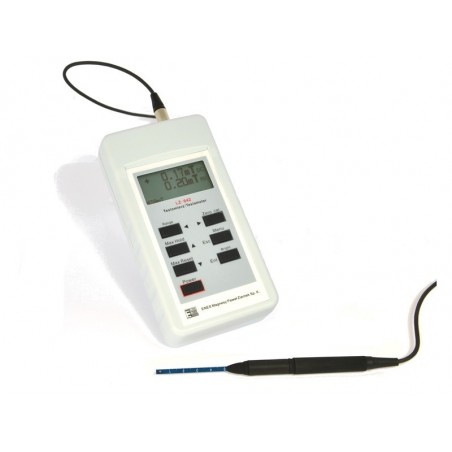

The LZ-642 teslometer (otherwise known as a teslameter, gaussmeter or hallotron meter) is a small, handy and practical device for measuring the intensity of the permanent magnetic field produced by permanent magnets as well as by direct current (DC) and the alternating magnetic field produced by alternating current (AC).
A flat probe is included:
- transverse (flat) probe with dimensions (L x W x D) 50 x 4.5 x 1.35 mm
for magnetic field measurements in a slot or on a magnetic surface
Depending on the intensity of the magnetic field to be measured, the device has two operating ranges. Each meter comes with: a one-year guarantee, a ‘CЄ’ declaration of conformity, a calibration certificate and an operating manual. The parameters of the device are shown below:
| Operating range for permanent field |
0-30 mT,0-300 mT, 0-3000 mT, auto |
| Operating range for variable field | 0-30 mT,0-300 mT |
| Resolution max. | 0,01 mT |
| Displayed units | mT, Gs, kA/m, Oe, |
| Measurement error in the permanent field |
+/-2 % + 0,1% scope |
| Measurement error in a variable field |
+/-5% measurement values+0,2% scope |
| Measuring mode |
in a constant or alternating magnetic field to 10 [kHz] |
| Measurement frequency |
every 0,4 sec. |
| Polarisation display |
N-S / +, - |
| Working temperature |
from 15°C to +35°C |
| Humidity |
35 – 75 % |
| Temperature coefficient |
+/- 0.6 %/measurement (outside the range 15-35°C) |
| Power supply |
battery AA 1,5V x 4 |
| Display |
LCD 2,5 inch |
Additional information:
- 1.35 mm thick transverse probe (allows measurement in very small gaps)
- 150 cm probe cable length
- very easy and quick calibration of the teslometer
- option to store the maximum measurement value
- up to 50 hours of continuous operation
- automatic switch off function or after a set time.
