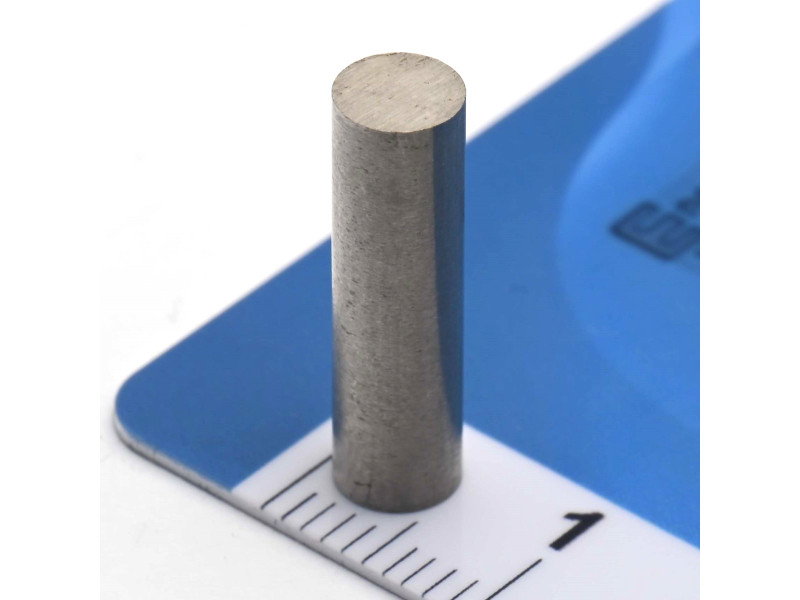

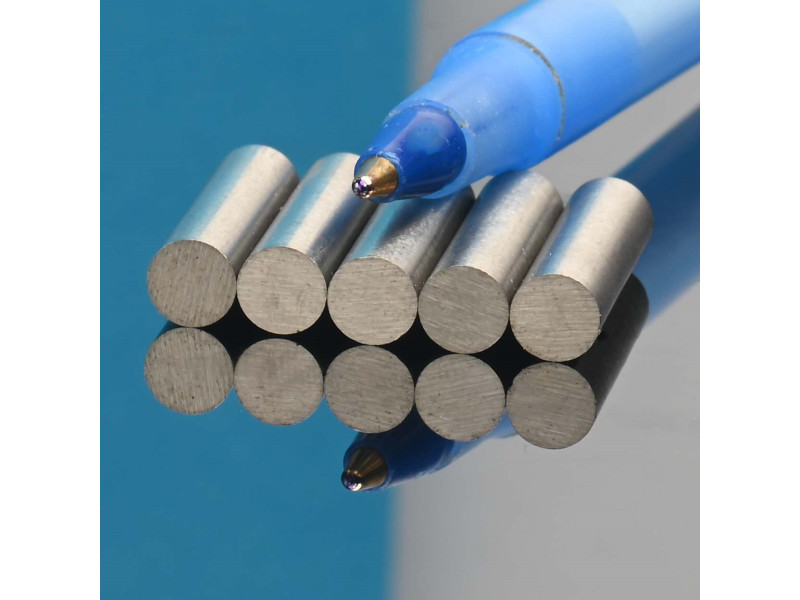

D5 x 18 / Alnico2 / LNG12 - AlNiCo magnet

D5 x 18 / Alnico2 / LNG12 - AlNiCo magnetD5 x 18 / Alnico2 / LNG12 - AlNiCo magnet€0.37

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €0.37 €0.46
Product unavailable

Ask a question
Performance parameters

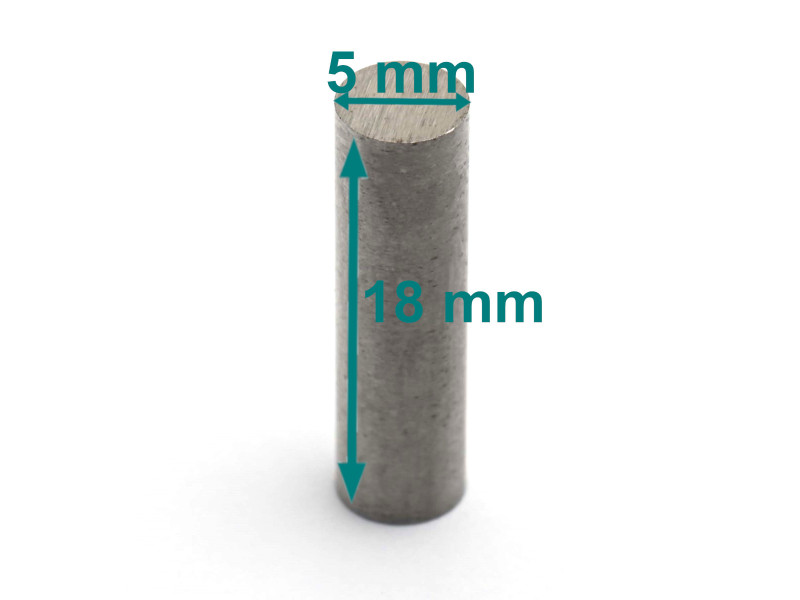

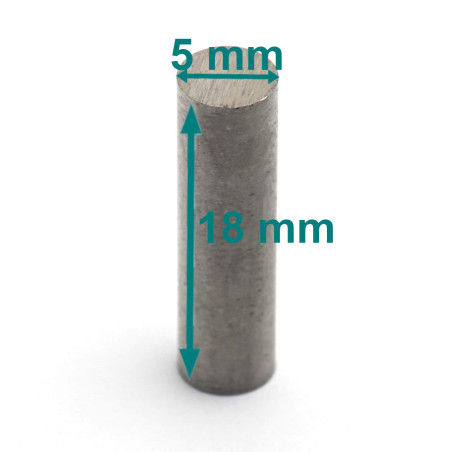

External diameter

5 [mm] +0,1/-0,1

Height

18 [mm] +0,1/-0,1

Magnetizing direction along dimension

18 [mm]

Direction of magnetization along the height (the last dimension included in a magnet name) means that the surface of a magnet perpendicular to its height makes the N-pole, while the other surface perpendicular to the height refers to the S-pole;.

Grade

LNG12

Magnet type

AlNiCo

Maximal hoisting capacity

0,16 [kg]

The magnetic force value given above, expressed in kilograms, was measured under ideal conditions. A thick iron plate with a smooth, unpainted surface was used. The force required to detach the magnet from the plate was perpendicular to the plate.

Magnetic field in geometrical center of the magnetic pole surface

0,049 [T]

Maximum working temperature

450 [°C]

For flat magnets and magnets mounted in the open magnetic circuit working temperature may be insignificantly lower. For high magnets and magnets mounted in the closed magnetic circuit working temperature equals max. working temperature for a given material. Curie’s temperature is ~ 860°[C]. Temperature coefficient of remanence TK(Br): ≤ -0,02 [%/°C]. Temperature coefficient of coercivity TK(HcJ): ≥ +0,02 [%/°C].

Magnetic moment

160,74 [nWb]x[m]

Weight

2,52 [g]

AlNiCo Magnets may be used in water.
The magnet parameter values presented here are the result of measurements taken on one specific magnet and are used to compare magnets available in the online shop. We recommend testing the magnet yourself under the expected operating conditions.
Magnetic properties of material grade LNG12

remanence Br

~0,7 [T]

coercivity HcJ

min. 44[kA/m]

The magnetic properties of the material are not identical for every magnet. The measurement results for different magnets will vary due to the inherent heterogeneity of the magnetic material and the measurement tolerances of the measuring device.
Physical proprieties

Density

~7,3 [g/cm3]

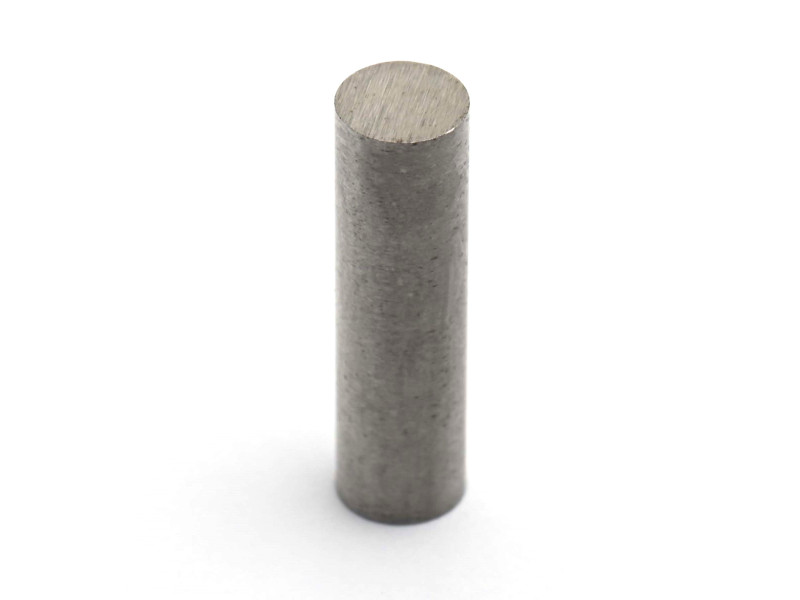

This magnet is circular, cylindrical, shaped like a cylinder or disc.

It is an AlNiCo magnet, magnetised along the height. It has two poles, which means it is double-sided.
These magnets are naturally resistant to corrosion, which is a great advantage. They are manufactured to excellent dimensional tolerances.
AlNiCo magnets have a record high operating temperature of no more than 525 degrees Celsius. AlNiCo magnets stick to metal surfaces.
The magnet can be attached to surfaces made of ferromagnetic materials.
