Length
1000 [mm]
Width
20 [mm]
Thickness
1,5 [mm]
Magnetizing direction along dimension
multipolar
Magnet type
Ferrite
Maximum working temperature
≤ 80 [°C]
Weight
180 [g]
Performance parameters
The magnet parameter values presented here are the result of measurements taken on one specific magnet and are used to compare magnets available in the online shop. We recommend testing the magnet yourself under the expected operating conditions.
Physical proprieties
density |
~3,8 [g/cm3] |

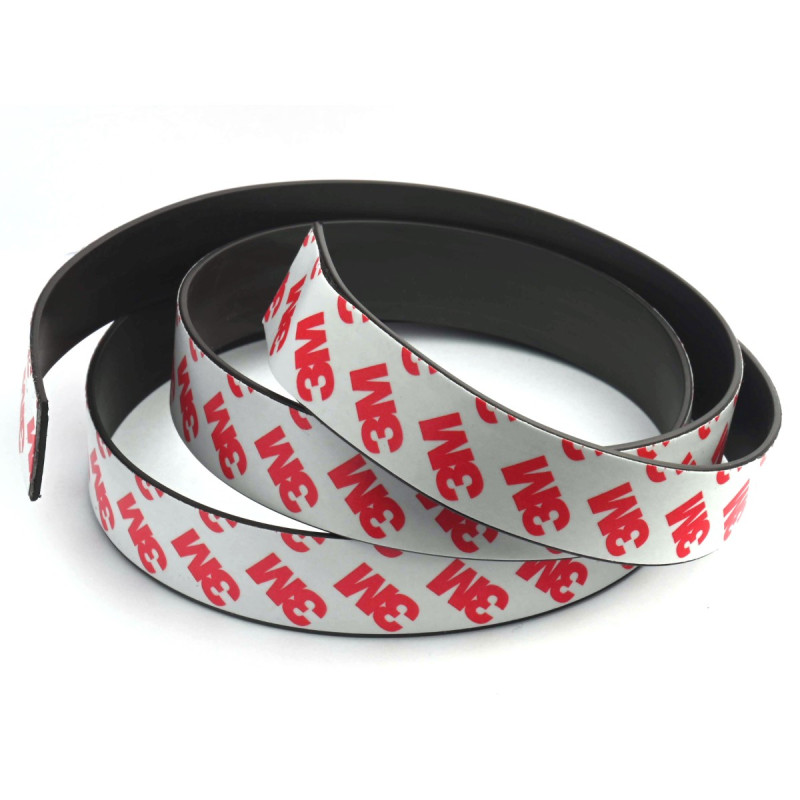

3M self-adhesive tape
The magnetic tape is 20 mm wide and 1,5 mm thick. Barium ferrite is used as the magnetically active substance in magnetic tape. Its specific advantage is flexibility and the possibility of cutting, breaking. Multipolar magnetised tape, as opposed to magnetic tape magnetised along the thickness, is characterised by a greater attractive force and is used to create tape-to-steel connections. The tape has 3M adhesive on one side, which makes it easy to attach to any surface.

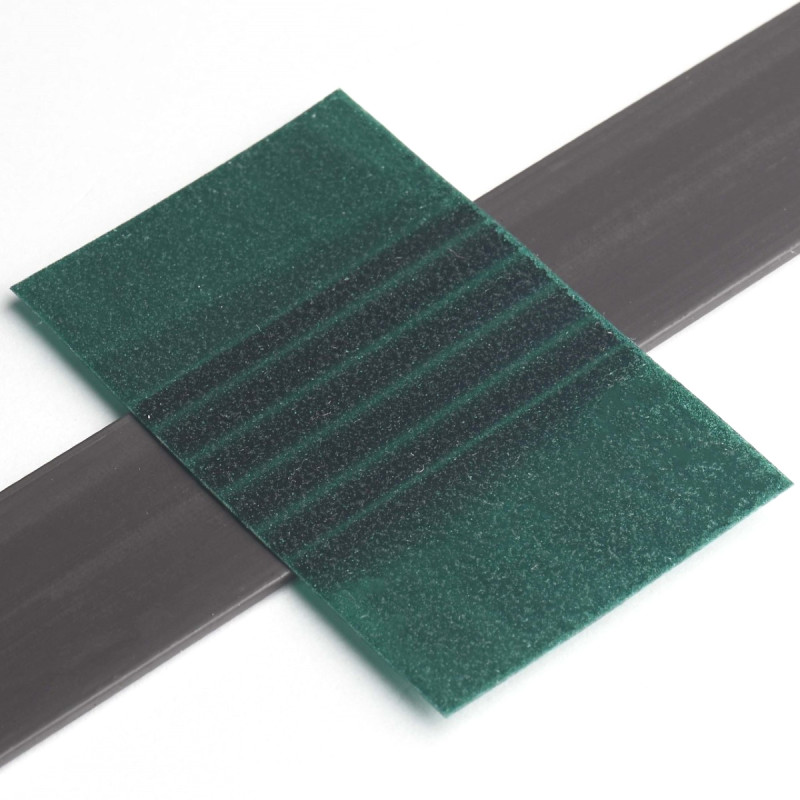

Multipolar magnetisation means that on both sides of the tape there are alternately several ‘N’ and ‘S’ magnetic poles arranged longitudinally.
The tape is available in 1 m strips.
Max. working temperature is approx. 80°[C]
Weight of 1 running meter of the stripe is: ~180 [g]
TASMA1000X20X1,5_3M
40 Items
Specific References
- EAN13
- 5906236810794
