Magnetic stripe 50 x 3 bipolar

Magnetic stripe 50 x 3 bipolarMagnetic stripe 50 x 3 bipolar€8.00

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 m. €8.00 €9.84
25 m. €6.50 €8.00
Product unavailable

Ask a question
Performance parameters

Width

50 [mm]

Height

3 [mm]

Magnetizing direction along dimension

3 [mm]

Magnet type

Ferrite

Maximum working temperature

≤ 80 [°C]

Weight

570 [g]

All the numbers quoted were obtained as a result of tests with one specific item in a room temperature and are intended to serve for comparison of practical magnetic properties of magnets offered by the shop.
Magnetic properties of material grade

remanence Br

0,225 [T]

coercivity HcB

min. 150 [kA/m]

coercivity HcJ

min. 180 [kA/m]

energy product (BH)max

min. 11,0 [kJ/m3]

Physical proprieties

density

~3,8 [g/cm3]

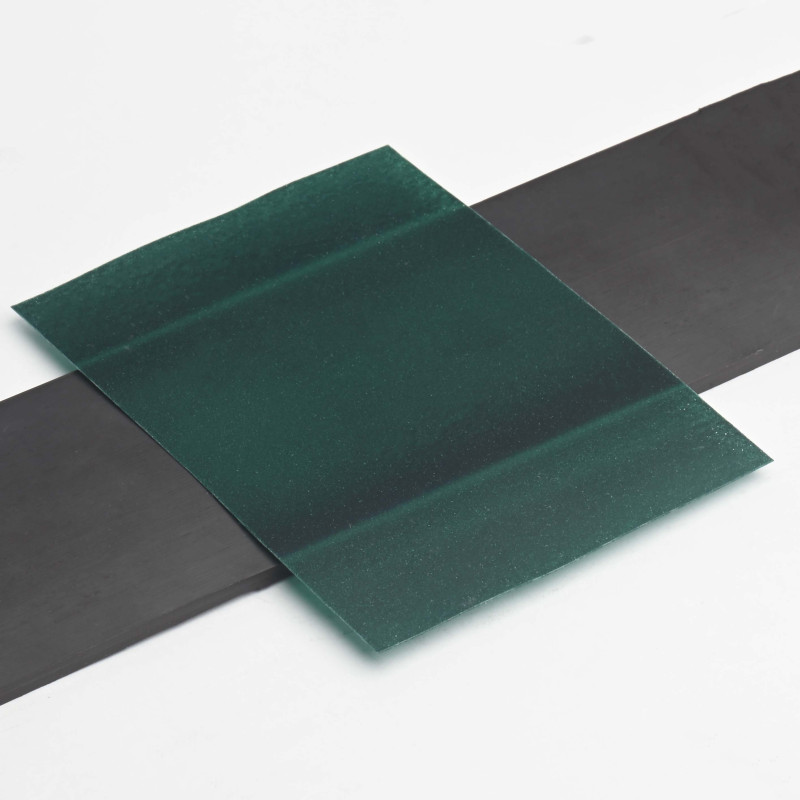

The magnetic tape is 50 mm wide and 3 mm thick. Barium ferrite is used as the magnetically active substance in magnetic tape.

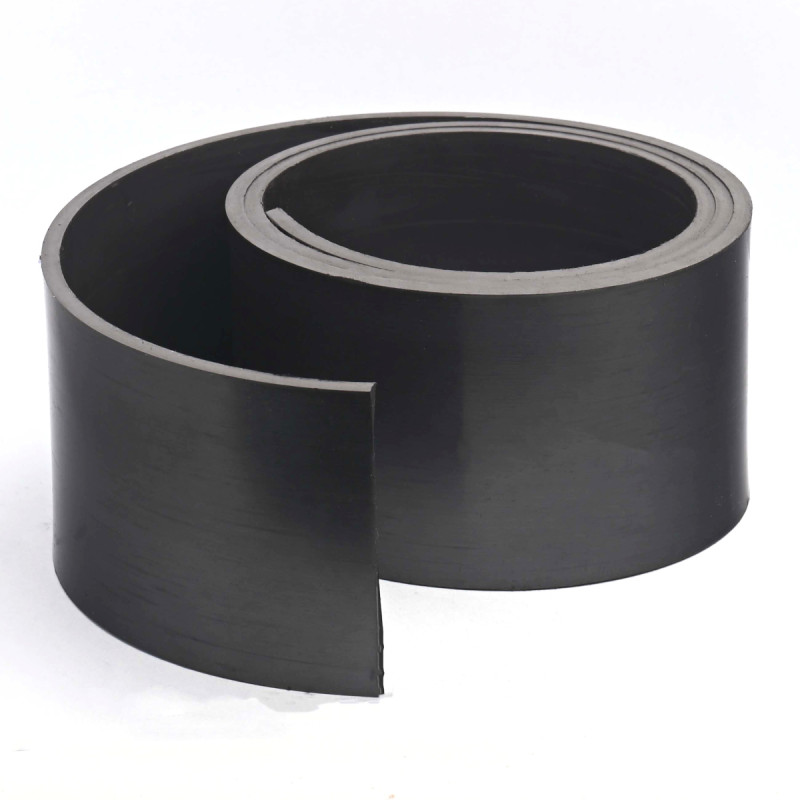

Bipolar magnetised tape, as opposed to multipolar magnetised tape, has a lower tensile strength and is used to form tape-to-tape or possibly tape-to-steel connections. When coiled, the result is a ring in which one pole is inside and the other outside the ring. It is used to work with halotron sensors.

The minimum length available for purchase is 1 mb = 1 piece. There are 25 mb in a roll.

Magnetic properties of material grade:

remanence Br min. 0,225 [T],
coercivity HcB min. 150 [kA/m],
coercivity HcJ min. 180 [kA/m],
energy product (BH)max min. 11,0 [kJ/m3]
Max. working temperature is approx. 80°[C]
Weight of 1 running meter of the stripe is: ~570 [g]
Weight of one roll (25 running meters) is: ~14,3 [kg].




TASMAM50X3DWU
