Length
40 [mm] +0,1/-0,1
Width
40 [mm] +0,1/-0,1
Height
15 [mm] +0,1/-0,1
magnetizing direction along dimension
15 [mm]
Grade
N35
Magnet type
Neodymium
Maximal hoisting capacity
37,88 [kg]
Magnetic field in geometrical center of the magnetic pole surface
0,299 [T]
Coating
Nickel (NiCuNi)
Maximum working temperature
≤ 80 [°C]
Magnetic moment
27236,368 [nWb]x[m]
Weight
180 [g]

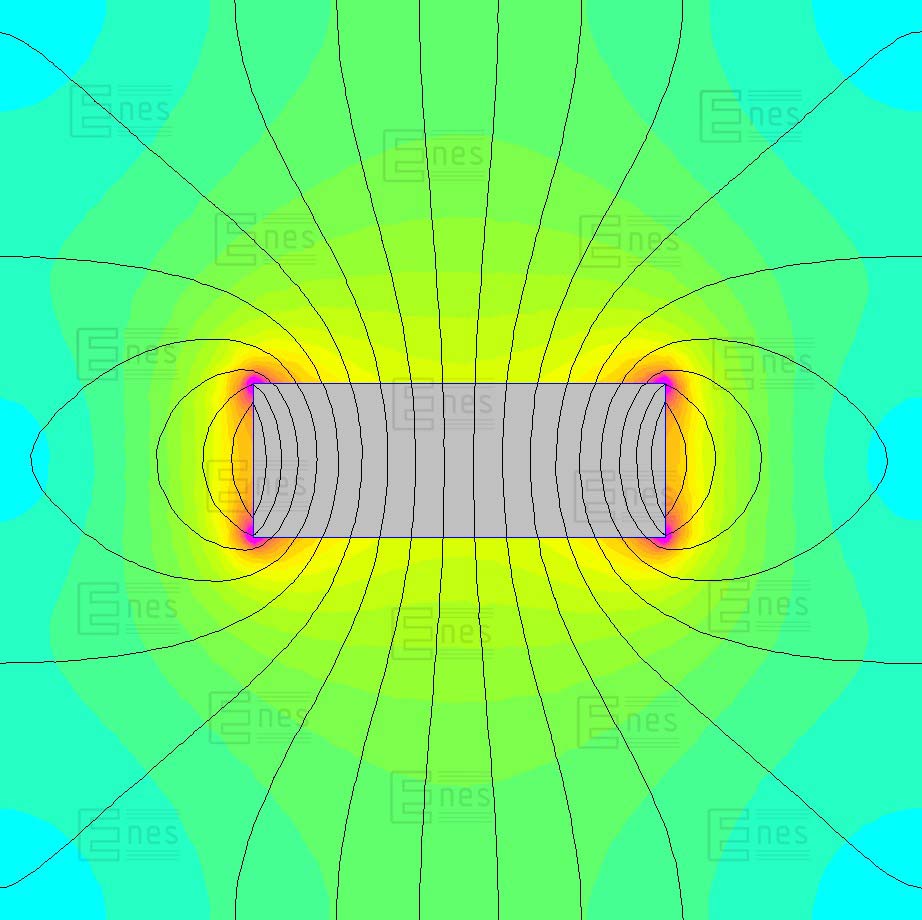

Performance parameters
Direction of magnetization along the height (the last dimension included in a magnet name) means that the surface of a magnet perpendicular to its height makes the N-pole, while the other surface perpendicular to the height refers to the S-pole;.
The pull force was measured by using metal sheet 10 [mm] thick, acting with perpendicular detaching force. With the force acting on the sliding off, the lifting capacity of the magnet will be 5 times smaller. The air gap comprised between the metal sheet and a magnet causes reduction in the pull force.
do not use in water
Sintered neodymium magnets are brittle (fragile). A neodymium magnet without housing could break after an impact with another strong magnet.
For flat magnets and magnets mounted in the open magnetic circuit working temperature may be insignificantly lower. For high magnets and magnets mounted in the closed magnetic circuit working temperature equals max. working temperature for a given material. Curie’s temperature is ~ 310°[C]. Temperature coefficient of remanence TK(Br: approx. ~0,12 %/°[C]. Temperature coefficient of coercivity TK(HcJ): approx. -0,6 %/°[C].
All the numbers quoted were obtained as a result of tests with one specific item in a room temperature and are intended to serve for comparison of practical magnetic properties of magnets offered by the shop.
Magnetic properties of material grade N35
remanence Br |
1,17 - 1,21[T] |
coercivity HcB |
min. 867 [kA/m] |
coercivity HcJ |
min. 955 [kA/m] |
energy product (BH)max |
263 - 286 [kJ/m3] |
| Magnetic properties of a particular material, together with its shape, volume, max. working temperature and direction of magnetization have influence on practical magnetic properties of a magnet. |
| As an example, you will find attached a graph of a course of the II quadrant of magnetic hysteresis loop for a material grade N35. |
Physical properties
Density |
~7,5 [g/cm3] |
Vickers’ hardness (HV) |
~600 [kg/mm2] |
Resistivity |
~144 [uOhm x cm] |
