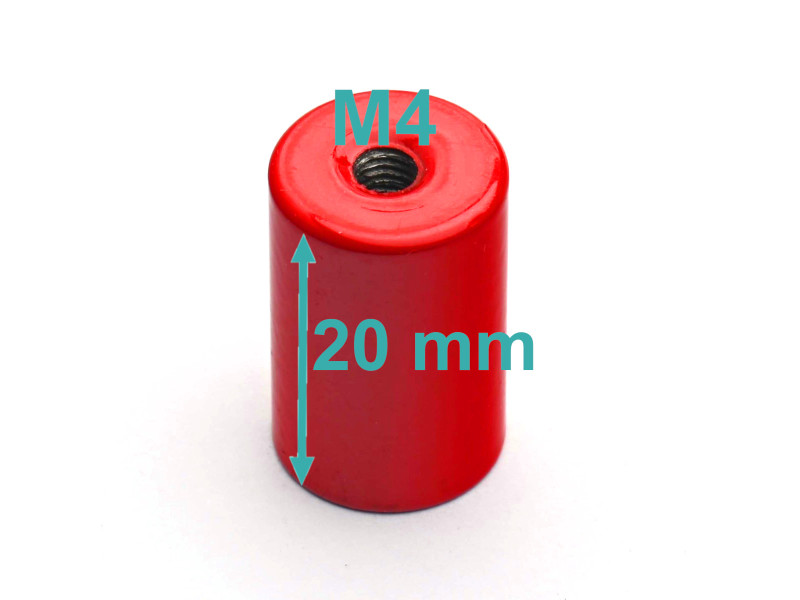

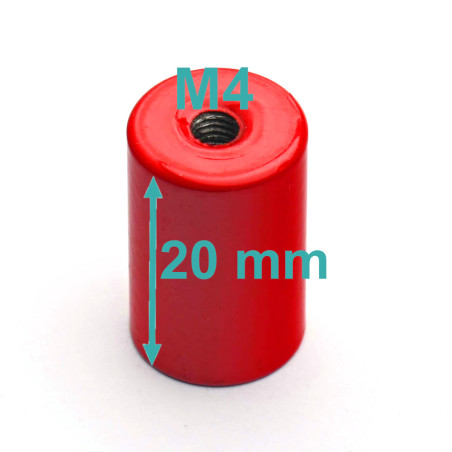

Magnet, diameter 13 mm, M4 internal thread, height 20 mm, AlNiCo

Magnet, diameter 13 mm, M4 internal thread, height 20 mm, AlNiCoMagnet, diameter 13 mm, M4 internal thread, height 20 mm, AlNiCo€2.23

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €2.23 €2.74
20 pcs. €1.66 €2.04
100 pcs. €1.61 €1.98
230 pcs. €1.58 €1.94
Quantity
Available Quantity: 204 pcs.

Ask a question
Performance parameters

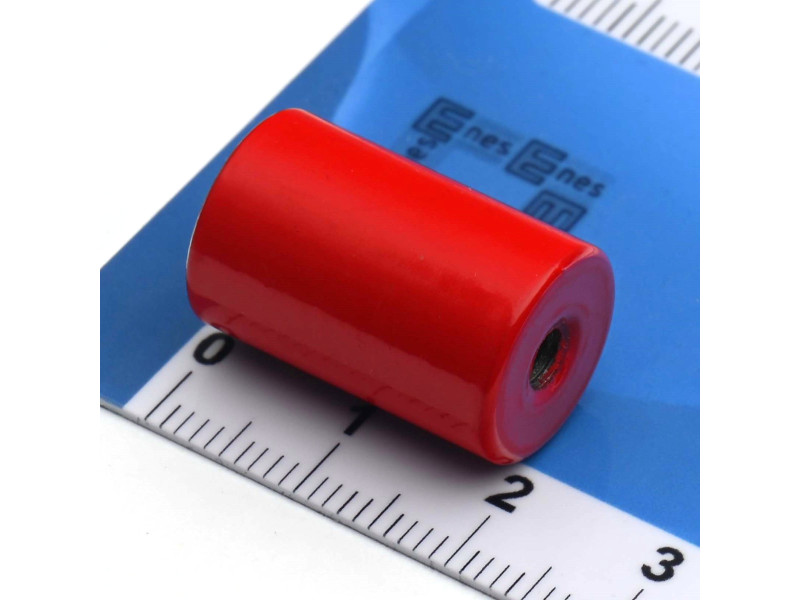

External diameter

13 [mm]

Height

20 [mm]

Thread type

internal, M4

Magnet type

AlNiCo

Maximal hoisting capacity

2,5 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Maximum working temperature

450 [°C]

Weight

18,9 [g]

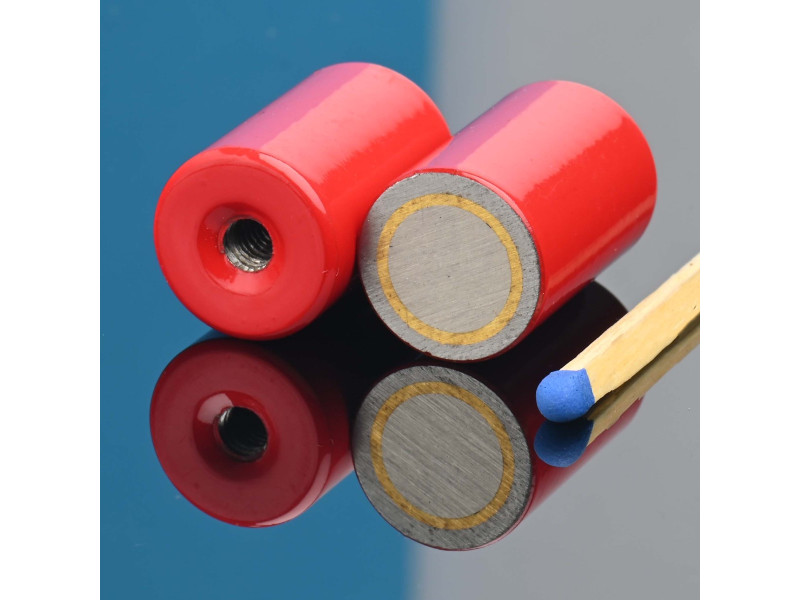

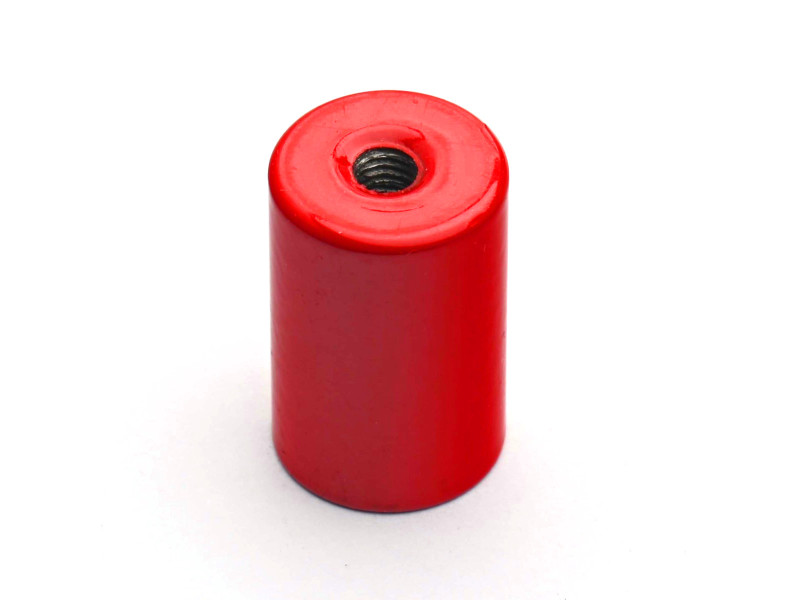

This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
In that holding magnets AlNiCo magnet was used. The magnet is housed in a steel casing so that it is better protected against impacts.

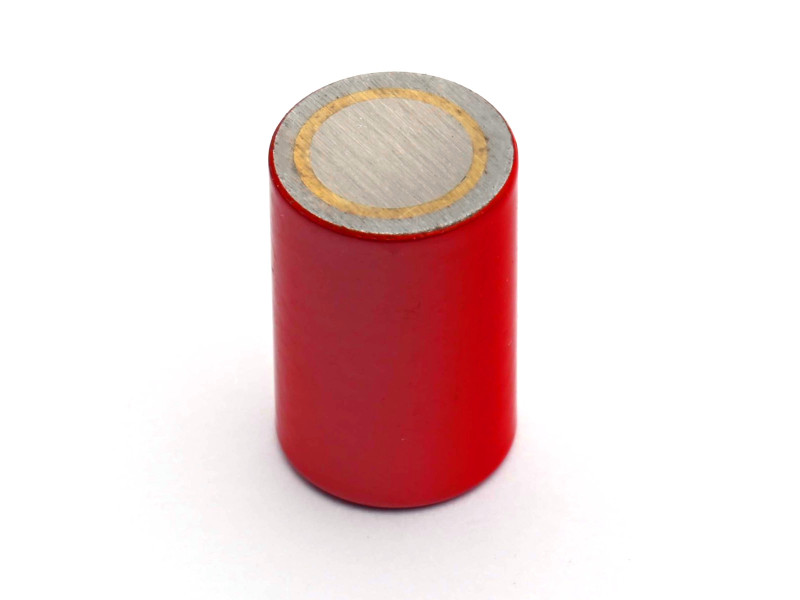

There is an internal thread in the housing for attaching hooks or eye bolts. Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating. The maximum operating temperature is no more than 450 degrees Celsius.
AlNiCo magnets stick to metal surface. You can attached magnet to surfaces made of ferromagnetic materials.
