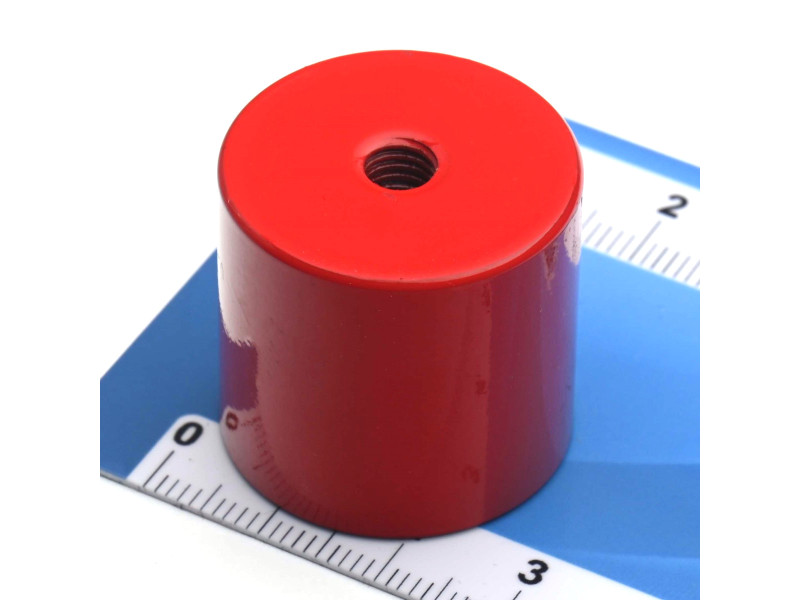

External diameter
27 [mm]

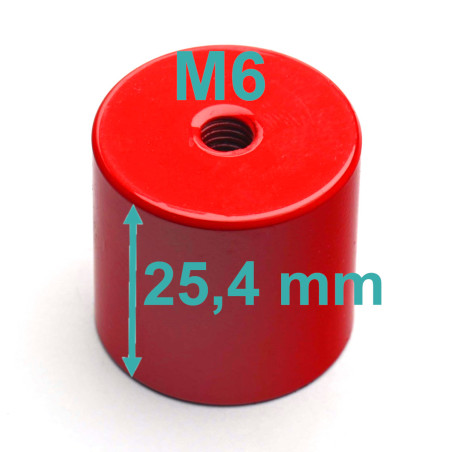

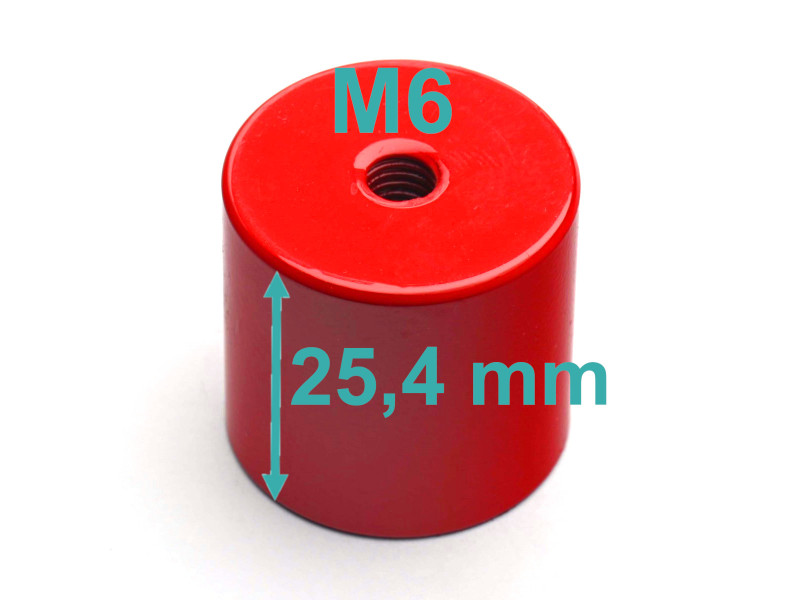

Height
25,4 [mm]
Thread type
internal, 2 x M6
Magnet type
AlNiCo
Maximal hoisting capacity
13 [kg]
Maximum working temperature
450 [°C]
Weight
107,9 [g]
Performance parameters
The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

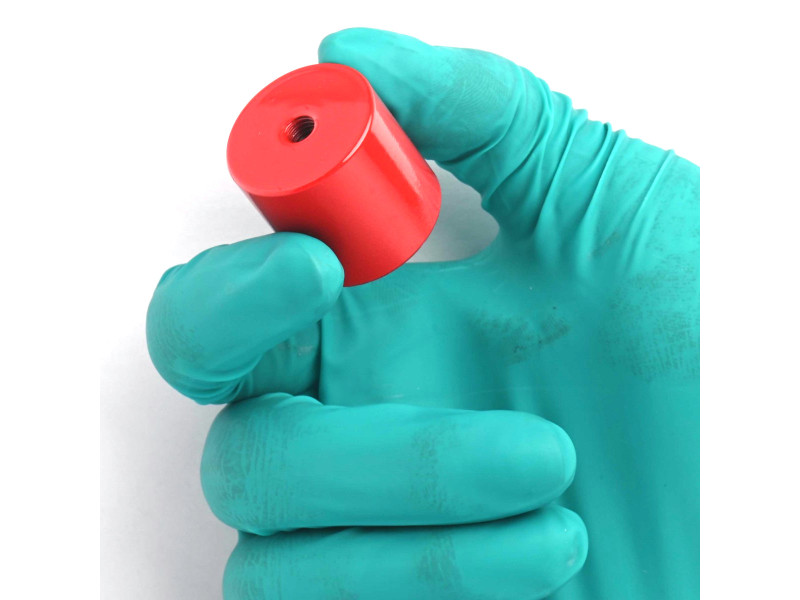

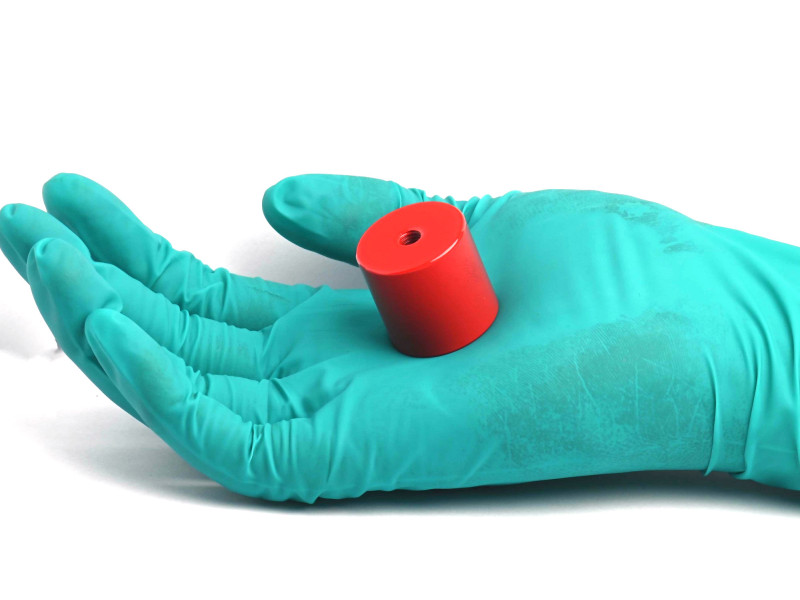

This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

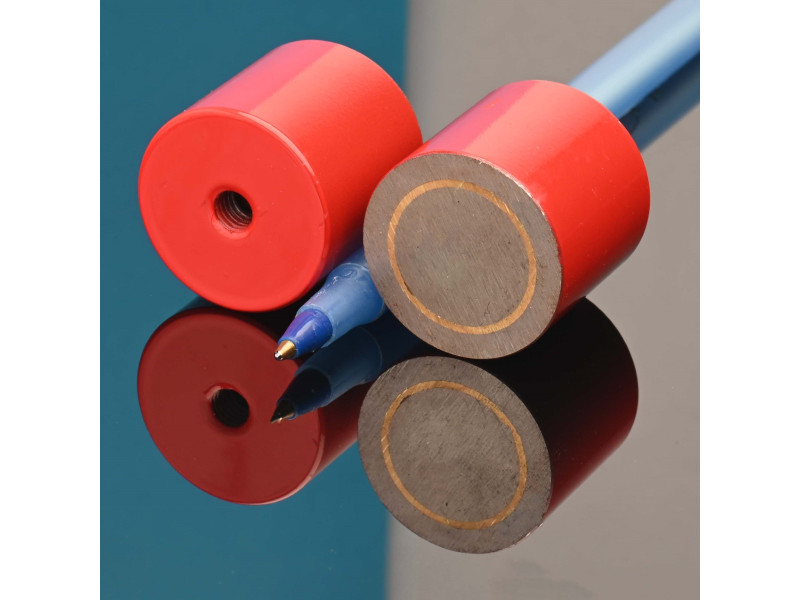

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.

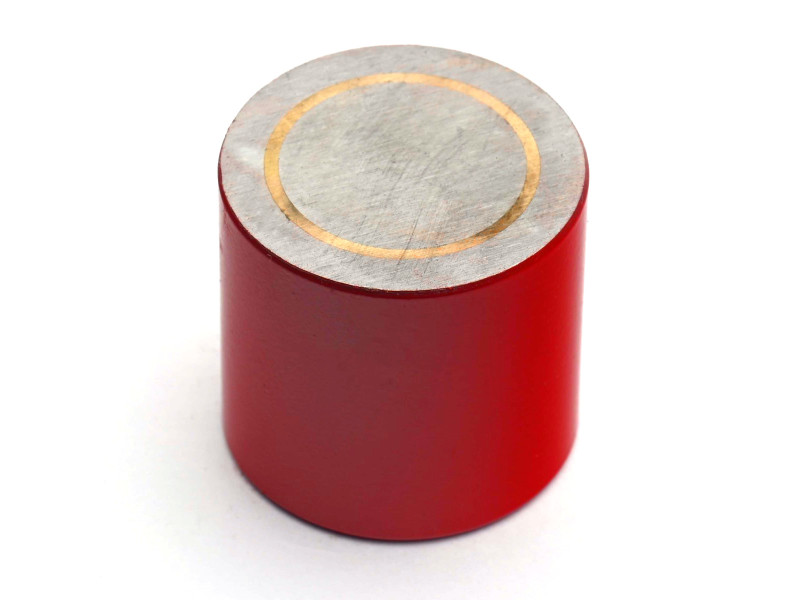

In that holding magnets AlNiCo magnet was used. The magnet is housed in a steel casing so that it is better protected against impacts.

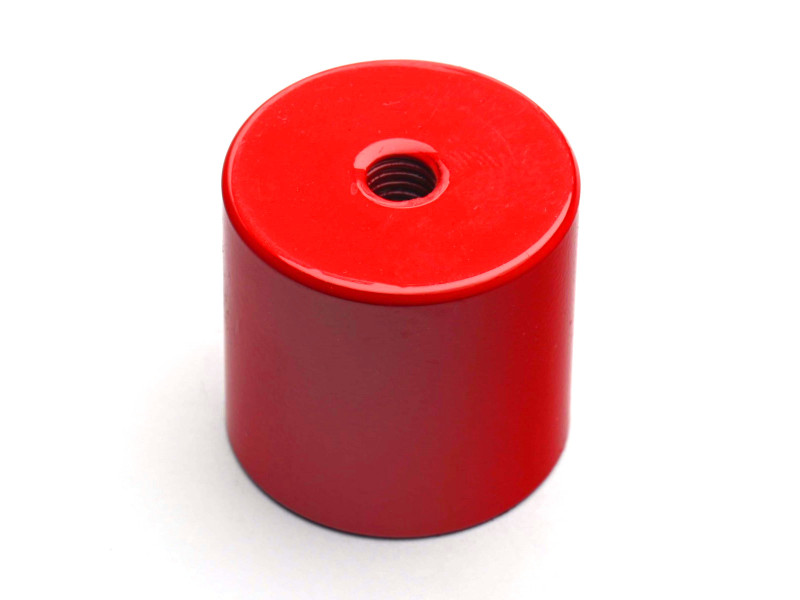

There is an internal thread in the housing for attaching hooks or eye bolts. Due to the casing, the magnet is single-sided. It has been protected against corrosion by nickel plating. The maximum operating temperature is no more than 450 degrees Celsius.
AlNiCo magnets stick to metal surface. You can attached magnet to surfaces made of ferromagnetic materials.
um27x25,4m6a
