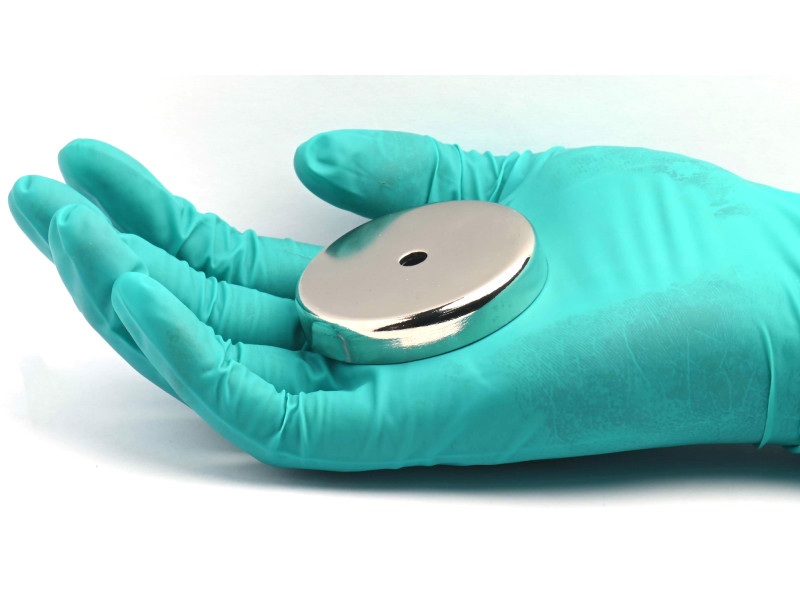

Magnet in housing, diameter 57 mm, with bore for flat head screw, ferrite
Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

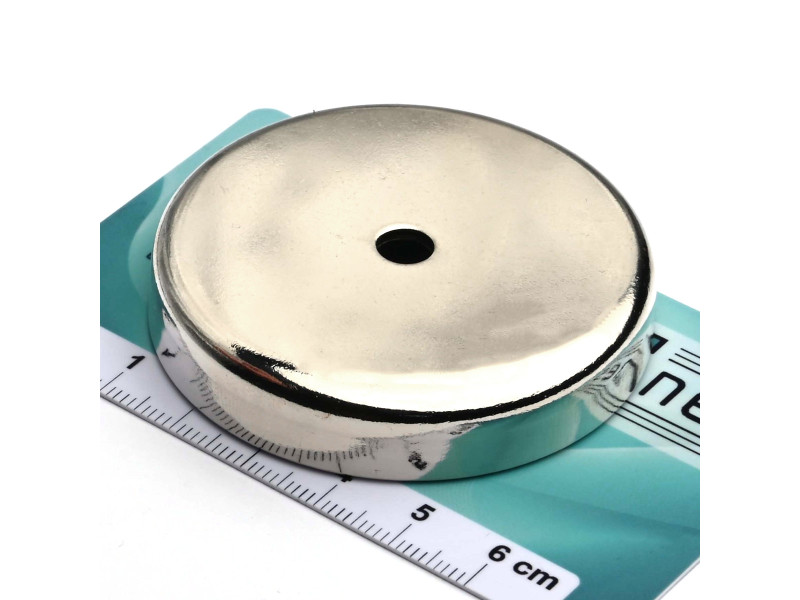

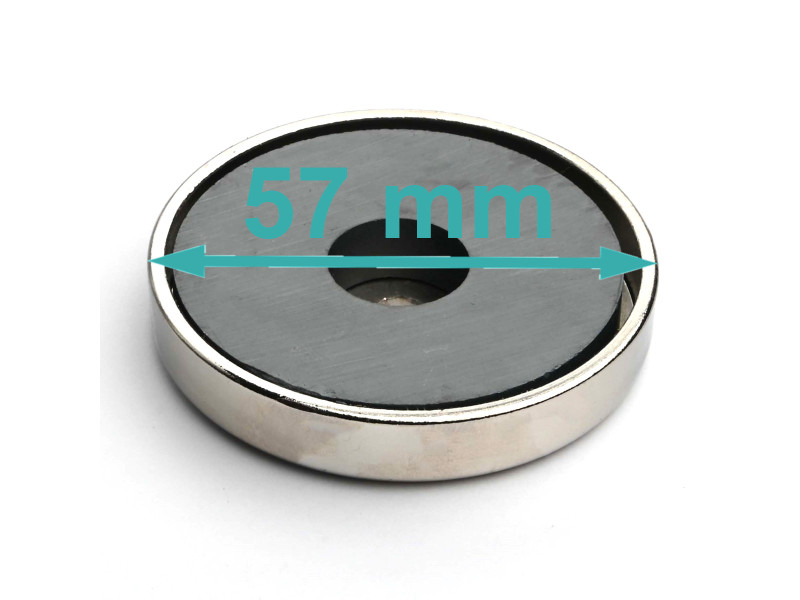

External diameter
57 [mm]
Aperture diameter for head of a screw
15,5 [mm]
Internal diameter
6,2 [mm]
Height
10 [mm]
Magnet type
Ferrite
Maximal hoisting capacity
30 [kg]
Coating
Nickel-plated (NiCuNi)
Maximum working temperature
110 [°C]
With a central hole for the screw head
yes
Weight
122 [g]
Performance parameters
The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.
Magnetic properties of material grade F30
remanence Br |
~0,37 [T] |
coercivity HcB |
min. 175 [kA/m] |
coercivity HcJ |
min. 180 [kA/m] |
| The magnetic properties of the material are not identical for every magnet. The measurement results for different magnets will vary due to the inherent heterogeneity of the magnetic material and the measurement tolerances of the measuring device. |

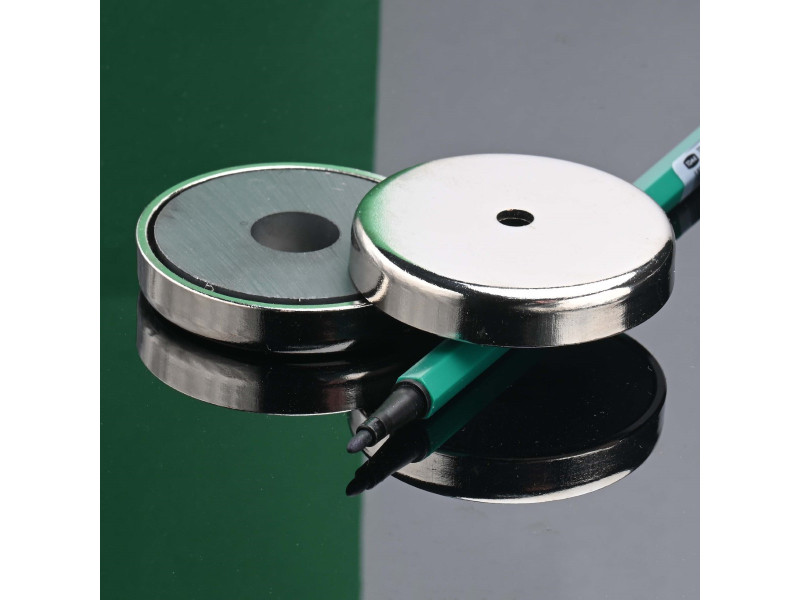

Ferrite pot magnet with counterbore hole D57x15,5x6,2x10,5F
This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.
Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. There is a hole in the housing for a flat screw head to be fixed with screws. Due to the casing, the magnet is single-sided. Ferrite magnets are well resistant to corrosion and do not require additional protection. Housing protected by nickel plating. The maximum operating temperature is no more than 110 degrees Celsius.
Ferrite magnets stick to metal surface (ferromagnetic materials).
