Magnet in housing, diameter 97 mm, with screw socket M8 - ferrite

Magnet in housing, diameter 97 mm, with screw socket M8 - ferriteMagnet in housing, diameter 97 mm, with screw socket M8 - ferrite€9.85

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €9.85 €12.12
5 pcs. €7.34 €9.03
25 pcs. €7.11 €8.75
50 pcs. €6.97 €8.57
Quantity
Available Quantity: 182 pcs.

Ask a question


Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

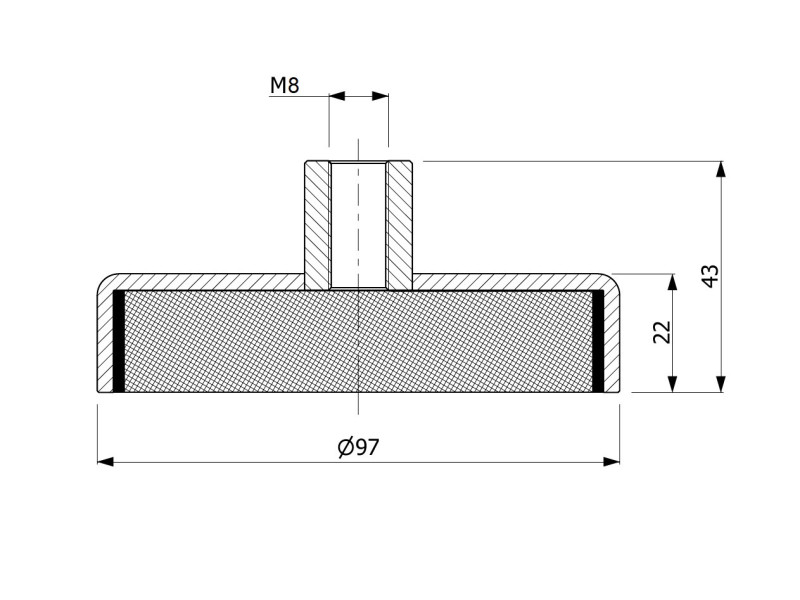

Performance parameters

External diameter

97 [mm]

Overall height together with sleeve

43 [mm]

Thread type

threaded bush, M8

Magnet type

Ferrite

Maximal hoisting capacity

98 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

110 [°C]

Weight

874 [g]


Ferrite pot magnet with screw socket D97x22xM10x43F


This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing. The magnet is glued into a steel housing, so it is more protected against impacts. In the housing is screw socket with internal thread for attaching hooks or eye bolts.
Due to the casing, the magnet is single-sided.
Ferrite magnets are well resistant to corrosion and do not require additional protection. Housing protected by nickel plating. The maximum operating temperature is no more than 110 degrees Celsius.
Ferrite magnets stick to metal surface (ferromagnetic materials).


UM97X22XM10WX43F
182 Items
