Magnet in housing, diameter 25 mm, with bore for flat head screw, neodymium

Magnet in housing, diameter 25 mm, with bore for flat head screw, neodymiumMagnet in housing, diameter 25 mm, with bore for flat head screw, neodymium€1.68

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €1.68 €2.07
6 pcs. €1.08 €1.33
40 pcs. €0.96 €1.18
150 pcs. €0.80 €0.98
Quantity
Available Quantity: 3441 pcs.

Ask a question
Performance parameters

External diameter

25 [mm]

Aperture diameter for head of a screw

11 [mm]

Internal diameter

6 [mm]

Height

7 [mm]

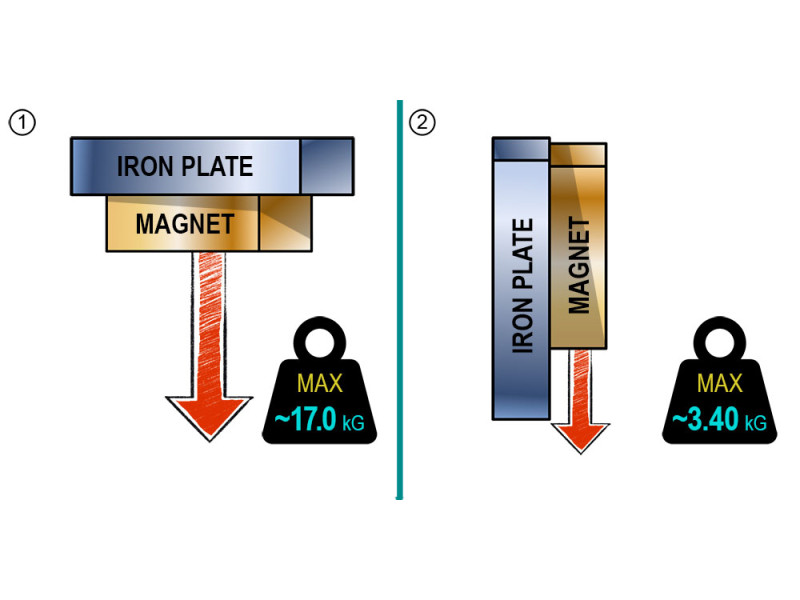

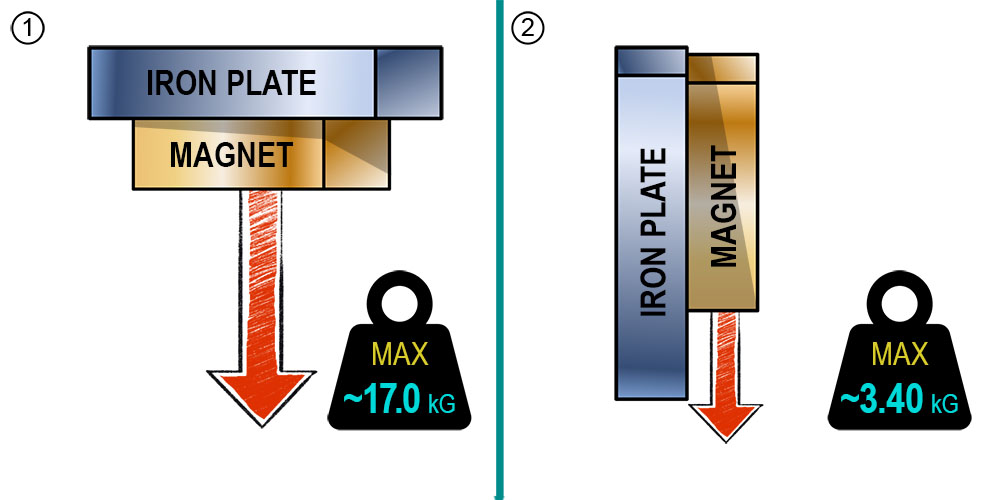

Maximal hoisting capacity

17 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

With a central hole for the screw head

yes

Weight

22,4 [g]


This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. There is a hole in the housing for a flat screw head to be fixed with screws.
Due to the casing, the magnet is single-sided. It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.

UM25X11X6X7N
3441 Items
