Magnet, diameter 12 mm, M4 internal thread, height 8 mm, neodymium

Magnet, diameter 12 mm, M4 internal thread, height 8 mm, neodymiumMagnet, diameter 12 mm, M4 internal thread, height 8 mm, neodymium€1.13

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €1.13 €1.39
12 pcs. €0.54 €0.66
80 pcs. €0.48 €0.59
300 pcs. €0.40 €0.49
Quantity
Available Quantity: 9560 pcs.

Ask a question


Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Accessories
Performance parameters

External diameter

12 [mm]

Height

8 [mm]

Thread type

internal, M4

Magnet type

Neodymium

Maximal hoisting capacity

4 [kg]

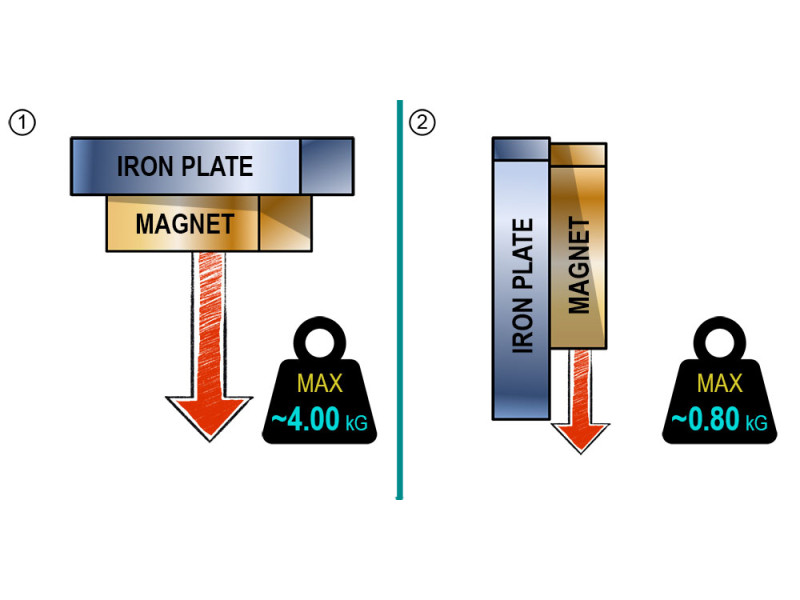

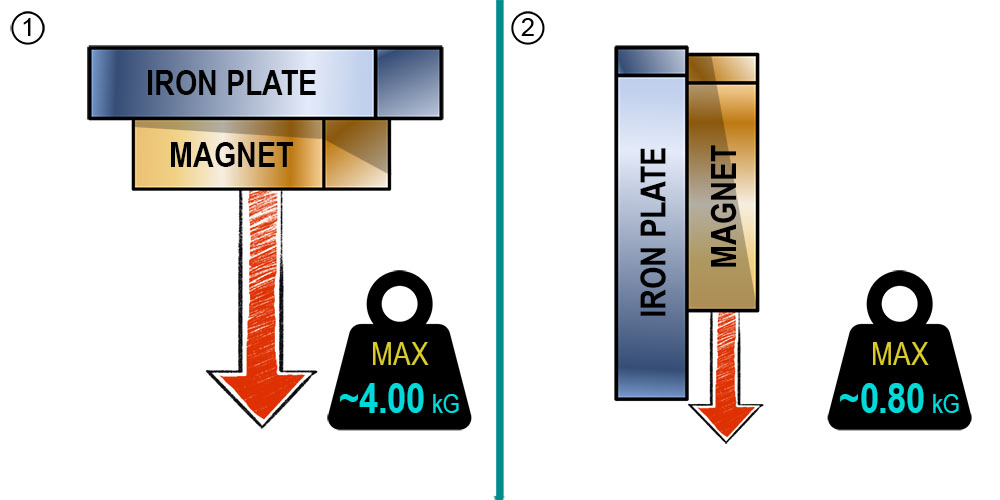

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

Weight

6,4 [g]




Neodymium pot magnet D12x8/M4/N


This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. There is an internal thread in the housing for attaching hooks or eye bolts. Direction of magnetization along the height. Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.


um12x8m4n
