Magnet, diameter 20 mm, M5 internal thread, height 13 mm, neodymium

Magnet, diameter 20 mm, M5 internal thread, height 13 mm, neodymiumMagnet, diameter 20 mm, M5 internal thread, height 13 mm, neodymium€1.83

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €1.83 €2.25
6 pcs. €1.23 €1.51
40 pcs. €1.10 €1.35
150 pcs. €0.92 €1.13
Quantity
Available Quantity: 1409 pcs.

Ask a question


Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)



Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)

Accessories
Performance parameters

External diameter

20 [mm]

Height

13 [mm]

Thread type

internal, M5

Magnet type

Neodymium

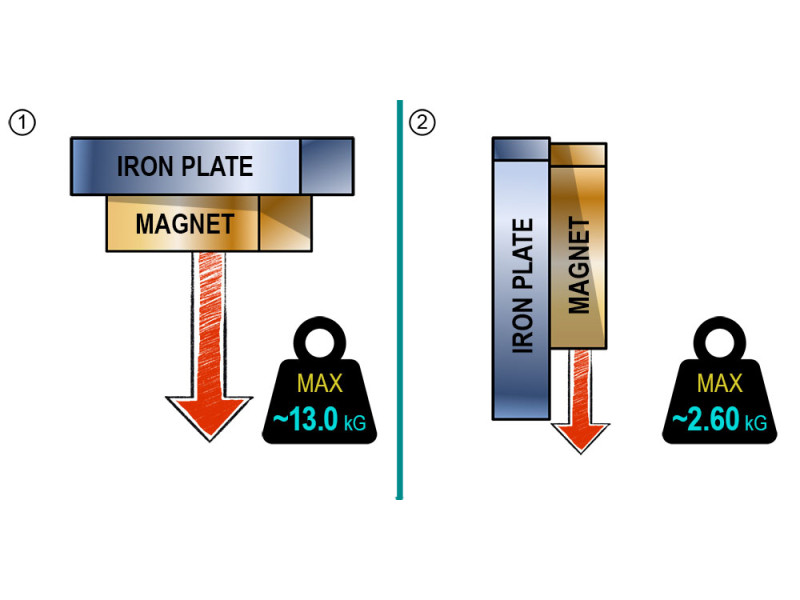

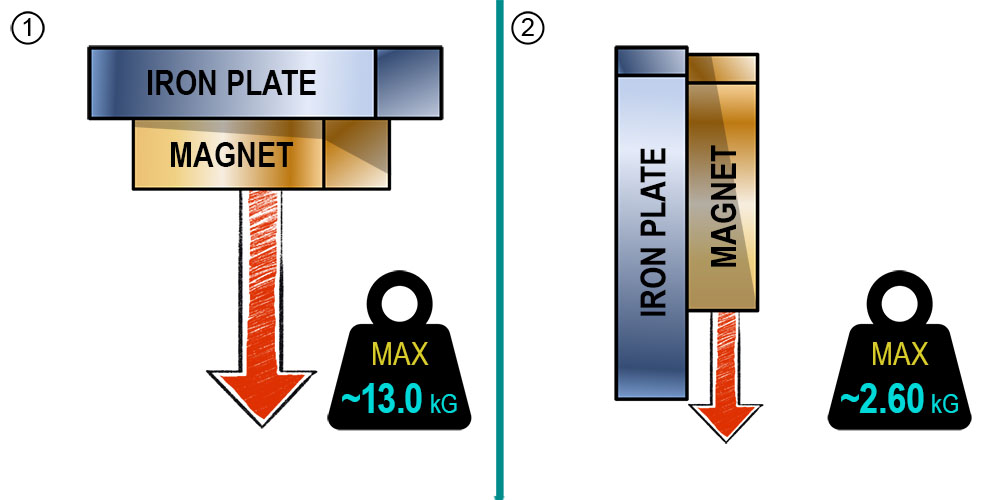

Maximal hoisting capacity

13 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

Weight

29,4 [g]




Neodymium pot magnet D20x13/M5/N


This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. There is an internal thread in the housing for attaching hooks or eye bolts. Direction of magnetization along the height. Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating. The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface. You can attached magnet to surfaces made of ferromagnetic materials.

um20x13m5n
