  • pot magnet D6x6 M3

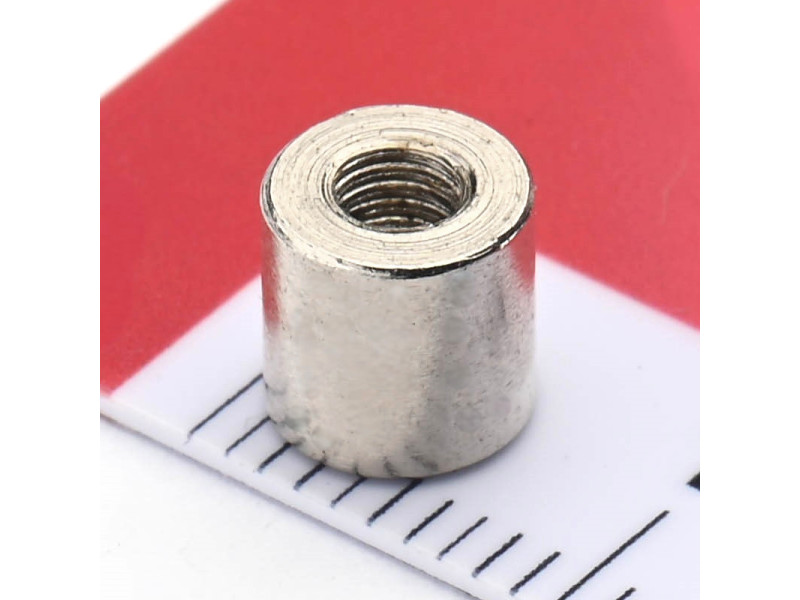

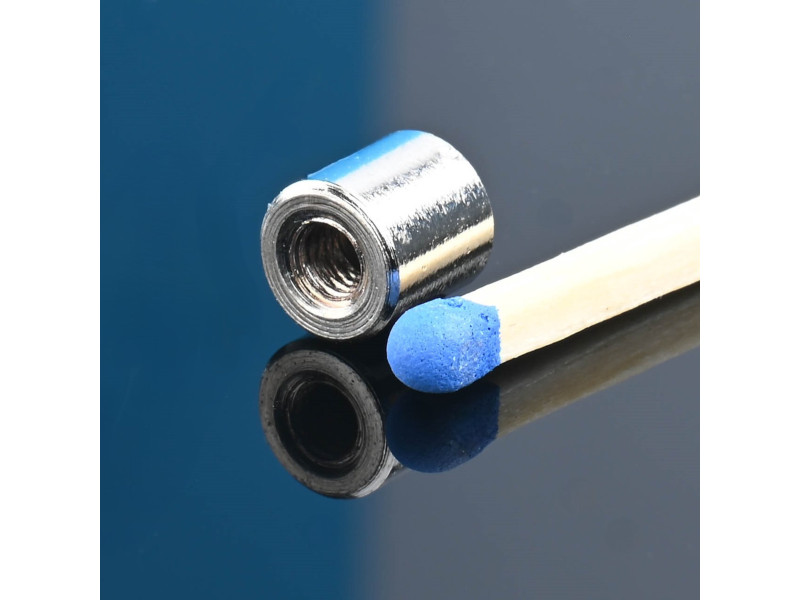

Magnet, diameter 6 mm, M3 internal thread, height 6 mm, neodymium

Magnet, diameter 6 mm, M3 internal thread, height 6 mm, neodymiumMagnet, diameter 6 mm, M3 internal thread, height 6 mm, neodymium€0.97

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €0.97 €1.19
16 pcs. €0.37 €0.46
100 pcs. €0.33 €0.41
450 pcs. €0.28 €0.34

Lowest price from 30 days before the promotion: €1.26 Net (€1.55 Gross)

Quantity
Available Quantity: 3372 pcs.

Product symbol: HM 6 x 6 / M3 / N

Ask a question
Accessories
Performance parameters

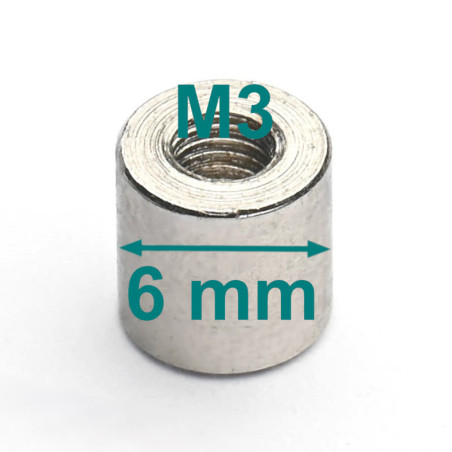

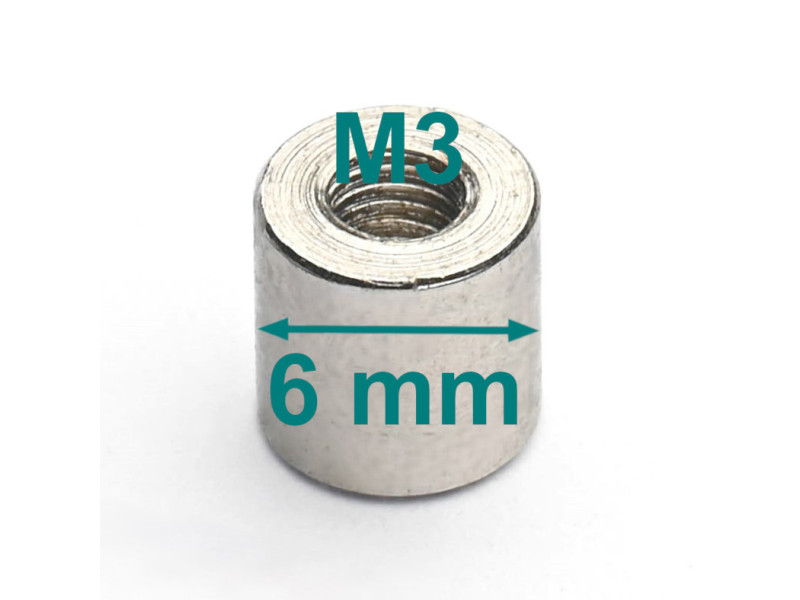

External diameter

6 [mm]

Height

6 [mm]

Thread type

internal, M3

Magnet type

Neodymium

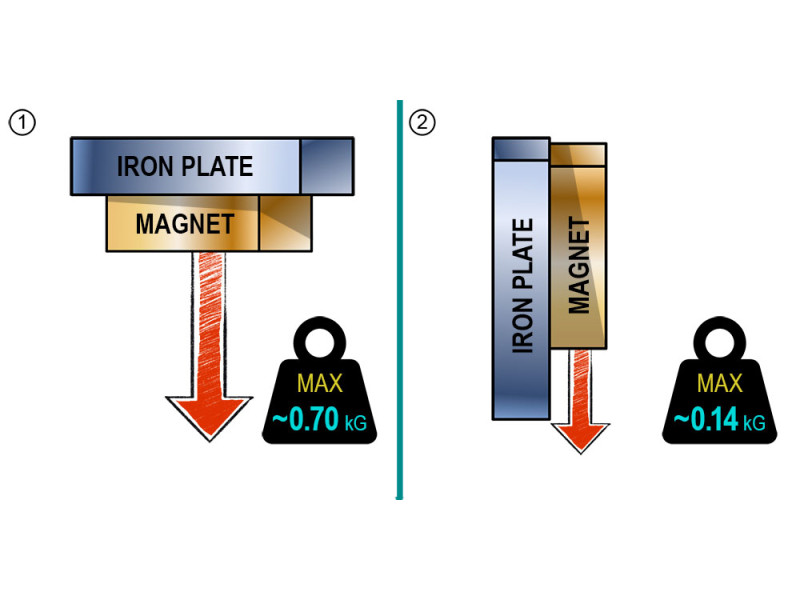

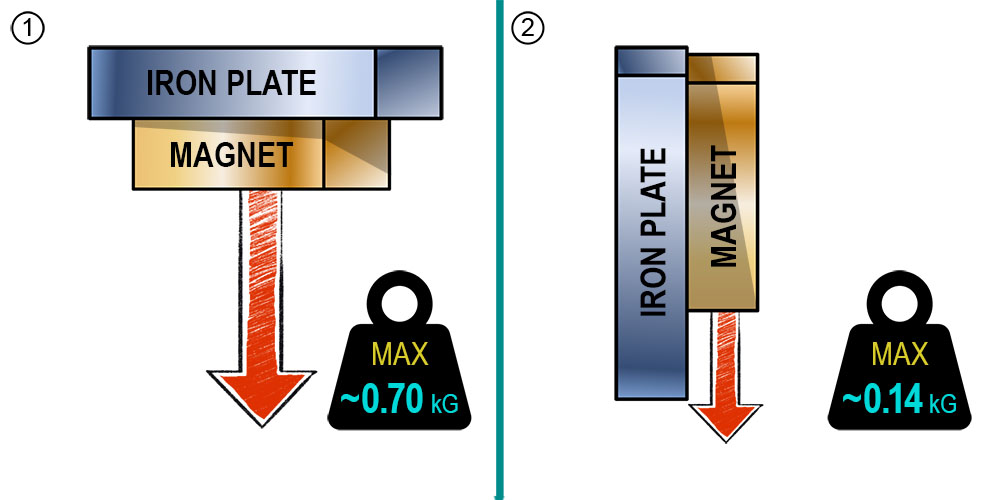

Maximal hoisting capacity

0,7 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

Weight

1,1 [g]



Neodymium pot magnet D6x6/M3/N

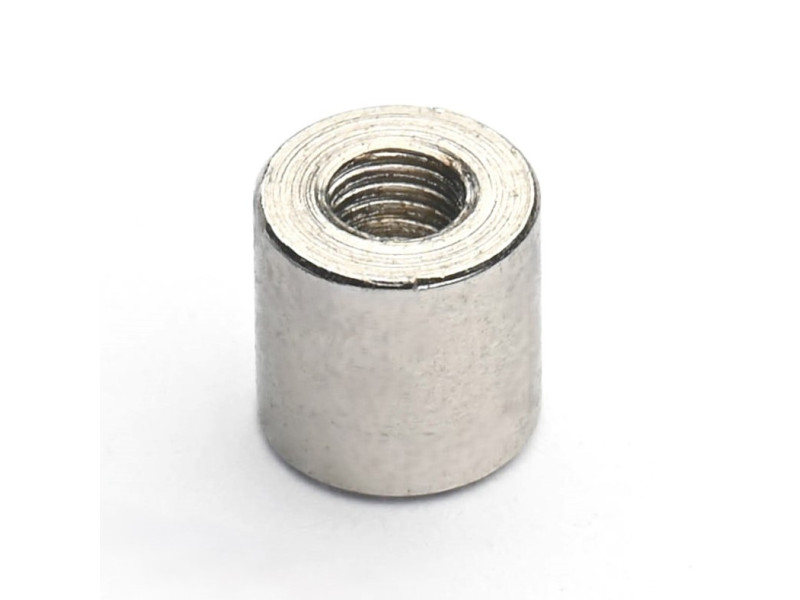

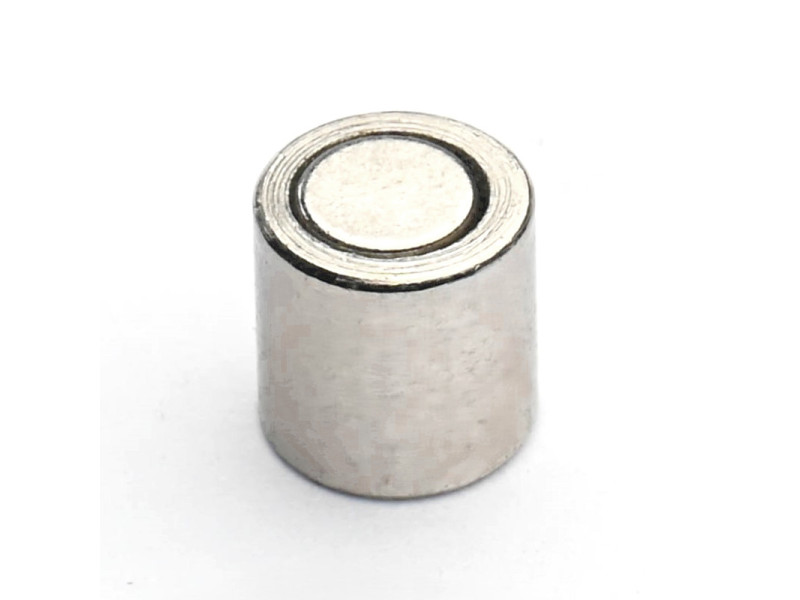

This neodymium pot magnet has a female thread in an iron housing because it is not possible to make a thread in a neodymium magnet. The permanent magnet has been glued into a metal cup-shaped housing, protecting it from impacts. This solution is magnetically optimal if you want the magnet to have a high holding power.
Pot magnet holds approx. 0,7 kg.
