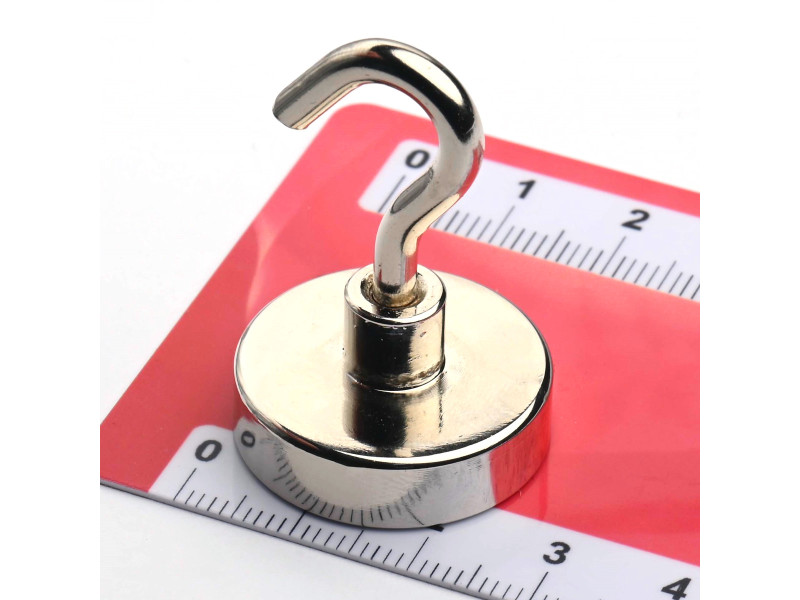

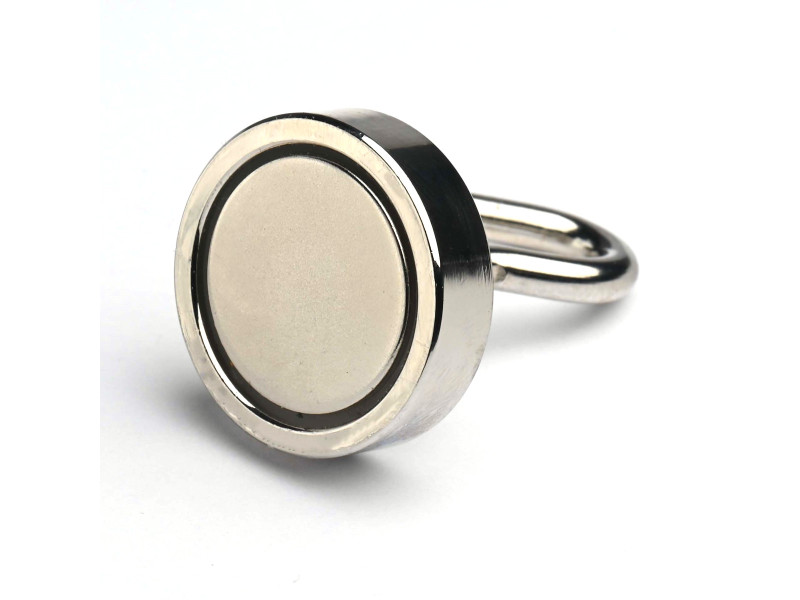

Magnet in housing with eye hook, diameter 25 mm, with screw socket M4 – neodymium
Polityka bezpieczeństwa (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady dostawy (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Zasady zwrotu (edytuj za pomocą modułu „Bezpieczeństwo klienta”)
Accessories

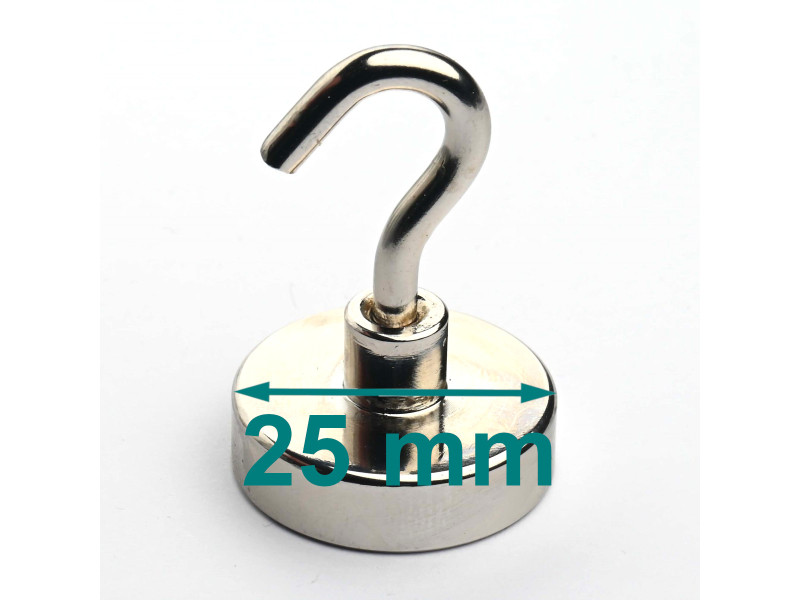

External diameter
25 [mm]
Height
7 [mm]
Overall height together with sleeve
14 [mm]
Thread type
threaded bush, M4
Magnet type
Neodymium
Maximal hoisting capacity
23 [kg]
Coating
Nickel-plated (NiCuNi)
Maximum working temperature
≤ 80 [°C]
Weight
30 [g]

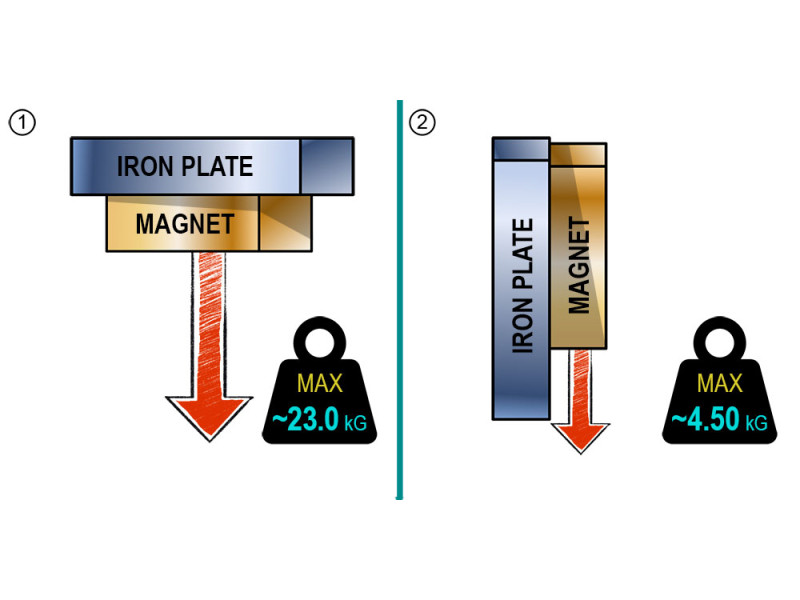

Performance parameters
The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.
Neodymium hook magnet D25x7xM4x35N
This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.
Holding magnets are simple magnetic circuits composited of a magnet and a steel housing.
The magnet is glued into a steel housing, so it is more protected against impacts. In the housing is screw socket with internal thread for attaching hooks or eye bolts. Due to the casing, the magnet is single-sided. It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.
UMH25X7HAK35N
