Magnet, diameter 16 mm, M5 external thread, neodymium

Magnet, diameter 16 mm, M5 external thread, neodymiumMagnet, diameter 16 mm, M5 external thread, neodymium€1.22

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €1.22 €1.50
10 pcs. €0.63 €0.77
60 pcs. €0.56 €0.69
250 pcs. €0.47 €0.58

Lowest price from 30 days before the promotion: €1.58 Net (€1.94 Gross)

Product unavailable

Ask a question
Performance parameters

External diameter

16 [mm]

Height

4,5 [mm]

Height with threaded

12,5 [mm]

Thread type

external, M5

Magnet type

Neodymium

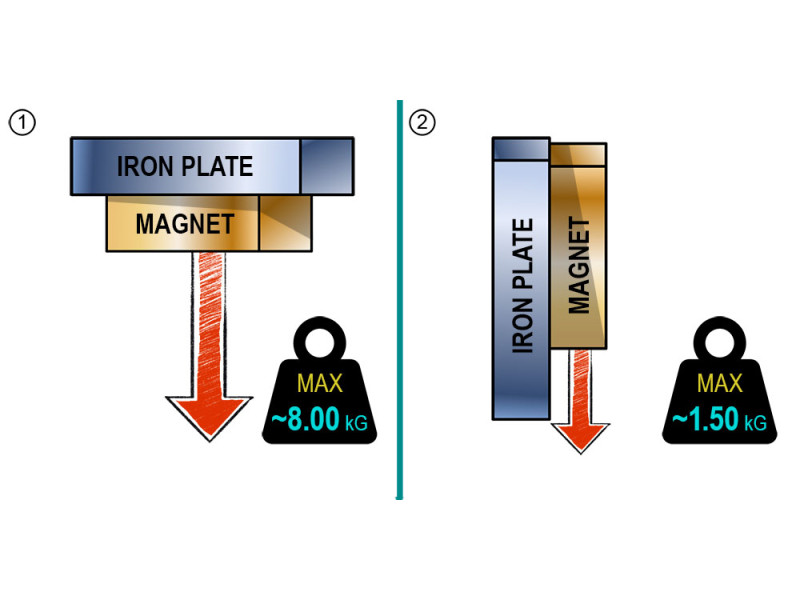

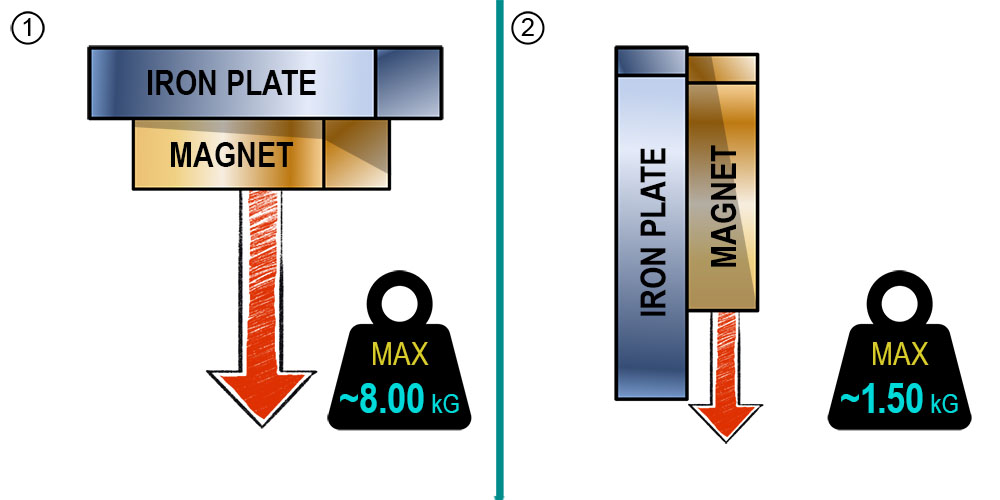

Maximal hoisting capacity

8 [kg]

        The gap between the magnet and the iron plate significantly reduces the force needed to detach the magnet from the plate.

Coating

Zinc (Zn)

Coating

Nickel-plated (NiCuNi)

Maximum working temperature

≤ 80 [°C]

Weight

8 [g]



This magnet in housing is circular, cylindrical, shaped like a cylinder or disc.

Holding magnets are simple magnetic circuits composited of a magnet and a steel housing. The magnet is glued into a steel housing, so it is more protected against impacts. There is an external thread in the housing for fixing in the mounting holes.
Due to the casing, the magnet is single-sided.
It has been protected against corrosion by nickel plating.
The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface.
You can attached magnet to surfaces made of ferromagnetic materials.

um16x4,5xm5zewnx12,5n
