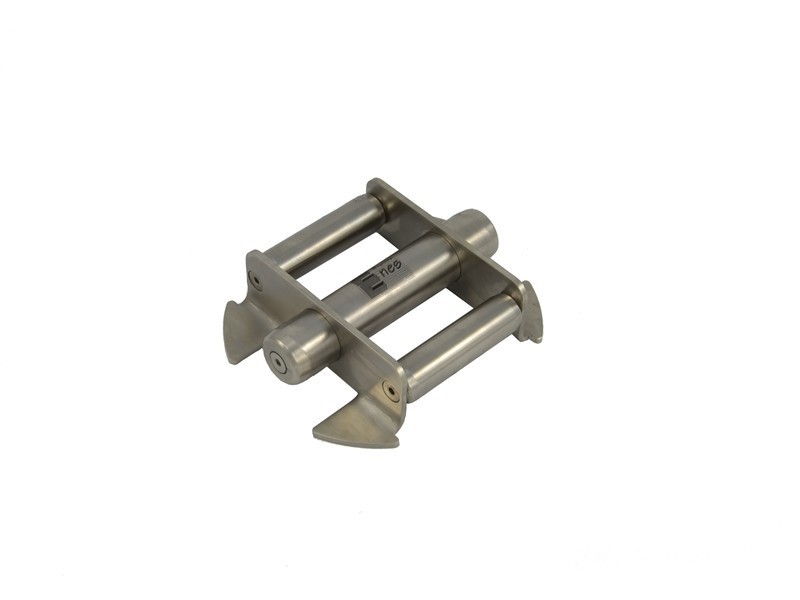

One-level magnetic grate for funnel D190 / N

Separation magnetic grates are used for catching magnetically soft elements (iron filings, bolts, etc.) from loose materials (powders, granulated products, grains). They may be of use in food industry (stainless steel, AISI 304 / EN 1.4301, approved for contact with food housing), as well as in plastics processing, ceramic an many other branches of industry.

Magnetic grate made of acid-proof steel contains a magnetic system assembled with neodymium magnets. It is a surface of the three incorporated into the separator magnetic filter bars: one of 32 mm in diameter (the middle bar) and two of 25 mm in diameter (side bars) which is magnetically active.

On commission we are ready to provide magnetic separators with dimensions chosen by Clients. Magnetic parameters, range of activity and dimensions are adjusted according to Client needs and expectations.

Magnetic field over midpoles on surface of protection tube of the middle magnetic filter bar is min. 0,700 [T] and over midpoles on surface of protection tube of side magnetic filter bars is min. 0,600 [T].

In the magnetic grate sintered neodymium magnets were used.
Max. working temperature for the magnetic grates with neodymium magnets is approx. 80°[C].

Caution! A careless handling can cause serious injury to hands !

The item is not waterproof. It should not be used in contact with water (and other water-based liquids) or in high humidity environment.

We make waterproof grates on requestr - please send us the inquiries.

Weight: ~1,5 [kg]
