Manufacturer
Enes Magnesy
External diameter
32 [mm]
Length
400 [mm]
overall length together with handle
400 [mm]
Magnet type
Neodymium
Maximum magnetic field over the middle poles
0,65 [T], 6500 [Gs] +/- 5%
Maximum working temperature
≤ 80 [°C]
Housing
stainless steel, AISI 304 / EN 1.4301, approved for contact with food
Waterproof
class IP67
Handling mode
manual use
Range
max. 32 [mm]
with an easy cleaning
yes
Weight
1.5 [kg]
Performance parameters
Magnetic induction is measured with a teslameter with a hall effect flat probe.

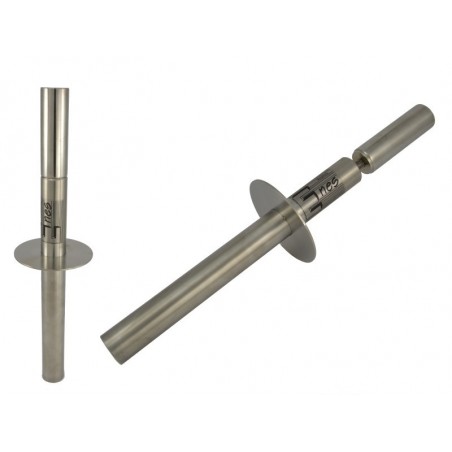

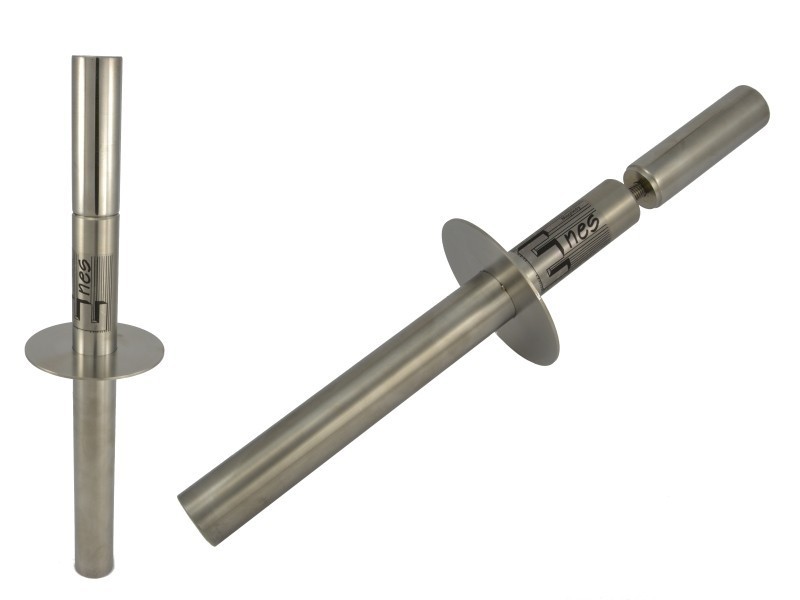

Magnetic filter bars with facilited cleaning are used to move, measure out or catch small magnetic soft parts (shavings, screws, nails, etc).
They may be used in metal and automobile workshops, factories, warehouses or stores, so wherever there is with small steel parts to deal.

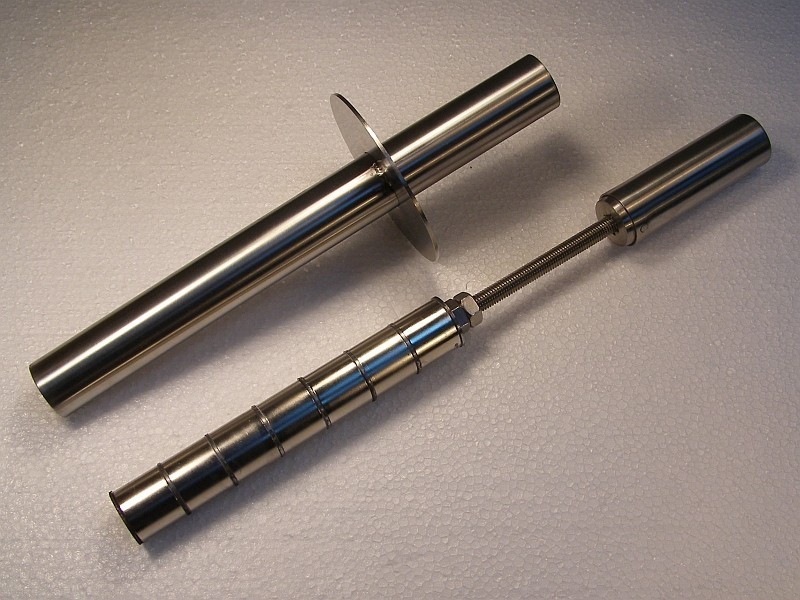

Enabling and releasing the magnetic field is a result of lowering or lifting the magnetic element in a bar case with diameter of 32 mm.
The magnetic filter bar is closed in a housing made of (AISI 304 / EN 1.4301) acid-proof steel. In this way the magnet is not exposed to impacts.
In the magnetic filter bar sintered neodymium magnets were used.
The maximum working temperature for magnetic filter bars involving neodymium magnets is 80o[C].
Magnetic field on surface of the magnetic pole (max.) is ~0,650 [T].
Weight: 1,5 [kg]
WMUCZ32X400-200N
