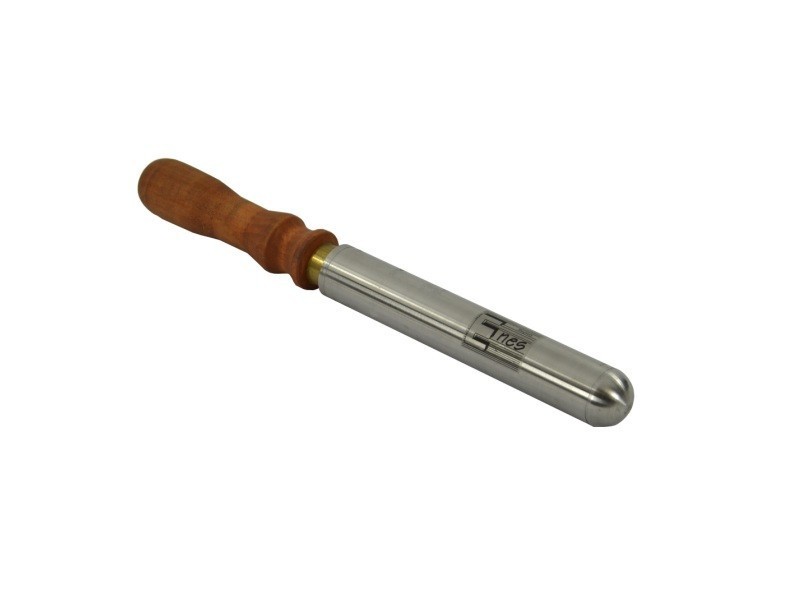

Magnetic filter bar with wooden handle 32 x 200 / N (NEODYMIUM)

Magnetic filter bar with wooden handle 32 x 200 / N (NEODYMIUM)Magnetic filter bar with wooden handle 32 x 200 / N (NEODYMIUM)€322.00

Your Query is sent.

  •     *Required Fields

Loading

Of Price Net Price Gross
1 pcs. €322.00 €396.06
Product unavailable

Ask a question
Performance parameters

Manufacturer

Enes Magnesy

External diameter

32 [mm]

Length

200 [mm]

overall length together with handle

340 [mm]

Magnet type

Neodymium

Maximum magnetic field over the middle poles

0,75 [T], 7500 [Gs] +/- 5%

Magnetic induction is measured with a teslameter with a hall effect flat probe.

Maximum working temperature

≤ 80 [°C]

Housing

stainless steel, AISI 304 / EN 1.4301, approved for contact with food

Waterproof

class IP67

With handle

yes

Weight

1.1 [kg]

Description

Magnetic filter bars with wooden handle are used to catch magnetic soft parts (shavings, screws, nails, etc). They may be used in the food industry (version available with a handle made ​​of stainless steel) as well as recycling, ceramics and more.

This magnetic filter bar is closed in a housing made of 1H18N9T (1.4541),(321) acid-proof steel. In this way the magnet is not exposed to impacts or directly contact with water. All the surfaces of the magnetic filter bar are magnetic active. Standard made version is not waterproof. A waterproof one can be custom made.

On commission we are ready to manufacture magnetic filter bars with diameters: 18 mm, 22 mm, 25 mm, 32 mm, 40 mm, 51 mm, with lengths adjusted according to Clients expectations. The minimum length of manufactured filter bars is 100 mm.

Magnetic field over middle poles, on surface of the housing tube of filter bar is min. 0,750 [T].

In the magnetic filter bar sintered neodymium magnets with remanence approx. 1,3 [T] (~13000 Gs) were used. The maximum working temperature for magnetic filter bars involving neodymium magnets is 80o[C].

We generally recommend individual checking of the holding magnet in any specific working conditions.

Length including screw thread: ~250 mm

Length including a handel: ~340 mm

Weight: ~1,1 [kg]

Description

Magnetic filter bars with wooden handle are used to catch magnetic soft parts (shavings, screws, nails, etc). They may be used in the food industry (version available with a handle made ​​of stainless steel) as well as recycling, ceramics and more.

This magnetic filter bar is closed in a housing made of 1H18N9T (1.4541),(321) acid-proof steel. In this way the magnet is not exposed to impacts or directly contact with water. All the surfaces of the magnetic filter bar are magnetic active. Standard made version is not waterproof. A waterproof one can be custom made.

On commission we are ready to manufacture magnetic filter bars with diameters: 18 mm, 22 mm, 25 mm, 32 mm, 40 mm, 51 mm, with lengths adjusted according to Clients expectations. The minimum length of manufactured filter bars is 100 mm.

Magnetic field over middle poles, on surface of the housing tube of filter bar is min. 0,750 [T].

In the magnetic filter bar sintered neodymium magnets with remanence approx. 1,3 [T] (~13000 Gs) were used. The maximum working temperature for magnetic filter bars involving neodymium magnets is 80o[C].

We generally recommend individual checking of the holding magnet in any specific working conditions.

Length including screw thread: ~250 mm

Length including a handel: ~340 mm

Weight: ~1,1 [kg]
