Length
30 [mm] +0,1/-0,1
Width
10 [mm] +0,1/-0,1
Height
1 [mm] +0,1/-0,1
Magnetizing direction along dimension
1 [mm]
Grade
N38
Magnet type
Neodymium
Maximal hoisting capacity
1,05 [kg]

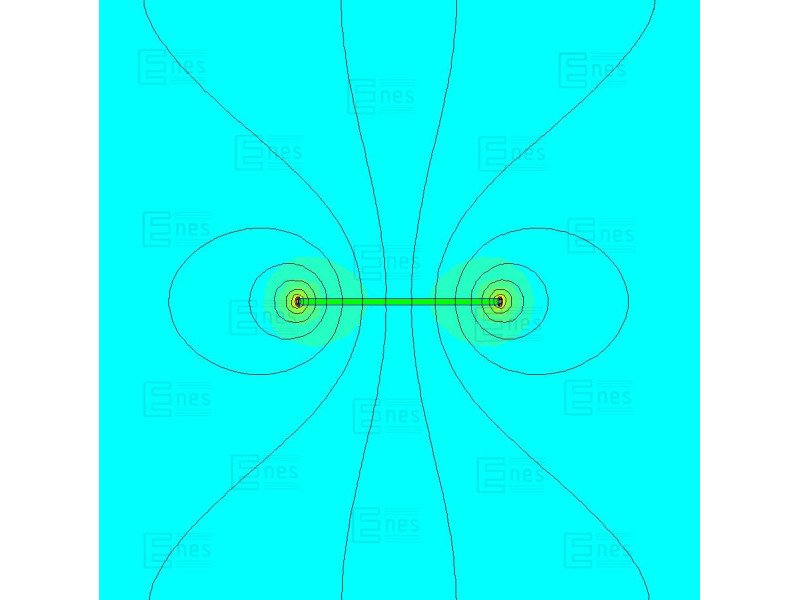

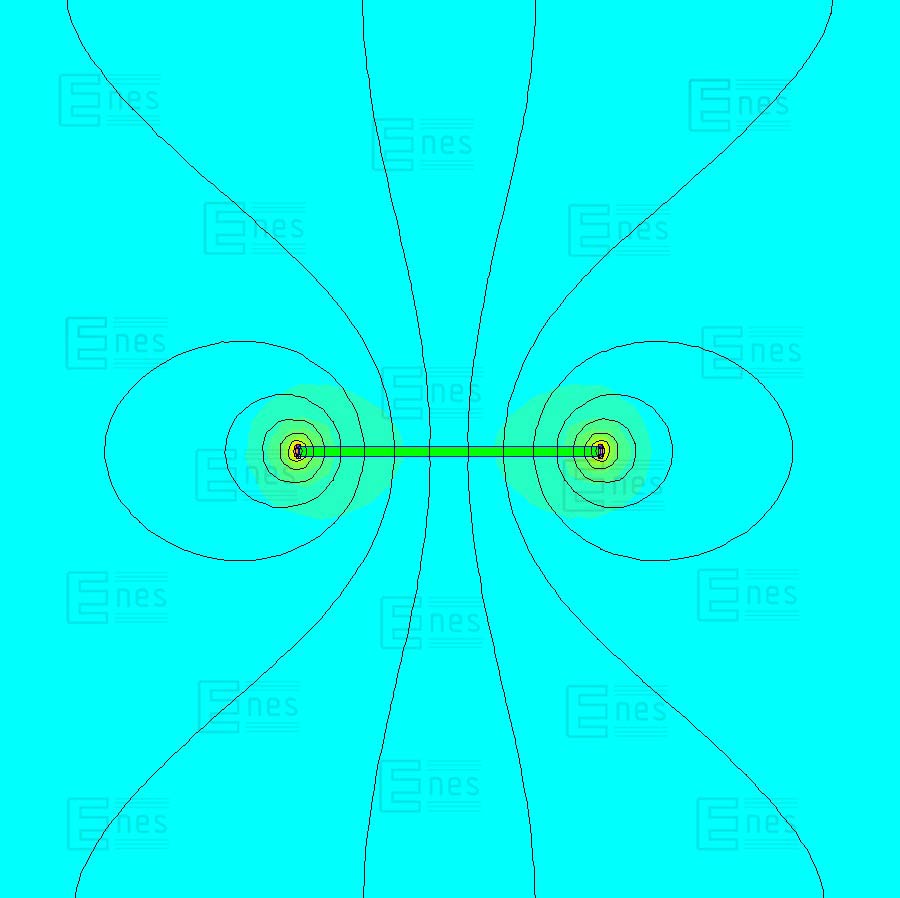

Magnetic field in geometrical center of the magnetic pole surface
0,07 [T]
Coating
NiCuNi with 3M 467MP adhesive
adhesive
yes
Weight
2,3 [g]
Performance parameters
Direction of magnetization along the height (the last dimension included in a magnet name) means that the surface of a magnet perpendicular to its height makes the N-pole, while the other surface perpendicular to the height refers to the S-pole;.

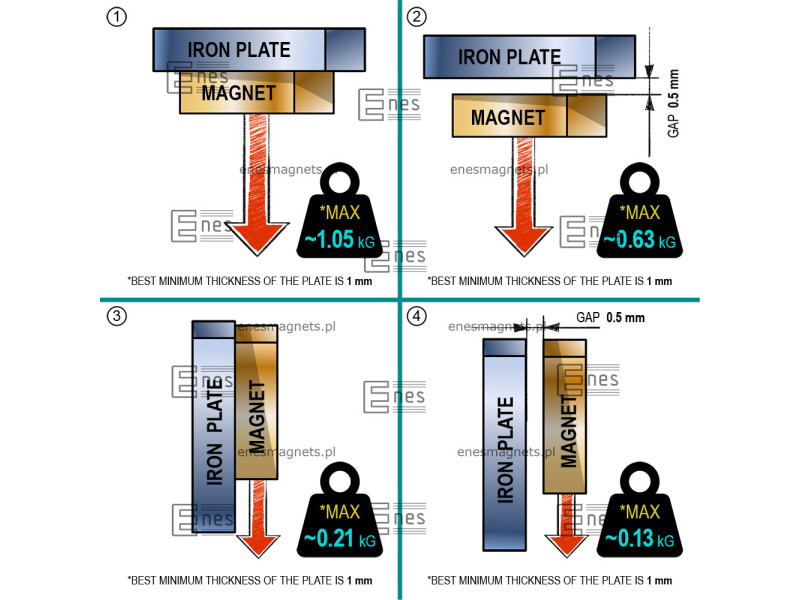

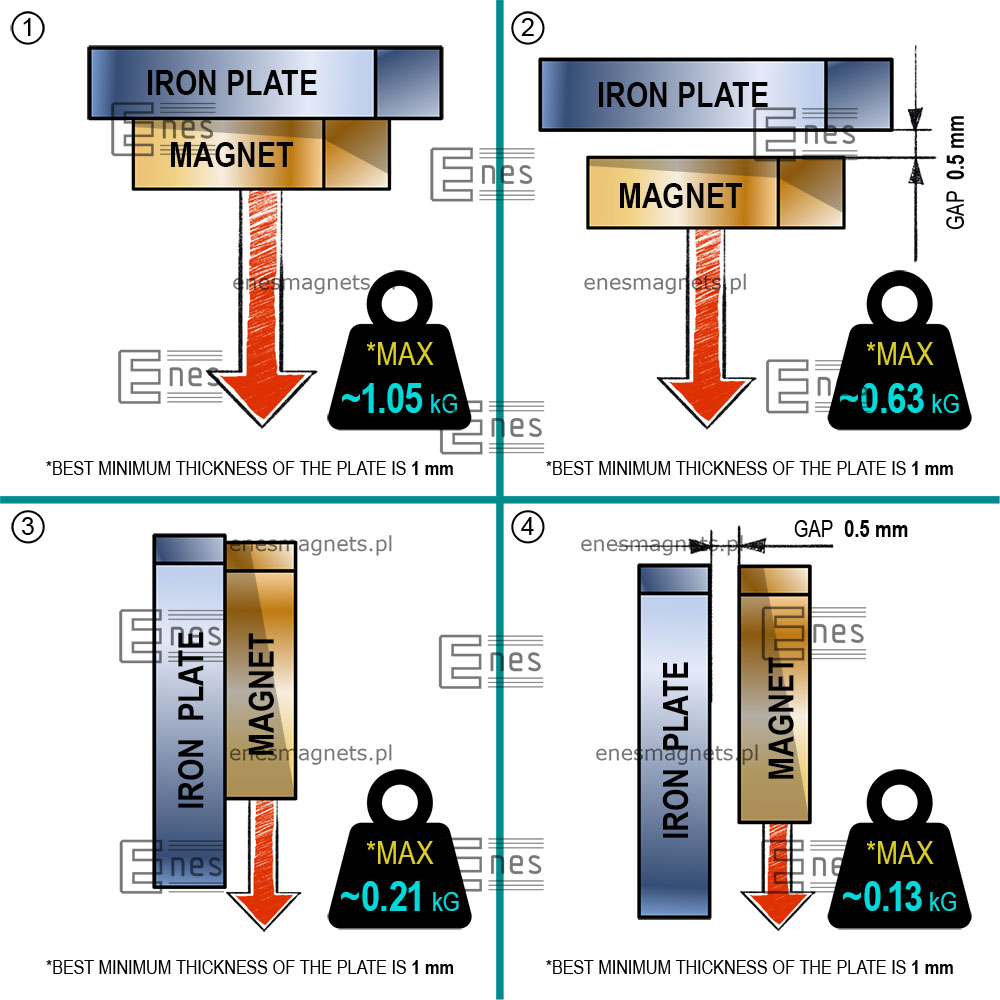

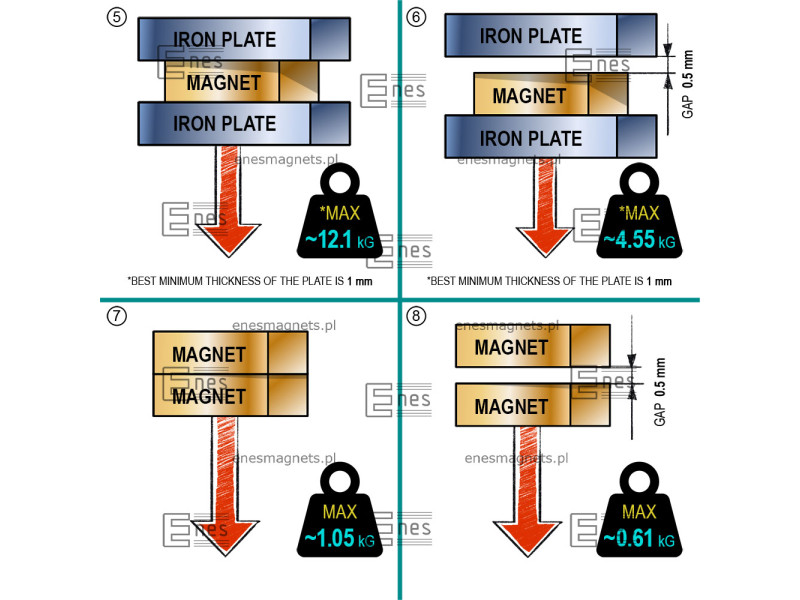

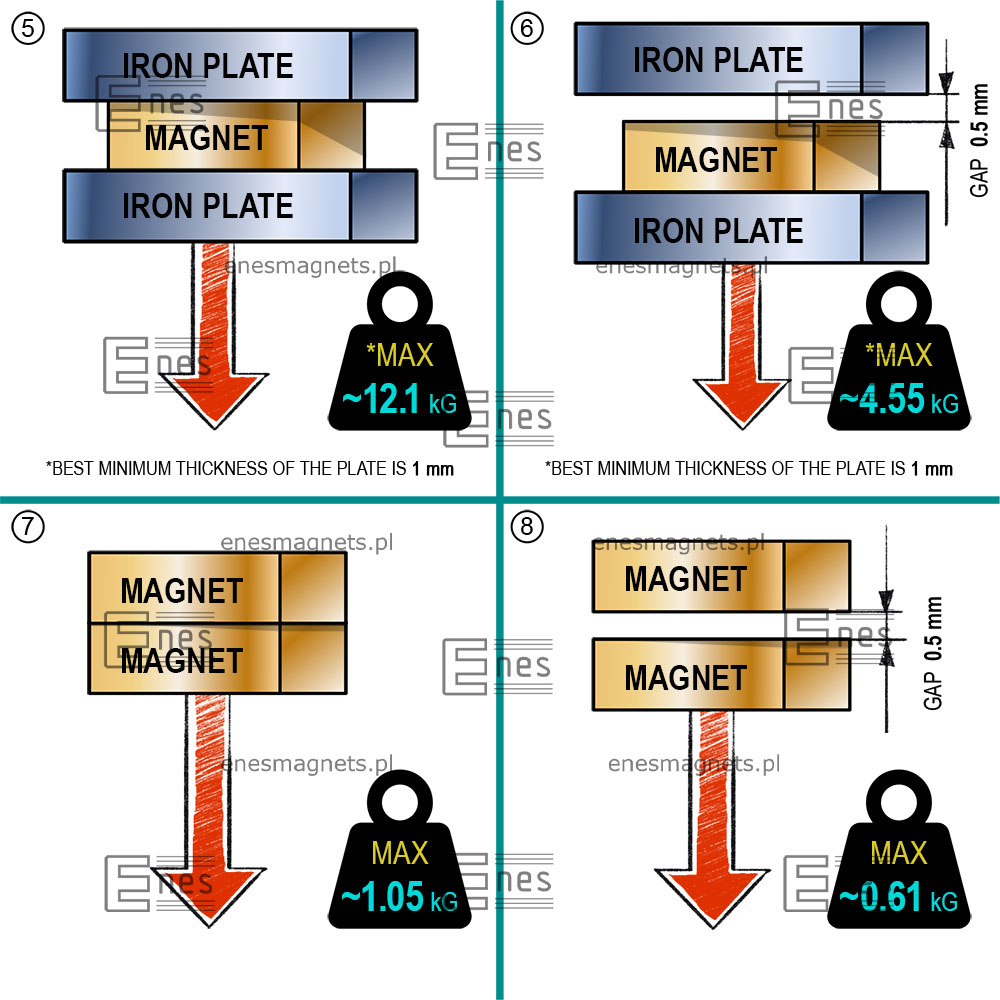

The magnetic force value given above, expressed in kilograms, was measured under ideal conditions. A thick iron plate with a smooth, unpainted surface was used. The force required to detach the magnet from the plate was perpendicular to the plate.
do not use in water
Sintered neodymium magnets are brittle (fragile). A neodymium magnet without housing could break after an impact with another strong magnet.
The magnet parameter values presented here are the result of measurements taken on one specific magnet and are used to compare magnets available in the online shop. We recommend testing the magnet yourself under the expected operating conditions.
Physical properties
Density |
~7,5 [g/cm3] |
Vickers’ hardness (HV) |
~600 [kg/mm2] |
Resistivity |
~144 [uOhm x cm] |
If you require neodymium magnets manufactured to strict specifications, please send us your enquiry along with your requirements.
30x10x1/N38 - Neodymium magnet
This is a long and thin block magnet. It is rectangular in shape.
It is a neodymium magnet, magnetised along the height. It has two poles, which means it is double-sided. It has been protected against corrosion by nickel plating. It has been manufactured accordnig to excellent dimensional tolerances. The maximum operating temperature is no more than 80 degrees Celsius. Neodymium magnets stick to metal surface. You can attached magnet to surfaces made of ferromagnetic materials. This magnet is strong for its dimensions.
MPL30X10X1N38_3M467MP
8060 Items
