Manufacturer
Enes Magnesy
External diameter
280 [mm]
Height
50 [mm]
Magnet type
Neodymium
Maximum magnetic field over the middle poles
0,75 [T]
Flow surface
304,6 [cm2]
Number of magnetic bars
Maximum working temperature
≤ 80 [°C]
Housing
stainless steel, AISI 304 / EN 1.4301, approved for contact with food
one-level
yes
Przesypowy
yes
Weight
3.8 [kg]
Performance parameters
Separation magnetic grates are used for catching magnetically soft elements (iron filings, bolts, etc.) from loose materials (powders, granulated products, grains). They may be of use in food industry (stainless steel, AISI 304 / EN 1.4301, approved for contact with food housing), as well as in plastics processing, ceramic an many other branches of industry.

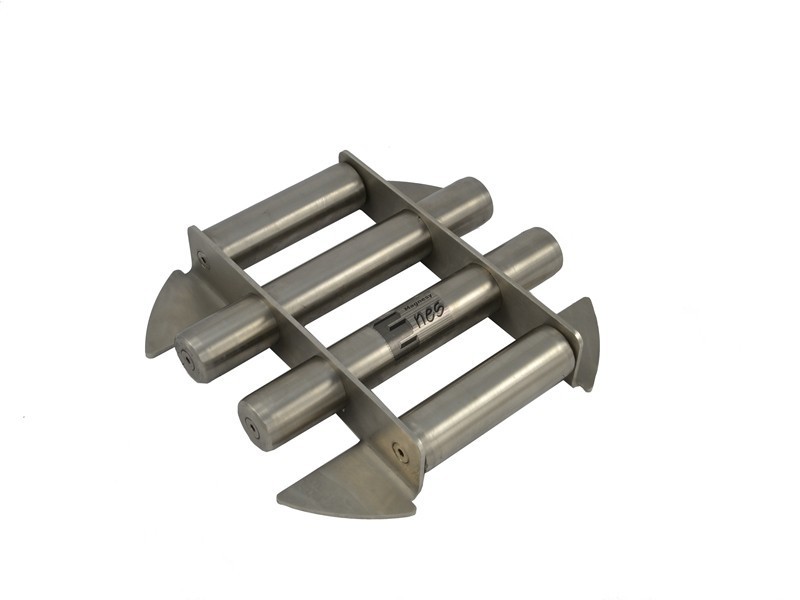

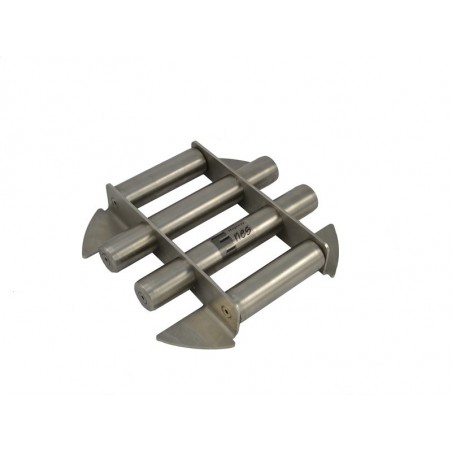

Magnetic grate made of acid-proof steel contains a magnetic system assembled with neodymium magnets. It is a surface of the four incorporated into the separator magnetic filter bars of 32 mm in diameter which is magnetically active.
On commission we are ready to provide magnetic separators with dimensions chosen by Clients. Magnetic parameters, range of activity and dimensions are adjusted according to Client needs and expectations.
Magnetic field over midpoles on surface of protection tube of the magnetic filter bar is min. 0,750 [T].
In the magnetic grate sintered neodymium magnets were used.
Max. working temperature for the magnetic grates with neodymium magnets is approx. 80°[C].
The item is not waterproof. It should not be used in contact with water (and other water-based liquids) or in high humidity environment.
We make waterproof grates on request - please send us the inquiries.
Caution! A careless handling can cause serious injury to hands !
Weight: ~3,8 [kg]
